WARNING: FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious injury, death, or property damage.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Leave the building immediately
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
This appliance may be installed in an aftermarket, permanently located, manufactured home
(USA only) or mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. A conversion
kit is supplied with the appliance.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Travis Industries, Inc.
Copyright 2019, T.I.

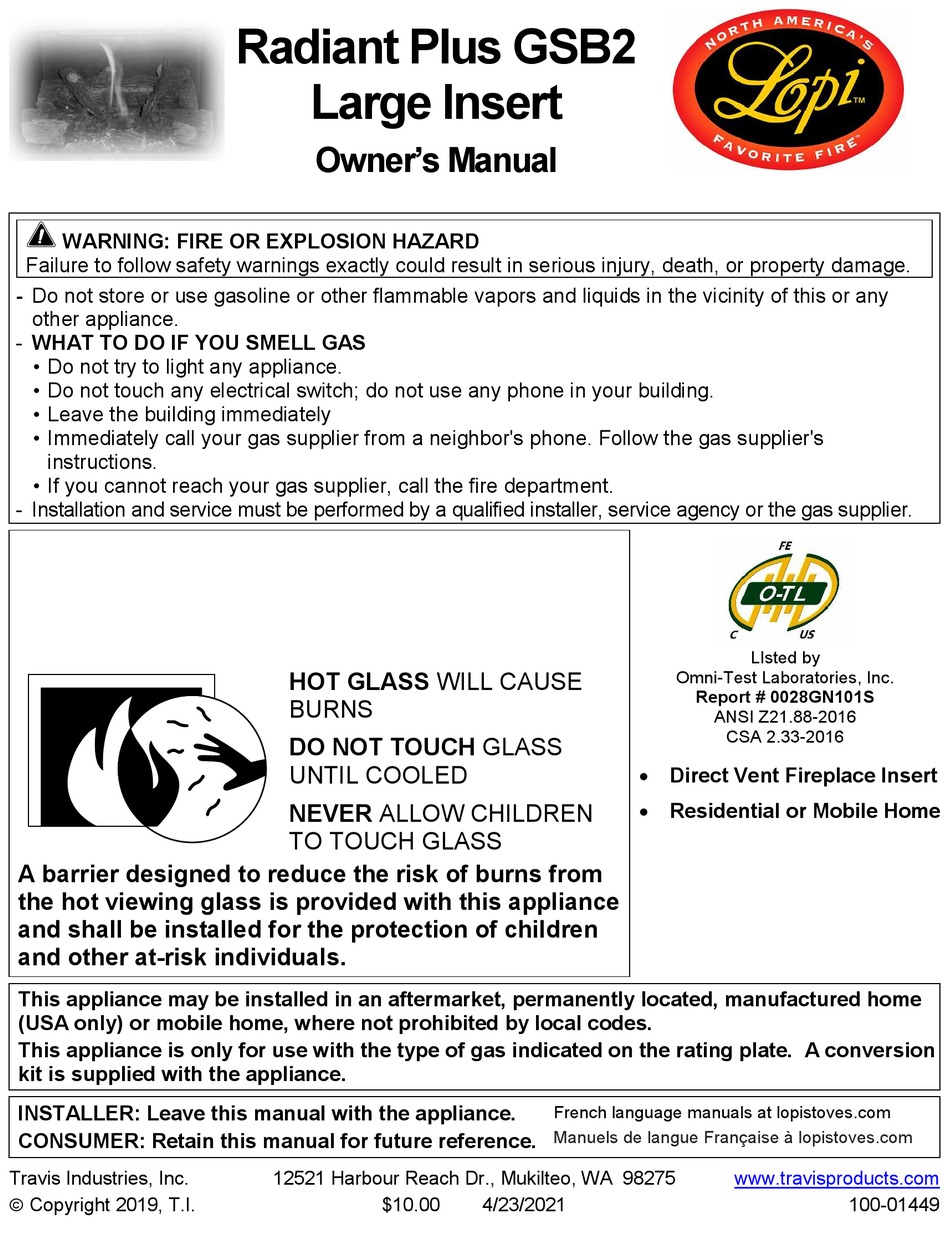

Radiant Plus GSB2
Large Insert
Owner's Manual
HOT GLASS WILL CAUSE
BURNS
DO NOT TOUCH GLASS
UNTIL COOLED
NEVER ALLOW CHILDREN
TO TOUCH GLASS
12521 Harbour Reach Dr., Mukilteo, WA 98275
$10.00
Direct Vent Fireplace Insert
Residential or Mobile Home
French language manuals at lopistoves.com
Manuels de langue Française à lopistoves.com
4/23/2021
LIsted by
Omni-Test Laboratories, Inc.
Report # 0028GN101S
ANSI Z21.88-2016
CSA 2.33-2016
www.travisproducts.com
100-01449
Advertisement
Table of Contents
Related Manuals for Lopi Radiant Plus GSB2
Summary of Contents for Lopi Radiant Plus GSB2
- Page 1 Radiant Plus GSB2 Large Insert Owner’s Manual WARNING: FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, death, or property damage. - Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
-
Page 2: Introduction
To receive full warranty coverage, you will need to show evidence of the date you Model: Radiant Plus GSB2 Large purchased your heater. Serial Number: We suggest that you attach your Bill of Sale Purchase Date:... -
Page 3: Table Of Contents
Table of Contents Introduction ............2 Glass Frame Removal and Installation ..23 Important Information ........2 Glass Frame Removal and Installation (continued) ............. 24 Listing Details ........... 2 Face Installation ..........25 Features ............6 Log Installation ..........26 Installation Options .......... - Page 4 Safety Precautions Failure to follow all of the requirements may result in property damage, bodily injury, or even death. Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young children and others may be susceptible to accidental contact burns.
- Page 5 Safety Precautions Safety Warnings (continued) Because this heater can be controlled by a thermostat there is a possibility of the heater turning on and igniting any items placed on or near the appliance. Light the heater using the built-in igniter. Do not use matches or any other external device to light your heater.
-
Page 6: Features
Features and Specifications Features Installation Options Works During Power Outages Residential or Mobile Home (battery backup system) Fireplace Insert Blower Optional Masonry or Factory Built (Metal) Wood-Burning Standing or Intermittent Pilot Fireplace Convenient Operating Controls Natural Gas or Propane Variable-Rate Heat Output Heating Specifications Natural Gas... -
Page 7: Installation Warnings
Installation (for qualified installers only) Installation Warnings Failure to follow all of the requirements may result in property damage, bodily injury, or even death. This heater must be installed by a qualified installer who has gone through a training program for the installation of direct vent gas appliances. ... -
Page 8: Fireplace Requirements
Installation (for qualified installers only) Fireplace Requirements Insert must be placed within a code-conforming masonry fireplace or tested and listed factory- built (metal) wood-burning fireplace. Repair any fireplace damage prior to installation. Because the insert may use an optional circulation blower, clean the fireplace, smoke shelf, and chimney prior to installation. -
Page 9: Factory-Built (Metal) Wood-Burning Fireplace Requirements
Installation (for qualified installers only) Factory-Built (Metal) Wood-Burning Fireplace Requirements The damper ("A") and grate (with log set) ("B") must be removed (see the illustration below). The smoke shelf ("C"), internal baffles ("D"), screen ("E"), masonry lining or refractory ("G" & "I"), and metal or glass doors ("F") may be removed (if applicable). -
Page 10: Leveling Legs
Installation (for qualified installers only) Leveling Legs This heater includes front and rear leveling legs to accommodate fireplaces with a step-down firebox. Electrical Requirements Route the power cord out in front of the appliance. Plug the power cord into a grounded 120 Volt outlet (do not remove the grounding pin). ... -
Page 11: Clearances
Installation (for qualified installers only) Clearances Due to the high temperature of the heater, it should be located out of traffic and away from furniture and draperies. Minimum Clearances k Sidewall to Insert 5” (127mm) l Side Facing (non-combustible) 5” (127mm) m Top Facing*(non-combustible) 38”... -
Page 12: Televisions Placed Above The Insert
Installation (for qualified installers only) Televisions Placed Above the Insert The following section gives guidelines to place a television above the insert. IMPORTANT NOTE REGARDING TELEVISIONS AND THIS INSERT Most television manufacturers instruct the homeowner not to place the television above a heat source like this insert. Doing so may decrease the longevity of the television and negate the warranty. -
Page 13: Gas Line Requirements
Installation (for qualified installers only) Gas Line Requirements MASSACHUSETTS INSTALLATIONS - WARNING: THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN THE COMMONWEALTH OF MASSACHUSETTS. OTHER MASSACHUSETTS CODE REQUIREMENTS: Flexible connector must not be longer than 36 inches. ... -
Page 14: Vent Requirements
Installation (for qualified installers only) Vent Requirements Travis Industries manufactures a vent kit specifically for this insert (sku 96200330). It includes 30’ (10M) of vent, hose clamps, and a prairie cap. The flashing on the cap is 18” (458mm) by 18” (458mm). ... -
Page 15: Vent Restrictor
Installation (for qualified installers only) Vent Restrictor WARNING: Restrictor adjustment should only be done by a qualified installer. Most installations do not require vent restrictor adjustment. Only those installations determined to be over-drafting require adjustment. The best indication of over-drafting is a hyper-active flame pattern (flames move too quickly). -
Page 16: Vent Installation
Installation (for qualified installers only) Vent Installation Secure the vent to the fireplace insert and termination kit using screws. Vent Location © Travis Industries 4/23/2021 - 1449 Radiant Large GSB2... -
Page 17: Vent Configurations
Installation (for qualified installers only) Vent Configurations CAUTION: The “Exhaust Only Re-line” is not covered under the appliance safety standard (ANSI Z21.88 CSA ) used in the safety certification of this appliance. The safety certification does not apply to this installation. 2.33 Before installing the appliance using this method, contact the Authority Having Jurisdiction to determine if this installation is acceptable in your area. -
Page 18: Vent Connector Removal And Installation
Installation (for qualified installers only) Vent Connector Removal and Installation The vent connector is shipped attached to the insert, but may be removed to facilitate tight installations. See the directions below for installation. 1. Route the flex vent through the chimney from above (leave an extra 3' at the top). Make sure the flex is thoroughly stretched. -
Page 19: Vent Connector Removal And Installation (Continued)
Installation (for qualified installers only) Vent Connector Removal and Installation (continued) The vent connector slides back and disengages from the three tabs on top of the insert. Connect the flex vent (exhaust and intake) to the vent connector (use self-drilling screws or hose clamps). “I”... - Page 20 Installation (for qualified installers only) The vent connector, when hanging from the chimney, may be grasped by reaching above the insert. Carefully move the connector forward, making sure all 3 tabs insert through the connector. Secure the vent connector to the insert using the screw removed earlier. ©...
- Page 21 Installation (for qualified installers only) Horizontal Termination DuraVent manufactures a vent kit for horizontal that allows for terminating horizontally when installed in a masonry fireplace (not for use with ZC fireplaces). The DuraVent kit (46DVA-HCL33 and 46DVA HCL34) is approved for use with Travis Industries gas inserts. These kits can be purchased from your Travis Industries dealer.
-
Page 22: Surround Panel Installation
Installation (for qualified installers only) Surround Panel Installation NOTE: The insert may be installed without surround panels. PANEL SIZE HEIGHT WIDTH PART # Small 30-1/2” 42” 96100562 Large 34” 44” 96100563 1. The insert should be in position with gas line and flue and intake connections attached, but pulled out slightly to allow panel installation. -
Page 23: Glass Frame Removal And Installation
Finalizing the Installation Glass Frame Removal and Installation The appliance must be completely cool before removing the glass. Do not strike or slam the glass. © Travis Industries 4/23/2021 - 1449 Radiant Large GSB2... -
Page 24: Glass Frame Removal And Installation (Continued)
Finalizing the Installation Glass Frame Removal and Installation (continued) The glass latch can come loose from the glass frame. This occurs when the latch is turned 1/8 turn when disengaged from the unit. Follow the directions below to re-install the latch if it comes loose. ©... -
Page 25: Face Installation
Finalizing the Installation Face Installation A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be installed for the protection of children and other at-risk individuals. If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this appliance. -
Page 26: Log Installation
Finalizing the Installation Log Installation The logs are fragile, especially after being exposed to heat. Make sure the gas control valve is “OFF” and the heater is cool prior to conducting service. Failure to position the parts in accordance with diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. - Page 27 Finalizing the Installation The left log has two holes on the bottom. Place the log so the holes fit over the two mounting studs on the left log stand. The right log has two holes on the bottom. Place the log so the holes fit over the two mounting studs on the right log stand.
- Page 28 Finalizing the Installation The left cross log has one hole on the bottom. Place the log so the hole fits over the left pin on the rear log. The front of the log rests on the left log (see picture for orientation). The right cross log has one hole on the bottom.
-
Page 29: Rock Wool Placement
Finalizing the Installation Two twigs are included for the front of the firebox. Place them at the front of the firebox as shown below (do not place them over any burner holes). Rock Wool Placement The included rock wool is placed on top of the burner to enhance the glow from the burner. The rock wool works best when it is applied in a very thin, porous layer. -
Page 30: Steps For Finalizing The Installation
Finalizing the Installation Steps for Finalizing the Installation 1. Remove the glass (see page 23). NOTE: If using propane (LP) convert the appliance prior to installing the media. 2. We recommend you purge the gas line at this time (with the glass removed). This allows gas to be detected once it enters the firebox, ensuring gas does not build up. -
Page 31: Air Shutter Adjustment
Finalizing the Installation 6. Replace the glass. 7. Start the heater. 8. Leak test all gas joints. 9. Check the air shutter following the directions below. Air Shutter Adjustment Let the heater burn for fifteen minutes (make sure the media and glass are in place). The flames should be yellow with no sooting. -
Page 32: Before You Begin
Operation Before You Begin Read this entire manual before you use your new heater (especially the section "Safety Precautions" on pages 4 & 5). Failure to follow the instructions may result in property damage, bodily injury, or even death. Turn off the main gas supply to the appliance during appliance installation or maintenance. -
Page 33: Starting The Heater For The First Time
Operation Starting the Heater for the First Time Burn the heater at a high setting with the blower off for an extended period (up to 48 hours). This will cure the painted surfaces. Fumes from the paint curing and oil burning off the steel will occur. This is normal. -
Page 34: Adjusting The Blower Speed (Optional)
Operation Adjusting the Blower Speed (Optional) The optional blower helps transfer heat from the heater into the room. It will not turn on until the heater is up to temperature (approximately 10 minutes after starting). See the illustration below for instructions on adjusting the blower speed. -
Page 35: Pilot Fuel Conservation Timer
Operation Pilot Fuel Conservation Timer 7 Day Pilot Shutoff Timer (applies to units in CPI mode only) This appliance may be equipped with a 7 day pilot shutoff timer. This timer helps conserve fuel and save money by turning the pilot off when the appliance is not used for 7 days (this timer is mandated in certain areas for conservation purposes). -
Page 36: Normal Operating Sounds
Operation Normal Operating Sounds Normal Operating Odors This appliance has several areas that reach high temperatures. Dust or other particles on these areas may burn and create an odor. This is normal during start-up. You may notice the smell is more acute if the appliance was left idle for a long period. -
Page 37: Maintaining Your Heater's Appearance
Maintenance DANGER HIGH VOLTAGE: Disconnect power before attempting maintenance or repair. Maintaining Your Heater's Appearance The appliance must be completely cool prior to conducting service. Cleaning The Glass The glass may be cleaned with a non- abrasive cleaner. To clean the inside of the glass, simply remove the glass frame, place it on a non-scratching surface, and clean the surface. -
Page 38: Yearly Service Procedure
Maintenance Yearly Service Procedure WARNING: Failure to inspect and maintain the stove may lead to improper combustion and a potentially dangerous situation. We recommend the following procedures be done by a qualified technician. Shut off gas to the fireplace and let it cool for 15 minutes. Remove the glass. Inspect and operate the pressure relief mechanism to verify relief mechanisms are free from obstruction to operate. -
Page 39: Troubleshooting Table
Maintenance Troubleshooting Table Problem: Possible Cause: Don't Call for Service Until You: The ON/OFF switch is turned to "OFF" Turn the ON/OFF switch to "ON" Main Burners Will The remote control is not working correctly See the remote control instructions Not Start The thermostat is disconnected or set too low See "Thermostat Operation"... -
Page 40: Wiring Diagram
Maintenance Wiring Diagram Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. © Travis Industries 4/23/2021 - 1449 Radiant Large GSB2... -
Page 41: Safety Label
Safety Label Safety Label The safety (listing) label is attached to the operating tag (chained to the heater near the gas control valve). A copy is shown below © Travis Industries 4/23/2021 - 1449 Radiant Large GSB2... -
Page 42: Conditions & Exclusions
Limted 7 Year Warranty Register your TRAVIS INDUSTRIES, INC. Limited 7 Year Warranty online at traviswarranty.com. TRAVIS INDUSTRIES, INC. warrants this gas appliance (appliance is defined as the equipment manufactured by Travis Industries, Inc.) to be defect-free in material and workmanship to the original purchaser from the date of purchase as follows: Check with your dealer in advance for any costs to you when arranging a warranty call. -
Page 43: Lp (Propane) Conversion Instructions
Optional Equipment for qualified installers only) LP (Propane) Conversion Instructions WARNING This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explosion or production of carbon monoxide may result causing property damage, personal injury or loss of life. - Page 44 Optional Equipment for qualified installers only) 4. Remove the burner and place it aside. 5. Install the LP (propane) pilot orifice following the instructions below. (a) Use a 7/16” open-end wrench to remove the pilot hood. (b) Remove and discard the Natural Gas (NG) orifice. Place the LP orifice in the pilot assembly then replace the pilot hood, tightening the pilot hood until it is snug (do not over-tighten).
- Page 45 Optional Equipment for qualified installers only) 8. Replace the regulator following the instructions included with the regulator kit. Remove and discard the screws (see “a” below) holding the stock regulator in place (see “b” below). Remove the stock regulator and gasket (see “c” below). Place the LP regulator in place, making sure the pre-fitted gasket (see”c”...
-
Page 46: Optional Firebacks
Optional Equipment for qualified installers only) Optional Firebacks WARNING Turn off gas to the appliance and make sure it has fully cooled prior to conducting service. Remove the glass frame and logs (see the manual for details). Remove the fireback clips and install the rear fireback following the directions to the right. -
Page 47: Optional Remote Thermostat
Optional Equipment for qualified installers only) Optional Remote Thermostat If Using the Optional Blower, Install it First The optional blower should be installed before installing the remote. Disconnect the power cord Molex connector from the Electronic Controls Assembly. GSB2 units require the electronic controls assembly (IFC) to be removed to allow access to the wiring and controls. - Page 48 Optional Equipment for qualified installers only) Loosen the two screws that hold the heat shield on the Electronic Controls Assembly and lift the front of the heatshield until you can disengage the rear leg of the heat shield from the back of the Electronic Controls Assembly .
- Page 49 Optional Equipment for qualified installers only) Install and screw the receiver to the Electronic Controls Assembly housing using the two Philips head screws that were removed in the previous step. Connect the Molex connector from the receiver to the Molex connector disconnected in the previous step. Remove the green and white wires from the back of the burner ON/OFF switch and attach them to the green and white wires coming from the back of the receiver.
-
Page 50: Optional Blower
Optional Equipment for qualified installers only) Remove the switch from the bracket and replace it with the blank that is included with this kit. To remove the switch squeeze the tabs on the top and bottom of the switch while pushing on the back side of the switch. - Page 51 Optional Equipment for qualified installers only) © Travis Industries 4/23/2021 - 1449 Radiant Large GSB2...
- Page 52 Index Additional Items Required ........7 Log Installation ..........26 Before You Begin ..........32 LP Conversion Instructions ......43 Clearances ............11 Maintaining Your Heater's Appearance ... 37 Continuous/Intermittent Pilot Switch ....34 Normal Operating Odors ........36 Dimensions............6 Normal Operating Sounds .......
