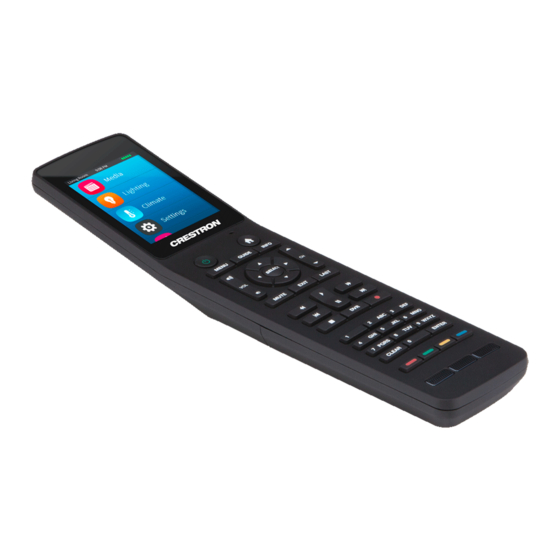

Crestron TSR-302
Handheld Touch Screen Remote
Configuration Guide

Advertisement

Table of Contents
loading

Related Manuals for Crestron TSR-302

Summary of Contents for Crestron TSR-302

  • Page 1 Crestron TSR-302 Handheld Touch Screen Remote Configuration Guide...
  • Page 2 Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.

  • Page 3: Table Of Contents

    Crestron TSR-302 Handheld Touch Screen Remote Contents Handheld Touch Screen Remote: TSR-302 Access the Setup Screens ......................1 Configure the TSR-302 ......................3 RF Setup ........................3 Audio Setup ......................... 8 Display Setup ......................8 Timeouts ........................9 WiFi Setup ......................... 10 Diagnostics ........................

  • Page 5: Handheld Touch Screen Remote: Tsr-302

    Access the Setup Screens ® The main menu is the starting point for configuring the TSR-302 from Crestron NOTE: If no project has been loaded or if an invalid project has been loaded, the TSR-302 defaults to a screen that allows access to the main menu.
  • Page 6 Timeouts, WiFi Setup, and Diagnostics buttons. In addition, there is a button that toggles on-screen messages on and off, a button that provides information about the TSR-302, and a Save & Exit button. The functions of each are detailed in the next section of this guide.

  • Page 7: Configure The Tsr-302

    The RF Setup screen shows the RF signal strength and has controls for enabling or disabling roaming. Before a TSR-302 can be used with a Crestron control system, it must first be acquired by a CEN(I)-ERFGW-POE Extended Range RF Wireless Gateway (sold separately).
  • Page 8 NOTE: The RF ID of the unit must match the RF ID specified in the SIMPL Windows program. For details, refer to Best Practices for Installation and Setup of Crestron RF Products (Doc. 6689) at www.crestron.com/manuals. 4 • Handheld Touch Screen Remote: TSR-302...
  • Page 9 RF Setup Menu (Gateway Roaming Enabled) Touch Gateway Roaming Setup to display the RF Roaming Setup menu. RF Roaming Setup Menu Touch RF Settings to access the RF Settings screen Configuration Guide – DOC. 7663A Handheld Touch Screen Remote: TSR-302 • 5...
  • Page 10 After making any desired settings, touch menu. Enable multiple gateways to acquire a TSR-302 by performing the following steps: NOTE: Only one gateway at a time can be in Acquire mode. Use a stylus or other thin-tipped object to press ACQUIRE on one of the gateways to enter Acquire mode.
  • Page 11 When the process is complete, the screen displays an “Acquire OK” message. Repeat steps 3 and 4 for any additional gateways to which the TSR-302 is to be acquired. Press ACQUIRE on the gateway to exit Acquire mode. The LED turns off.

  • Page 12: Audio Setup

    Master Volume controls. Touch to return to the main menu. Display Setup From the main menu, touch Display Setup to enter the Display Setup screen. Display Setup Screen 8 • Handheld Touch Screen Remote: TSR-302 Configuration Guide – DOC. 7663A...

  • Page 13: Timeouts

    The Standby Timeout menu provides controls to adjust the Standby timeout (from 0 to 120 seconds) and the Power Down timeout (from 0 to 240 seconds) for when the TSR-302 is undocked. There is also a Standby timeout control (from 0 to 120 seconds) for when the TSR-302 is docked.

  • Page 14: Wifi Setup

    WiFi Setup From the main menu, touch WiFi Setup, and then Add Access Point to display the Select Access Point menu. Select Access Point Menu 10 • Handheld Touch Screen Remote: TSR-302 Configuration Guide – DOC. 7663A...
  • Page 15 Select the appropriate type of encryption, and then touch to return to the Confirm Info menu. Touch the Password field and enter the password using the on-screen keyboard. Configuration Guide – DOC. 7663A Handheld Touch Screen Remote: TSR-302 • 11...
  • Page 16 Touch Save to save the password and return to the Confirm Info menu. Confirm Info Menu (After All Data Entry) Touch Make this my Access Point to confirm the entries and display the WAP Connect menu. 12 • Handheld Touch Screen Remote: TSR-302 Configuration Guide – DOC. 7663A...
  • Page 17 Handheld Touch Screen Remote WAP Connect Menu (While Connecting) WAP Connect Menu (Connected) Touch Done to accept the connection to the wireless access point and to display the WiFi Setup menu. Configuration Guide – DOC. 7663A Handheld Touch Screen Remote: TSR-302 • 13...
  • Page 18 Touch IP Settings to display the WiFi IP Settings menu. WiFi IP Settings Menu (DHCP On) 10. The TSR-302 ships with DHCP enabled by default. To use DHCP, touch repeatedly to return to the main menu. To enter static IP settings, touch Off under DHCP Enabled.
  • Page 19 11. Touch Set Static IP Address Settings to display the Static IPs menu. Static IPs Menu 12. Touch the Static IP address field to open an on-screen numeric keypad. Configuration Guide – DOC. 7663A Handheld Touch Screen Remote: TSR-302 • 15...

  • Page 20: Diagnostics

    16. Touch Reboot Required to Apply IP Changes to apply the entries and reboot the TSR-302. Diagnostics From the main menu, touch Diagnostics to display the Diagnostics menu. Diagnostics Menu 16 • Handheld Touch Screen Remote: TSR-302 Configuration Guide – DOC. 7663A...
  • Page 21 On the Diagnostics menu, touch Keypad Test to display the Keypad Test screen. Keypad Test Screen The Keypad Test screen contains 42 indicators that correspond to the 42 buttons on the TSR-302. The appropriate indicator lights to confirm operation of each pressed button. Configuration Guide – DOC. 7663A...
  • Page 22 On the Diagnostics menu, touch RF Test to display the RFI LQI Test screen. RF Test RFI LQI Test Screen The RFI LQI Test screen provides diagnostic information about the signals from the gateway. 18 • Handheld Touch Screen Remote: TSR-302 Configuration Guide – DOC. 7663A...
  • Page 23 On the Diagnostics menu, touch Mic Test to initiate a short recording via the built-in microphone. Mic Test Screen When the recording is complete, the TSR-302 plays it back. On the Diagnostics menu, touch Battery Diag to display the Battery screen. Battery Diag...
  • Page 24 On the Diagnostics menu, touch Dock Test to display the Dock screen. Dock Screen The Dock screen has an indicator to confirm that the TSR-302 is docked. The On and Off buttons enable or disable the dock alert message and chime that occurs when TSR-302 is docked.

  • Page 25: About

    ® The Rava Setup screen provides controls for testing the use of Crestron’s Rava Intercom with the TSR-302. Use this screen to configure the TSR-302 to make peer calls to another Rava-enabled device. Alternately, in SIP Server mode, the TSR-302 can be configured to connect to a SIP server.

  • Page 26: Save & Exit

    Save & Exit From the main menu, touch Save & Exit to save all settings, exit the setup menus, and return to the main project. 22 • Handheld Touch Screen Remote: TSR-302 Configuration Guide – DOC. 7663A...
  • Page 27 Crestron TSR-302 Handheld Touch Screen Remote This page is intentionally left blank. Configuration Guide – DOC. 7663A Handheld Touch Screen Remote: TSR-302 • 23...
  • Page 28 Crestron Electronics, Inc. Configuration Guide – DOC. 7663A (2040914) 15 Volvo Drive Rockleigh, NJ 07647 Tel: 888.CRESTRON 09.14 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
