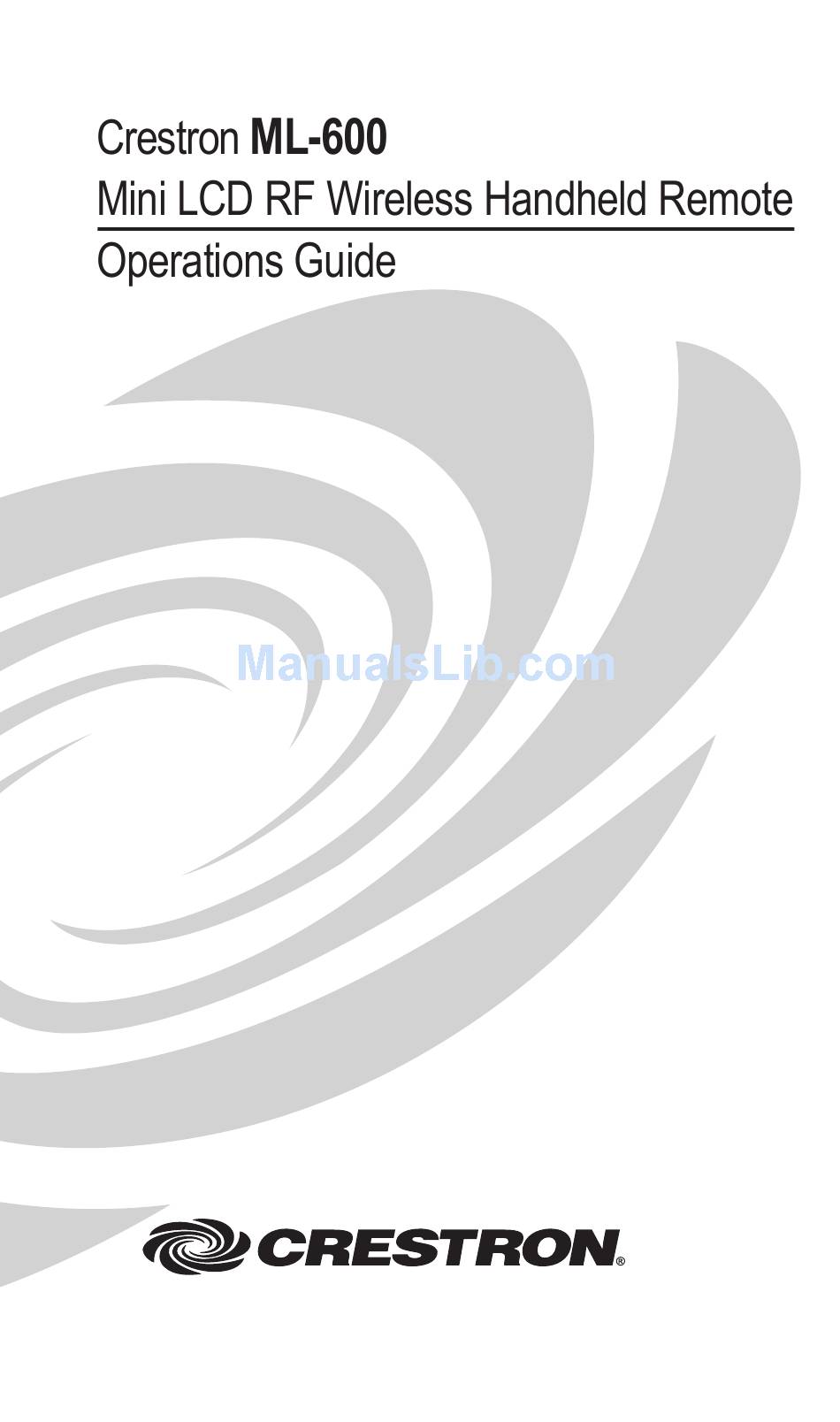

- Page 2 This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON All brand names, product names and trademarks are the property of their respective owners. ©2006 Crestron Electronics, Inc...
-
Page 3: Table Of Contents
Introduction ...1 Features and Functions ...1 Specifications... 2 Physical Description ... 2 Miscellaneous ... 8 Using the Backlight ... 8 Installing/Changing the Batteries ... 8 Adjusting the Display Contrast... 9 Cleaning the Screen ... 9 Problem Solving... 10 Troubleshooting... 10 Further Inquiries ... -
Page 5: Introduction
With a wireless range of up to 200 feet, the ML-600 can be used almost anywhere in a home or facility. The remote is powered by four AAA batteries (included). -
Page 6: Specifications
(with batteries) Physical Description The ML-600 (refer to the following illustrations) has a 2.10” x 1.40” (5.33 cm x 3.56 cm) LCD screen. The LCD screen lists the options associated with the 10 preprogrammed soft keys that flank the LCD screen. Three navigation keys are used to switch between control screens on the remote control. - Page 7 ML-600, Front View...
- Page 8 Physical Views of the ML-600 3.07 in (7.80 cm) 1.40 in (3.56 cm) 9.05 in (22.99 cm)
- Page 9 Menu System The ML-600 uses a menu to access all of the functions the remote is capable of performing. The menu has a MAIN section that can contain up to two pages. These main pages can list up to 19 groups of options. Depending on your remote’s configuration, each option can be a selection of a room, device, or system function.
-
Page 10: Navigation Keys
NOTE: The remote control is transmitting to the system when the displayed. The remote will not respond to a new button push while it is transmitting. Navigation Keys The three navigation keys located under the LCD are used to view the different pages in the menu system. -
Page 11: Using The Backlight
“Using the Backlight” on the following page. Programming Port Located on the left side of the remote, the programming port is used by a Crestron dealer to program the ML-600 for use with a Crestron system. Do not connect any... -
Page 12: Miscellaneous
If it is difficult to see the display or buttons when viewing the remote, the ML-600 backlight can be used to light up the display and buttons. Turn on the backlight by pressing the LIGHT button on the right side of the remote control. -
Page 13: Adjusting The Display Contrast
Crestron ML-600 Mini LCD RF Wireless Handheld Remote Adjusting the Display Contrast The LCD display’s contrast can be adjusted for optimal viewing. To make the display darker, press the UP button while holding the MAIN button. Refer to the following diagram. -
Page 14: Problem Solving
The table below provides corrective action for possible trouble situations. If further assistance is required, please contact the Crestron dealer that programmed your system. ML-600 Troubleshooting If after reviewing this Operations Guide for the ML-600, you cannot locate specific information or have questions, please contact your local Crestron dealer. -
Page 15: Industry Compliance
As of the date of manufacture, this unit has been tested and found to comply with specifications for CE marking. NOTE : This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
