DO GUIDE
TSR-302

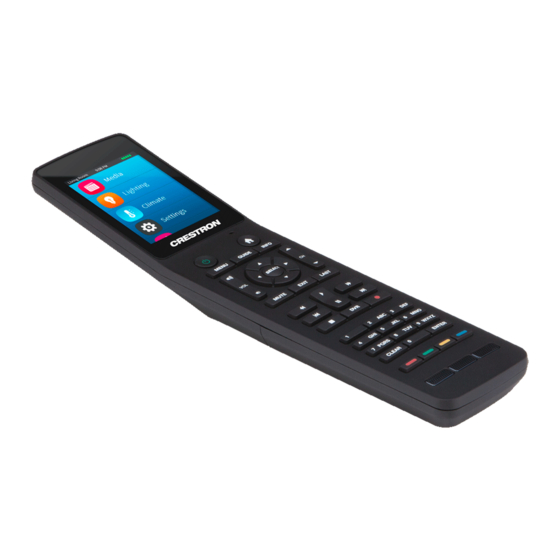

Handheld Touch Screen Remote

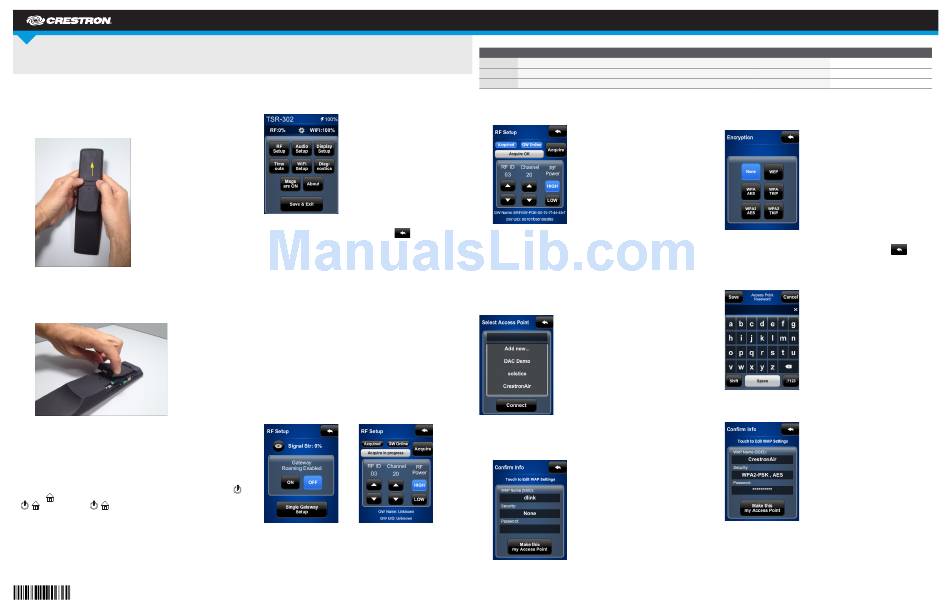

DO Install the Battery
To install the TSR-302-BTP, perform the following procedure:
1. Remove the battery compartment cover on the rear of the TSR-302
by using two thumbs and gently pressing in the direction of the arrow
shown in the following photograph.
2. Place the touch screen remote on a clean, soft surface, with the screen
side down.
3. Place the TSR-302-BTP in the battery compartment, oriented as in the
following photograph.
4. Reattach the battery compartment cover by pressing down lightly on
the locking tab, while sliding the cover into place.
Configure the Touch Screen Remote
DO
The main menu is the starting point for configuring the TSR-302 from
Crestron ® . If no project is loaded, touch the screen to access the main
menu. If a project is running, the main menu can be accessed by pressing
(Power), (Home), MENU, and GUIDE on the TSR-302 in sequence twice
( , , MENU, GUIDE, , , MENU, GUIDE) within a 5 second period.
The main menu can also be accessed via Crestron Toolbox™:
1. Establish communication with the TSR-302.
2. Right-click on the device and select Functions > Setup Mode.
3. Select Enter Setup Mode. The main menu is displayed, as shown in
the illustration below.
NOTE: Select Exit Setup Mode to exit the setup menu.
NOTE: From any of the setup menus, touch to go back to the
previous menu.
For details on configuring the TSR-302, refer to the TSR-302 Configuration
Guide (Doc. 7663) at www.crestron.com/manuals.
DO Set Up Basic Wireless
Before a TSR-302 can be used with a Crestron control system, it must
first be acquired by a CEN(I)-ERFGW-POE Extended Range RF Wireless
Gateway (sold separately).
To acquire a TSR-302, perform the following steps.
1. Use a stylus or other thin-tipped object to press ACQUIRE on
the CEN(I)-ERFGW-POE gateway to enter Acquire mode. The
accompanying LED illuminates, indicating the unit is ready to link with
the touch screen. (The gateway can also be put into Acquire mode via
Crestron Toolbox.)
2. From the main menu on the TSR-302, touch RF Setup to display the
RF Setup menu. Then place the TSR-302 in Acquire mode by touching
Acquire on the RF Setup menu. The screen displays an "Acquire in
progress" message and the TSR-302 is automatically acquired by the
gateway within 2 minutes.
DO Check the Box
QUANTITY PRODUCT
1 TSR-302-DS Table Dock for TSR-302
1 PW-1909WU Wall Mount Power Pack
1 TSR-302-BTP Battery Pack for TSR-302
3. When the process is complete, the screen displays an "Acquire OK"
message. Press ACQUIRE on the gateway to exit Acquire mode. The
LED turns off.
For information on wireless setup with roaming, refer to "Gateway Roaming
Setup" in the TSR-302 Configuration Guide (Doc. 7663).
DO Set Up WiFi
From the main menu, touch WiFi ® Setup and then Add Access Point to
display the Select Access Point menu.
If the desired wireless access point is already on the list, touch Connect.
Otherwise, perform the following steps to add a new access point.
1. Touch Add New to display the Confirm Info menu.
PART NUMBER
4520465
2041488
2039523
2. Touch the WAP Name (SSID) field to open an on-screen keyboard,
which can be used to enter the name.
3. Touch the Security field to display the Encryption screen.
4. Select the appropriate type of encryption, and then touch
return to the Confirm Info menu.
5. Touch the Password field to open an on-screen keyboard, which can
be used to enter the password.
6. Touch Save to save the password and return to the Confirm Info menu.
