UPER ERVER 1027R-72RFTP User's Manual

Outer Rails

Installing the Outer Rails to the Rack
1. Attach the shorter outer rail to the outside of the longer outer rail. You must
align the pins with the slides. Both bracket ends must face the same direction.
2. Adjust the outer rails so that they fit snugly within the rack.
3. Secure the longer outer rail to the front of the rackl with two screws
4. Secire the shorter outer rail to the rear rack with three screws.
5. Repeat steps 1-4 for the remaining outer rail.
Locking Tabs
Both chassis rails have a locking tab, which serves two functions. The first is to
lock the server into place when installed and pushed fully into the rack, which is
its normal position. Secondly, these tabs also lock the server in place when fully
extended from the rack. This prevents the server from coming completely out of
the rack when you pull it out for servicing.

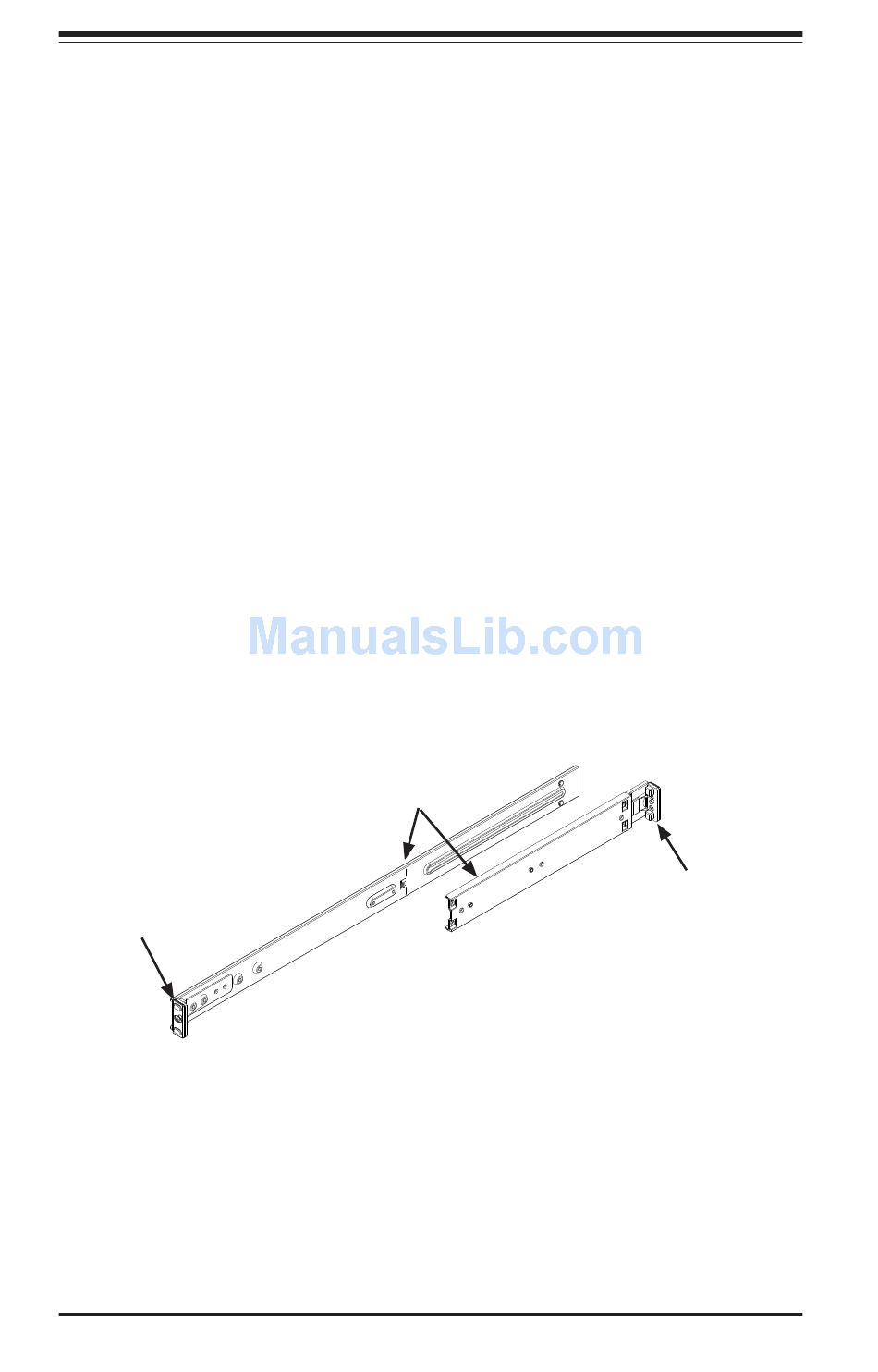

Secure to the
Front of the
Rack
Attach Outer Rails
Together
Figure 2-3. Assembling the Outer Rails
2-6
Secure to the
Rear of the Rack
