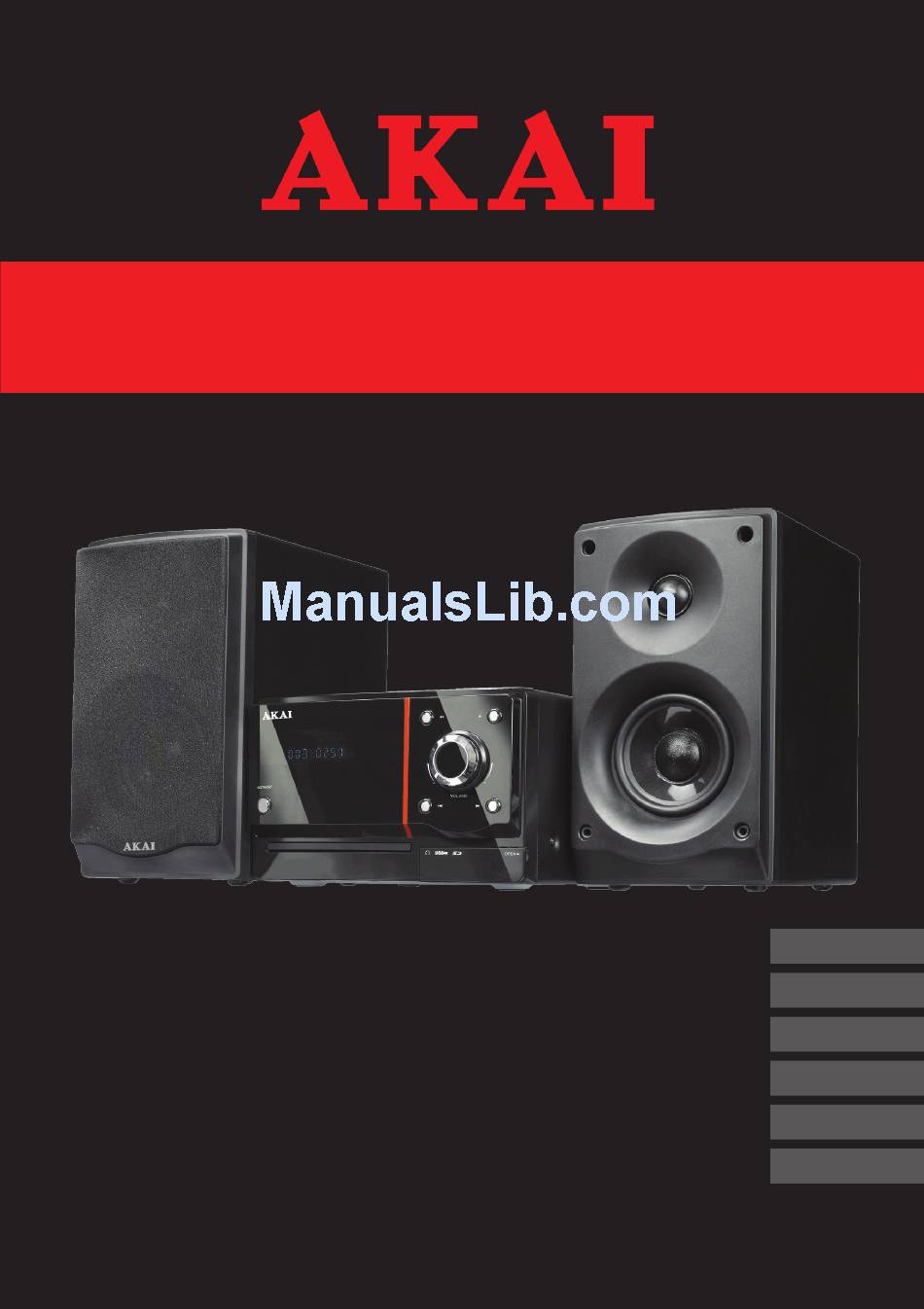

  • Page 1 Microset: Radio / DVD-player with USB-port and Cardreader AMD20 User manual NL 29 Gebruiksaanwijzing FR 57 Manuel de l’utilisateur ES 85 Manual de instrucciones DE 113 Gebrauchsanleitung Οδηγίες χρήσεως EL 144...

  • Page 2: Table Of Contents

    Table of contents Safety ................3 Intended use ..............3 Labels in this manual ............3 General safety instructions ..........4 Preparations for use ........... 4 Unpacking ................4 Package contents ............5 Installation ..............5 Installing the speakers .............6 Connecting random equipment ........7 Remote control..............9 Functions ..............

  • Page 3: Safety

    AMD20 Safety Intended use The DVD Micro System plays music from CDs and music, videos and photos from DVDs and USB. The appliance also plays photos from Kodak picture CDs. Read the manual carefully before the first use. Due to the great variety of products with external memory connection (USB, SD/MMC, etc.) and their sometimes quite...

  • Page 4: General Safety Instructions

    A note gives additional information, e.g. for a procedure. General safety instructions WARNING Do not put force on the appliance. The appliance can fall and can cause serious injury. CAUTION Do not spill any liquid on the appliance. WARNING Do not insert any objects in the ventilation holes. CAUTION Do not block the ventilation holes.

  • Page 5: Package Contents

    AMD20 We recommend that you retain the original carton and packing materials in case it ever becomes necessary to return your product for service. This is the only way to safely protect the product against damage in transit. If you do dispose of the carton and the packing materials, please remember to recycle with due care to the environment.

  • Page 6: Installing The Speakers

    This appliance is equipped with rubber feet to prevent it from moving. The feet are made from non-migrating material specially formulated to avoid leaving any marks or stains on furniture. However, certain types of furniture polishes, wood preservatives or cleaning sprays cause the rubber to soften and leave marks or a residue on the furniture, and potentially risk the surface to become damaged.

  • Page 7: Connecting Random Equipment

    AMD20 Connection to speakers ● Press the latches to open the terminals. Keep the latches depressed. ● Connect the wire ends to the speakers matching the (+) and (-) polarity markings. ● Release the latches to lock the wire ends.

  • Page 8: Video Connections

    Audio connections (input) ● Stereo audio: Connect a suitable cable to the R/L channels of the LINE IN connection. Audio connections (output) The appliance has the following audio outputs: ● Stereo audio: Connect a suitable cable to the R/L channels of the AUDIO OUT connection.

  • Page 9: Remote Control

    AMD20 Remote control Install batteries ● Remove the battery cover. ● Insert the batteries matching the (+) and (-) polarity markings. ● Re-install the battery cover. CAUTION Incorrect installation can cause battery leakage and corrosion which will damage the appliance. Corrosion, oxidation,...

  • Page 10: Functions

    Functions DVD Micro System Front panel Standby button Display Disc tray Remote sensor Headphone jack USB slot Memory card slot Cover for connection of external devices Previous track/chapter button 10 Next track/chapter button 11 Volume dial 12 Play/Pause button 13 Open/close button...

  • Page 11: Remote Control

    AMD20 AMD20 Back panel 14 Master power switch 6~16 ohm LINE INPUT Remote control General functions 15 Standby button 16 Digit buttons (0-10+) 17 SETUP button 18 VOLUME +/- button 19 Arrow buttons 20 SOUND EFFECT button (S.EFFECT) 21 USB button...

  • Page 12: Tuner Functions

    DVD functions 28 GO TO button 29 PLAYBACK CONTROL button (PBC) 30 PROGRAM button (PROG) 31 FWD button 32 REV button 33 TITLE button 34 AUDIO button 35 STEP button 36 A-B REPEAT button 37 REPEAT button 38 STOP button 39 ZOOM button 40 MENU button 41 SUBTITLE/AUTO button...

  • Page 13: Operation

    AMD20 Operation All functions of the appliance are accessible using the remote control. All instructions refer to operation with the remote control, unless indicated otherwise. Master power switch The appliance is equipped with a master power switch (14) located at the back panel.

  • Page 14: Radio Functions

    ● To select the tone (bass/treble), press the TONE button (22). To adjust the tone, press the VOL + button or the VOL - button (18). ● To switch between sound effects (concert/living/hall/bath/cave/arena/ church), press the S.EFFECT button (20). Press the button once again to exit this function.

  • Page 15: Dvd/Cd Functions

    AMD20 ● Select the DVD mode. Then select the correct function with the USB button (21). ● To start playback, press the PLAY/PAUSE button (46) once. ● For extended instructions, read the paragraph "SD/MMC functions" further on in this manual.

  • Page 16: Using The Program Function

    ● Normally, if an MP3 disc is loaded, the unit will take longer time to read the initial data. ● A DVD that does not match the region code cannot be read by this appliance. ● If a disc contains mixed content (e.g. MP3 and video files), the appliance will only recognise, list and play one content type.
  • Page 17 AMD20 ● Press the A-B REPEAT button again to select the ending point (B). The appliance plays the section repeatedly. ● To cancel the A-B REPEAT function, press the A-B REPEAT button again. The appliance will resume the normal playback.

  • Page 18: Radio Functions

    Using the Video CD playback function ● Press the PBC button (29) to switch on the playback function. ● Insert a Video CD. ● To start playback, press the PLAY/PAUSE button (46) once. ● Press the PBC button (29) to quit the playback and return to the main menu.

  • Page 19: Sd/Mmc Functions

    AMD20 During playback, the following functions are available: ● To select a track, press the PREV button (42) or the NEXT button (43) until the desired track is set. ● To pause playback, press the PLAY/PAUSE button (46) once; to resume playback, press the button again.
  • Page 20 ● Press the SETUP button (17). ● Press the arrow buttons (left and right) (19) to select a menu. The submenu is displayed directly. ● Press the arrow buttons (up and down) to enter the submenu. ● Press the ENTER button (24) to select a setting, or the left arrow button to cancel the selection.
  • Page 21 AMD20 Digital audio setup DIGITAL OUTPUT ● Select SPDIF OFF to switch off the digital audio signal output. ● Select SPDIF RAW to set the digital audio signal output to its raw format (DTS/Dolby Digital 5.1). ● Select SPDIF PCM to set the digital audio signal output to PCM format.
  • Page 22 ● The composite video output is the default setting for video output. ● If the video output results in a poor image, then press the V-Mode button (26) until the image is good. COLOUR SETTING ● SHARPNESS: Adjust the screen sharpness. ●...

  • Page 23: Cleaning And Maintenance

    AMD20 DEFAULT ● Restore the default settings of the appliance. Password setup page ● PASSWORD MODE: Switch the password function on or off. Enter the correct password to switch the mode on or off. ● PASSWORD: Change the default password. Enter the current password in the first box.

  • Page 24: Troubleshooting

    Troubleshooting Trouble Action No sound or incomplete audio Check if the random equipment are switched on and set correctly. Check cables for connection problems. Check if the correct source is selected. Check volume or mute setting. No power Check if the power cord has been properly connected to the power outlet.

  • Page 25: Usb Playback

    AMD20 Remove the disc and leave the appliance powered on for one or two hours. No sound or incomplete audio Select another audio track. During SCAN, SLOW MOTION or SINGLE STEP the sound is muted. No scan or skip possible Some discs are programmed to refuse user action at certain sections.

  • Page 26: Technical Data

    Trouble Action No sound on the unit system. Input source is low. Increase the volume level on the audio source device. No picture Check if the TV is switched on and set to the correct A/V input. Check cables for connection problems. Check cables for damage.

  • Page 27: Speaker System

    AMD20 Disc output Parameter Value Laser type Semiconductor Signal/noise ratio > 80 dB (1 kHz) Frequency range ≥ 70 dB (1 kHz) Distortion ≤ -60 dB (1 kHz) Wow and flutter Below the limit of the appliance Television system PAL/NTSC...

  • Page 28: Disposal Of Used Electrical And Electronic Equipment

    For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. For more information and warranty conditions, please visit: www.akai.eu...
