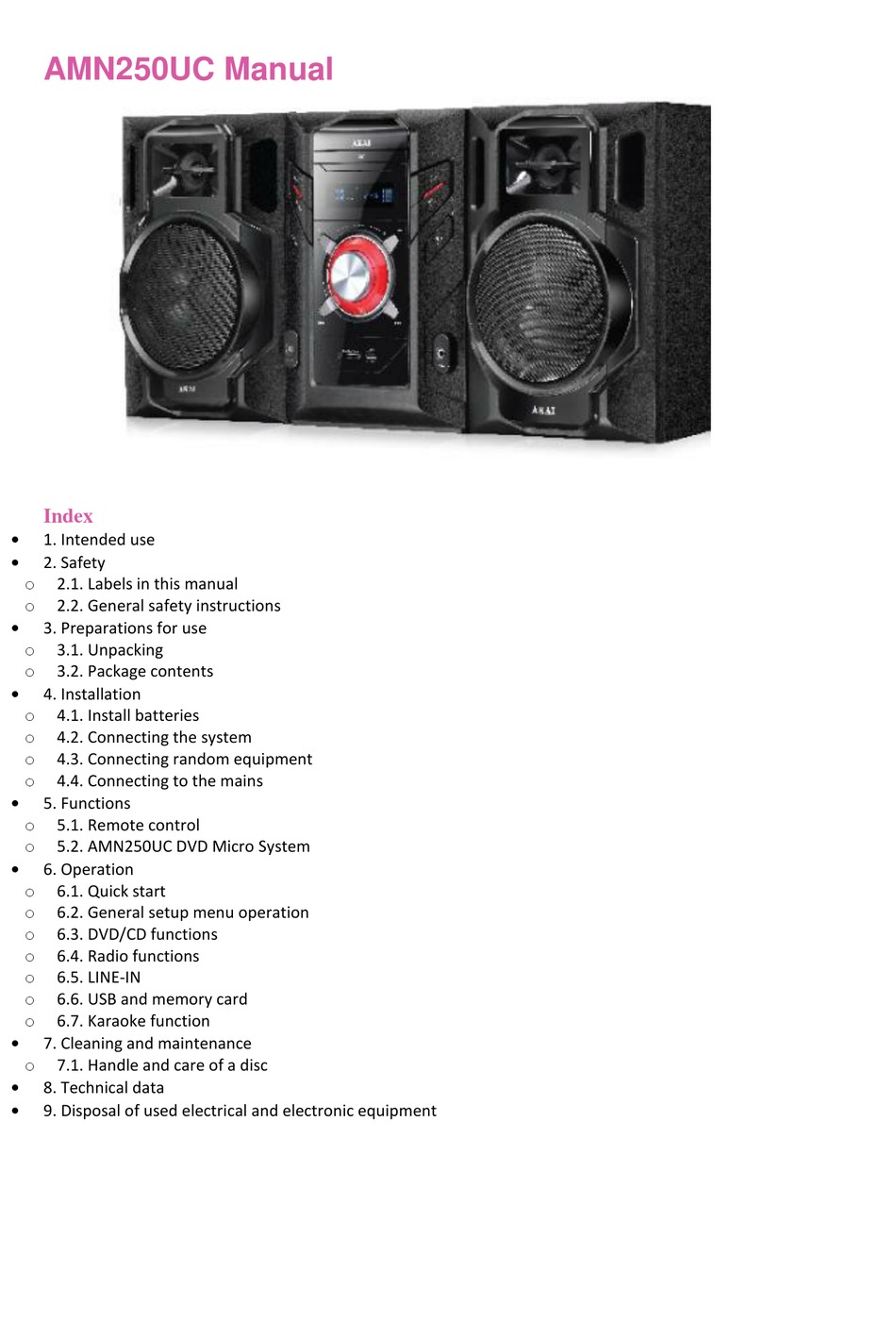

AMN250UC Manual
Index
1. Intended use
2. Safety
o
2.1. Labels in this manual
o
2.2. General safety instructions
3. Preparations for use
o
3.1. Unpacking
o
3.2. Package contents
4. Installation
o
4.1. Install batteries
o
4.2. Connecting the system
o
4.3. Connecting random equipment
o
4.4. Connecting to the mains
5. Functions
o
5.1. Remote control
o
5.2. AMN250UC DVD Micro System
6. Operation
o
6.1. Quick start
o
6.2. General setup menu operation
o
6.3. DVD/CD functions
o
6.4. Radio functions
o
6.5. LINE-IN
o
6.6. USB and memory card
o
6.7. Karaoke function
7. Cleaning and maintenance
o
7.1. Handle and care of a disc
8. Technical data
9. Disposal of used electrical and electronic equipment
Advertisement
Table of Contents
Related Manuals for Akai AMN250UC
Summary of Contents for Akai AMN250UC
- Page 1 4.2. Connecting the system 4.3. Connecting random equipment 4.4. Connecting to the mains 5. Functions 5.1. Remote control 5.2. AMN250UC DVD Micro System 6. Operation 6.1. Quick start 6.2. General setup menu operation 6.3. DVD/CD functions 6.4. Radio functions 6.5.
-
Page 2: Intended Use
1. Intended use The DVD Micro System plays music from CDs and music, videos and photos from DVDs and USB. The appliance also plays photos from Kodak picture CDs. Read the manual carefully before the first use. DVDs and DVD appliances are manufactured under the worldwide agreed DVD regional code system that the appliance will operate only with corresponding disc of the same regional code. -
Page 3: Labels In This Manual
2. Safety 2.1. Labels in this manual WARNING A warning means that injury or death is possible if the instructions are not obeyed. CAUTION A caution means that damage to the equipment is possible. A note gives additional information, e.g. for a procedure. 2.2. -
Page 4: Preparations For Use
If you do dispose of the carton and the packing materials, please remember to recycle with due care to the environment. 3.2. Package contents The following items are included in the received package: 1x AMN250UC DVD Micro System 2 x Speaker 1 x Remote control 2 x Batteries (AAA) -
Page 5: Installation
4. Installation 4.1. Install batteries Install batteries Remove the battery cover. Insert the batteries matching the (+) and (-) polarity markings. CAUTION Incorrect installation can cause battery leakage and corrosion which will damage the appliance. Corrosion, oxidation, battery leakage and any other gradually acidic defect of this nature will invalidate the guarantee. -
Page 6: Connecting Random Equipment
4.3. Connecting random equipment Connect the tv Use one of the cables as presented in the image below. To connect the aerial to the appliance: Insert an FM aerial or a suitable cable into the connection. - Page 7 4.4. Connecting to the mains Connect the appliance to the mains. Switch on the appliance.
-
Page 8: Functions
5. Functions 5.1. Remote control 1. STANDBY button 2. Digit buttons 3. GOTO button 4. SETUP button 5. PBC button 6. PROGRAM button 7. VOLUME button (+/-) 8. FAST FORWARD button 9. FAST REWIND button 10. TITLE button 11. Arrow buttons 12. - Page 9 19. MUTE button 20. ANGLE button 21. V-MODE button 22. SOURCE SELECT button 23. OSD button 24. NEXT button 25. PREVIOUS button 26. SUBTITLE button 27. ENTER button 28. MENU button 29. CH-LEVEL button 30. TONE button 31. ZOOM button 32.
- Page 10 5.2. AMN250UC DVD Micro System 1. SOUND EFFECT 2. SOURCE 3. STANDBY 4. FAST REWIND 5. DISPLAY 6. FAST FORWARD 7. OPEN/CLOSE 8. PLAY/PAUSE 9. STOP 10. Loudspeaker 11. HEADPHONE 12. PREVIOUS...
- Page 11 13. MEMORY CARD 14. VOLUME (+/-) 15. USB 16. NEXT 17. MICROPHONE 18. ON/OFF 19. SPEAKER OUTPUT 20. Y 21. AUDIO OUTPUT (L) 22. CB/PB 23. AUDIO OUTPUT (R) 24. CR/PR 25. COAX 26. S-VIDEO OUTPUT 27. VIDEO OUTPUT 28. LINE IN (R) 29.
-
Page 12: Operation
6. Operation All functions of the appliance are accessible using the remote control. All instructions refer to operation with the remote control, unless indicated otherwise. 6.1. Quick start General functions Set the appliance in the standby mode. To switch on the appliance, press the STANDBY button (1). To switch back to the standby mode, press the STANDBY button (1) again. - Page 13 To select the source mode TUNER, press the SOURCE button (22). LINE-IN To select the source mode LINE-IN, press the SOURCE button (22). Connect the external appliance to your AMN250UC Mirco DVD System. USB and Memory card functions Turn on the television. ...
-
Page 14: General Setup Menu Operation
6.2. General setup menu operation This chapter explains a complete setup of the appliance: settings of screen display, audio setup and video setup. General settings menu To change the initial settings The following actions have to be carried out with the remote control. ... - Page 15 Picture format In the TV DISPLAY section, press the arrow buttons (11) to select 4:3 4:3 PANSCAN or 4:3 LETTERBOX for a conventional TV set. Select WIDE SQUEEZE for a wide screen TV set. In the ANGLE MARK section, press the arrow buttons to switch this function ON or OFF. When switched ON, the appliance shows the angle mark when multi-camera angles are available.
- Page 16 Dolby digital audio setup DUAL MONO STEREO: for stereo effect. R-Mono: right channel only. L-Mono: left channel only. Mix-Mono: the average of both the left and right channel. This function is only available for Dolby AC-3 encoded 2-channel discs. DYNAMIC Select the value for the dynamic range compression to avoid losing sound details resulting from a low volume.
-
Page 17: Dvd/Cd Functions
Rating setup page PARENTAL Set a rating for movies played by the appliance. Movies rated higher than the level set for the parental lock can not be viewed. The password to reset the rating is 136900. This function is only available with discs that have parental rating encoded. SET PASSWORD Change the default password. - Page 18 After the disc has been loaded, a content menu will display on the TV screen. Press the arrow buttons (11) to select a menu item. Press the ENTER button (27) to enter the selected menu item. During playback, the following functions are available: ...
- Page 19 Using the MP3/MPEG4 playback function Insert an MP3/MPEG4 disc. A content menu will display on the TV screen. Press the up/down arrow buttons (11) to select a folder or a file. Press ENTER (27) to enter the selected folder or file. ...
-
Page 20: Radio Functions
6.4. Radio functions Press the SOURCE key (22) to select the radio mode. To switch between Mono and Stereo reception, press the MO/ST button (28). Set pre-set stations Search for the desired frequency with the SEARCH + button (7) or the SEARCH - button (8). ... - Page 21 6.5. LINE-IN Connect the external appliance to your AMN250UC DVD Micro System. To select the source mode LINE-IN, press the SOURCE button (22). 6.6. USB and memory card Preparation Turn on the television.
- Page 22 USB functions Insert the USB device in the slot . The device can only be connected one way. To select the source mode DVD, press the SOURCE button (22). Press the USB/ MEMORY CARD button (14). Memory card functions ...
-
Page 23: Karaoke Function
6.7. Karaoke function Please note: Switch the microphone to on in the SETUP menu. The karaoke function allows you to sing along with your favourite music. To connect the microphone, insert the cable plug in the microphone jack. Press the OPEN/CLOSE button (17). -
Page 24: Cleaning And Maintenance
7. Cleaning and maintenance WARNING Before performing any cleaning or maintenance, switch off and unplug the appliance. Clean the outside of the appliance with a soft cloth. When the appliance is very dirty, dampen the cloth slightly with water and a neutral solution. 7.1. -
Page 25: Technical Data
8. Technical data AMN250UC DVD Micro System Voltage: 240VAC / 60 Hz Power consumption: 100W Frequency response: +/- 1,5 dB (20Hz ~20KHz) Disc output Television system: PAL/NTSC Frequency range: 20Hz ~20KHz Signal/noise ratio: >80dB (1kHz) Dynamic range: >70dB (1kHz) Distortion: < -60dB (1kHz) -
Page 26: Disposal Of Used Electrical And Electronic Equipment
For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. For more information and warranty conditions, please visit: www.akai.eu Do not dispose of batteries as household waste but take them to a battery recycling facility.
