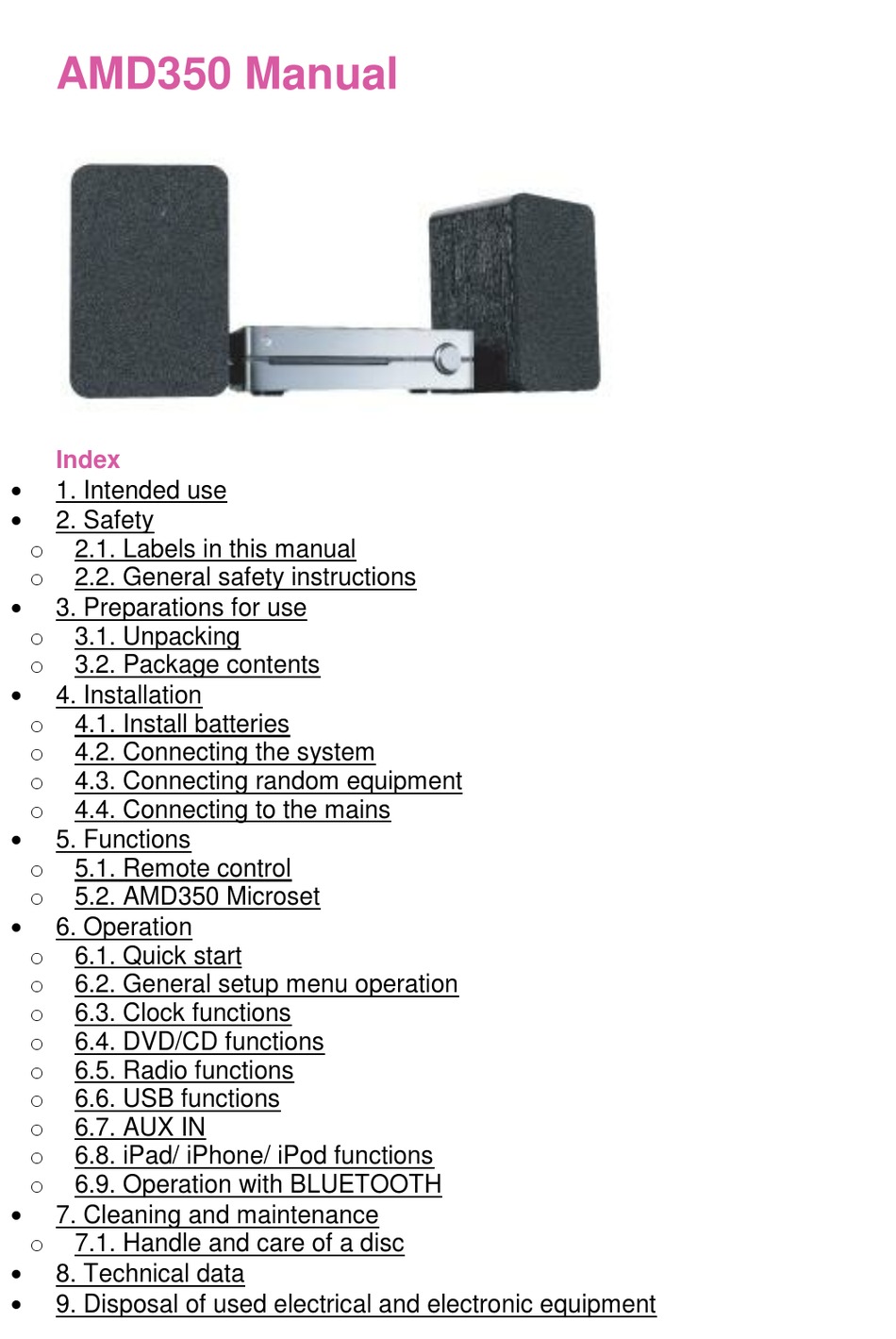

AMD350 Manual
Index
1. Intended use
2. Safety
o
2.1. Labels in this manual
o
2.2. General safety instructions
3. Preparations for use
o
3.1. Unpacking
o
3.2. Package contents
4. Installation
o
4.1. Install batteries
o
4.2. Connecting the system
o
4.3. Connecting random equipment
o
4.4. Connecting to the mains
5. Functions
o
5.1. Remote control
o
5.2. AMD350 Microset
6. Operation
o
6.1. Quick start
o
6.2. General setup menu operation
o
6.3. Clock functions
o
6.4. DVD/CD functions
o
6.5. Radio functions
o
6.6. USB functions
o
6.7. AUX IN
o
6.8. iPad/ iPhone/ iPod functions
o
6.9. Operation with BLUETOOTH
7. Cleaning and maintenance
o
7.1. Handle and care of a disc
8. Technical data
9. Disposal of used electrical and electronic equipment
Advertisement
Table of Contents
Related Manuals for Akai AMD350
Summary of Contents for Akai AMD350
- Page 1 4.1. Install batteries 4.2. Connecting the system 4.3. Connecting random equipment 4.4. Connecting to the mains 5. Functions 5.1. Remote control 5.2. AMD350 Microset 6. Operation 6.1. Quick start 6.2. General setup menu operation 6.3. Clock functions 6.4. DVD/CD functions 6.5.
-
Page 2: Intended Use

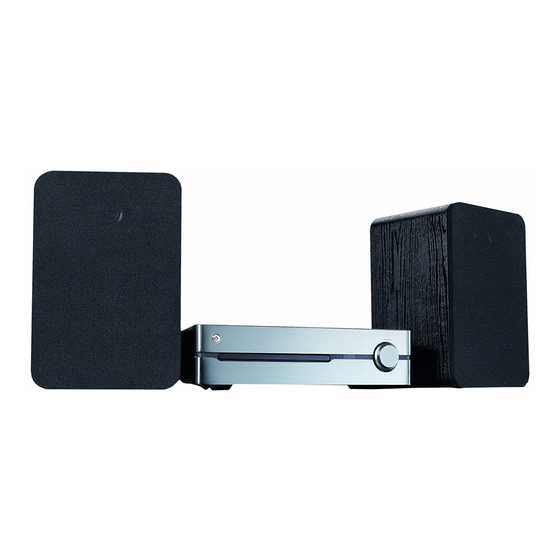

1.Intended use The DVD Microset plays music from CDs and music, videos and photos from DVDs and USB. The appliance also plays music from iPad/iPhone/iPod. The Microset can be controlled by bluetooth. Read the manual carefully before the first use. DVDs and DVD appliances are manufactured under the worldwide agreed DVD regional code system that the appliance will operate only with corresponding disc of the same regional code. -
Page 3: Labels In This Manual
2.Safety 2.1. Labels in this manual WARNING A warning means that injury or death is possible if the instructions are not obeyed. CAUTION A caution means that damage to the equipment is possible. A note gives additional information, e.g. for a procedure. 2.2. -
Page 4: Preparations For Use
If you do dispose of the carton and the packing materials, please remember to recycle with due care to the environment. 3.2. Package contents The following items are included in the received package: 1 x AMD350 DVD Micro System 2 x Speaker 1 x Remote control 2 x Batteries (AAA) -
Page 5: Installation
4.Installation 4.1. Install batteries Install batteries Remove the battery cover. Insert the batteries matching the (+) and (-) polarity markings. CAUTION Incorrect installation can cause battery leakage and corrosion which will damage the appliance. Corrosion, oxidation, battery leakage and any other gradually acidic defect of this nature will invalidate the guarantee. -
Page 6: Connecting Random Equipment
4.3. Connecting random equipment Connect the tv Use one of the cables as presented in the image below. To connect the aerial to the appliance: Insert an FM aerial or a suitable cable into the connection. - Page 7 4.4. Connecting to the mains Connect the appliance to the mains. Switch on the appliance.
-
Page 8: Functions
5.Functions 5.1. Remote control 1. STANDBY button 2. Digit buttons 3. GOTO button 4. USB button 5. DISK button 6. AUX button 7. SLOW button 8. PLAY/ PAUSE button 9. STOP button 10. PREVIOUS button 11. ENTER button 12. Arrow buttons 13. - Page 9 18. A-B button 19. EQ button 20. OPEN/ CLOSE button 21. CLOCK button 22. TIMER button 23. PROG button 24. SLEEP button 25. TUNER button 26. DOCK button 27. MUTE button 28. OSD/RDS button 29. VOLUME button (+/-) 30. MENU button 31.
- Page 10 5.2. AMD350 Microset 1. POWER/ STANDBY 2. DISPLAY 3. Docking cover 4. iPad/ iPhone/ iPod dock 5. USB 2.0 slot 6. AUX jack: 3.5 mm 7. EJECT 8. PLAY/ PAUSE 9. PREVIOUS 10. NEXT 11. STOP 12. SOURCE 13. VOLUME +/- 14.
-
Page 11: Operation
6.Operation All functions of the appliance are accessible using the remote control. All instructions refer to operation with the remote control, unless indicated otherwise. 6.1. Quick start General functions Set the appliance in the standby mode. To switch on the appliance, press the STANDBY button (1). To switch back to the standby mode, press the STANDBY button (1) again. - Page 12 DVD/CD functions Turn on the television. Switch on the appliance. To select the source mode DVD/ CD, press the DISC button (5). Place a disc in the disc tray Press the OPEN (20) button (on the appliance) to open the disc tray. The display shows the total number of tracks on the CD.
-
Page 13: General Setup Menu Operation
6.2. General setup menu operation This chapter explains a complete setup of the appliance: settings of screen display, audio setup and video setup. General settings menu To change the initial settings The following actions have to be carried out with the remote control. ... -
Page 14: Preference Setup Page
Picture format In the TV DISPLAY section, press the arrow buttons (12) to select 4:3 4:3 PANSCAN or 4:3 LETTERBOX for a conventional TV set. Select 16:9 for a wide screen TV set. OSD LANG In the OSD LANG section, press the arrow buttons to choose the language. Screensaver on/off. -
Page 15: Clock Functions
SET PASSWORD Change the default password. Enter the current password in the first box. Enter the new password in the second box. Enter the new password again in the third box to confirm. The default password (0000) is always active. Even if the password has been reset. DEFAULT Restore all default settings of the appliance, except the settings for the menu items PARENTAL and PASSWORD. - Page 16 Preparation Set the appliance in the standby mode. Setting the current time Press and hold the CLOCK button (21). The hour digits start flashing. Set the hour To do this, press the arrow buttons (12). Press ENTER (11) to confirm. Set the minutes ...
-
Page 17: Dvd/Cd Functions
6.4. DVD/CD functions Preparation Turn on the television. After the disc has been loaded, a content menu will display on the TV screen. Press the arrow buttons (12) to select a menu item. Press the ENTER button (11) to enter the selected menu item. During playback, the following functions are available: ... - Page 18 To select the camera angle, press the ANGLE button (32). To select the audio language of a DVD, press the AUDIO button (34) repeatedly until the desired language is set. Press the GOTO button to acces the quick menu. Use numerical buttons to input track number and track time.
- Page 19 Using the ZOOM function This function can be used for zooming in and out on photos and DVDs. The available zoom ratios are: 2x, 3x, 4x, 1/2, 1/3, 1/4. Press the ZOOM button (31). Press the ZOOM (31) button again to set the correct size. ...
-
Page 20: Radio Functions
6.5. Radio functions Press the TUNER key (25) to select the radio mode. Set pre-set stations Press and hold the PROG (23) button for 2 seconds to activate automatic programming. The LED display will show AUTO. Press the PREV (10) Button or the NEXT (30) Button to select the desired station. -
Page 21: Usb Functions
6.6. USB functions Preparation Turn on the television. Insert the USB device in the slot . The device can only be connected one way. Press the USB button (4). After the device has been connected, a content menu will display on the TV screen. ... - Page 22 6.7. AUX IN Connect the external appliance to your AMD350 Microset. Select AUX mode. ...
- Page 23 The LED display will show IPOD. It could take around 15 seconds for the AMD350 to identify the iPod/iPhone/iPad. To start playback, press the PLAY/ PAUSE button (8) once. The iPod/iPhone/iPad will automatically start charging once it is docked onto the AMD350.
-
Page 24: Operation With Bluetooth
6.9. Operation with BLUETOOTH You can wirelessly connect the AMD350 to devices that have Bluetooth A2DP. Establishing a Bluetooth connection (PAIREN) Turn on the Bluetooth function of your device To select the source mode BLUETOOTH, press the TUNER button (25). -
Page 25: Cleaning And Maintenance
Do not apply thinner, alcohol, chemical solvent, or sprays when cleaning. Such cleaning fluids will permanently damage the disc surface. 8.Technical data AMD350 Microset Voltage: 230VAC / 50 Hz Power consumption: 35W Frequency response: +/- 1,5 dB (20Hz ~20KHz) -
Page 26: Disposal Of Used Electrical And Electronic Equipment
For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. For more information and warranty conditions, please visit: www.akai.eu Do not dispose of batteries as household waste but take them to a battery recycling facility.
