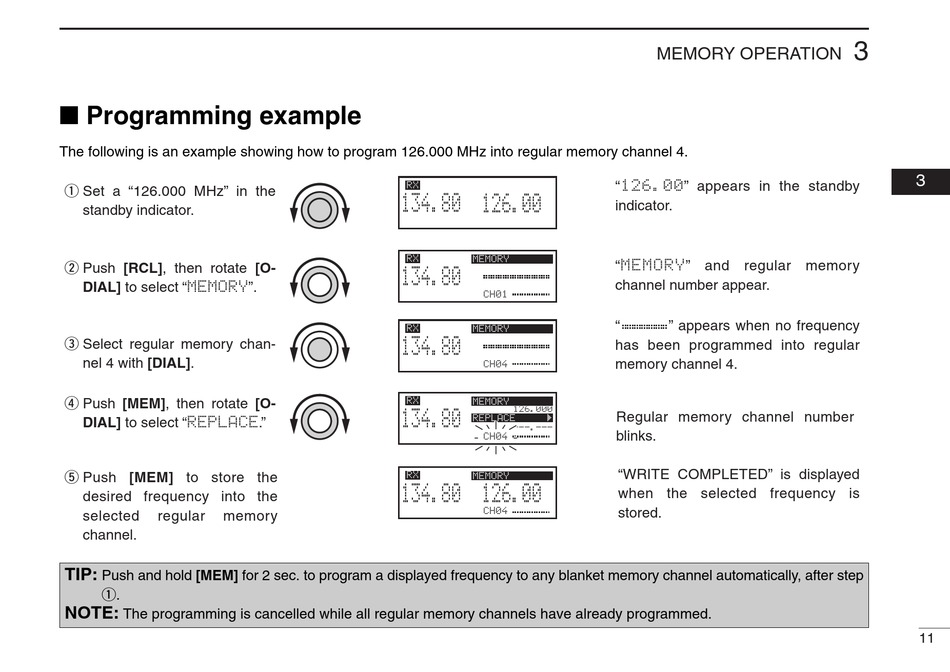

I Programming example

The following is an example showing how to program 126.000 MHz into regular memory channel 4.
q
Set a "126.000 MHz" in the
standby indicator.
w
Push [RCL], then rotate [O-
DIAL] to select "MEMORY".
e
Select regular memory chan-
nel 4 with [DIAL].
r
Push [MEM], then rotate [O-
DIAL] to select "REPLACE."
t
Push [MEM] to store the
desired frequency into the
selected regular memory
channel.
TIP:
Push and hold [MEM] for 2 sec. to program a displayed frequency to any blanket memory channel automatically, after step
q.
NOTE:
The programming is cancelled while all regular memory channels have already programmed.
RX
134.80
126.00
5
RX
MEMORY
134.80
CH01
RX
MEMORY
134.80
CH04
RX
MEMORY
126.000
134.80
REPLACE Ç
---.---
CH04
RX
MEMORY
134.80
126.00
5
CH04
MEMORY OPERATION
"126.00" appears in the standby
indicator.
"MEMORY" and regular memory
channel number appear.
" " appears when no frequency
has been programmed into regular
memory channel 4.
Regular memory channel number
blinks.
"WRITE COMPLETED" is displayed
when the selected frequency is
stored.
