Replacing The Diskette Drive; Figure 7-1 Removing And Replacing The Diskette Drive - Sun Microsystems Sun Blade 100 Service Manual

4. Disconnect the following:
Smart card reader power cable
Diskette drive power cable
Diskette drive data cable
5. Using a No. 2 Phillips screwdriver, loosen (but do not remove) the three screws
securing the peripheral assembly to the chassis (
Note – Do not remove the three screws securing the peripheral assembly to the
chassis.

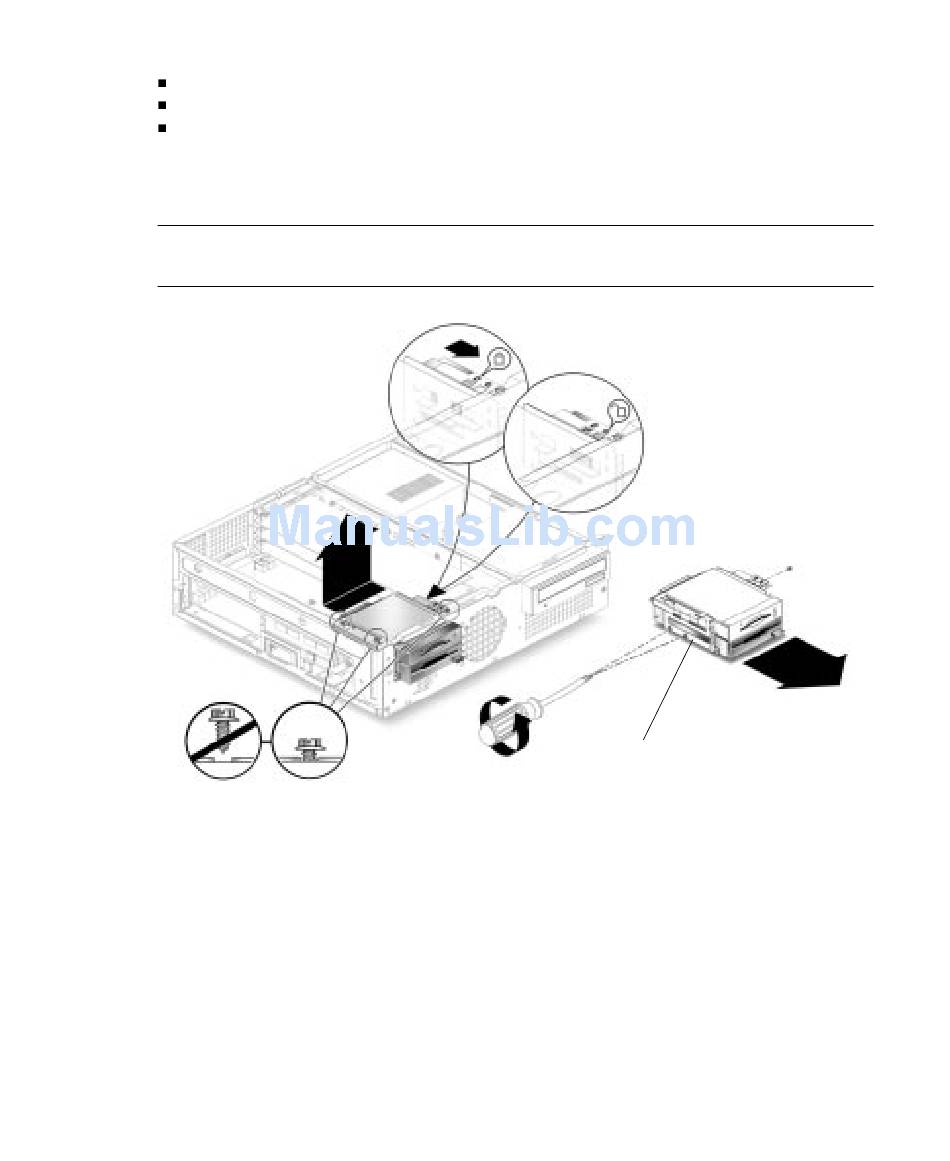

FIGURE 7-1
6. Slide the peripheral assembly to the rear of the chassis and lift it from the chassis.
7. Using a No. 2 Phillips screwdriver, remove the three screws securing the diskette
drive to the peripheral assembly.
8. Remove the diskette drive from the peripheral assembly.
7.1.2

Replacing the Diskette Drive

1. Position the diskette drive into the peripheral assembly (
7-2 Sun Blade 100 Service Manual • October 2000
Removing and Replacing the Diskette Drive
).
FIGURE 7-1
Peripheral assembly
).
FIGURE 7-1
