Replacing The Fan Assembly - Sun Microsystems Sun Blade 100 Service Manual

FIGURE 6-10
6.4.2

Replacing the Fan Assembly

1. Position the fan assembly, ensuring that the fan retaining tabs are aligned with
the chassis retaining slots (
2. Press the fan assembly into the chassis slots.
3. Connect the fan assembly power cable connector to the riser board (J4).
4. Route the cables through the cable retaining clip and close the clip.
5. If you removed any long PCI cards, replace the PCI cards into the riser board.
See Section 8.4.2 "Replacing a PCI Card" on page 8-13.
6. Detach the wrist strap, replace the system cover, and power on the system as
described in Chapter 9 "Finishing Component Replacement."

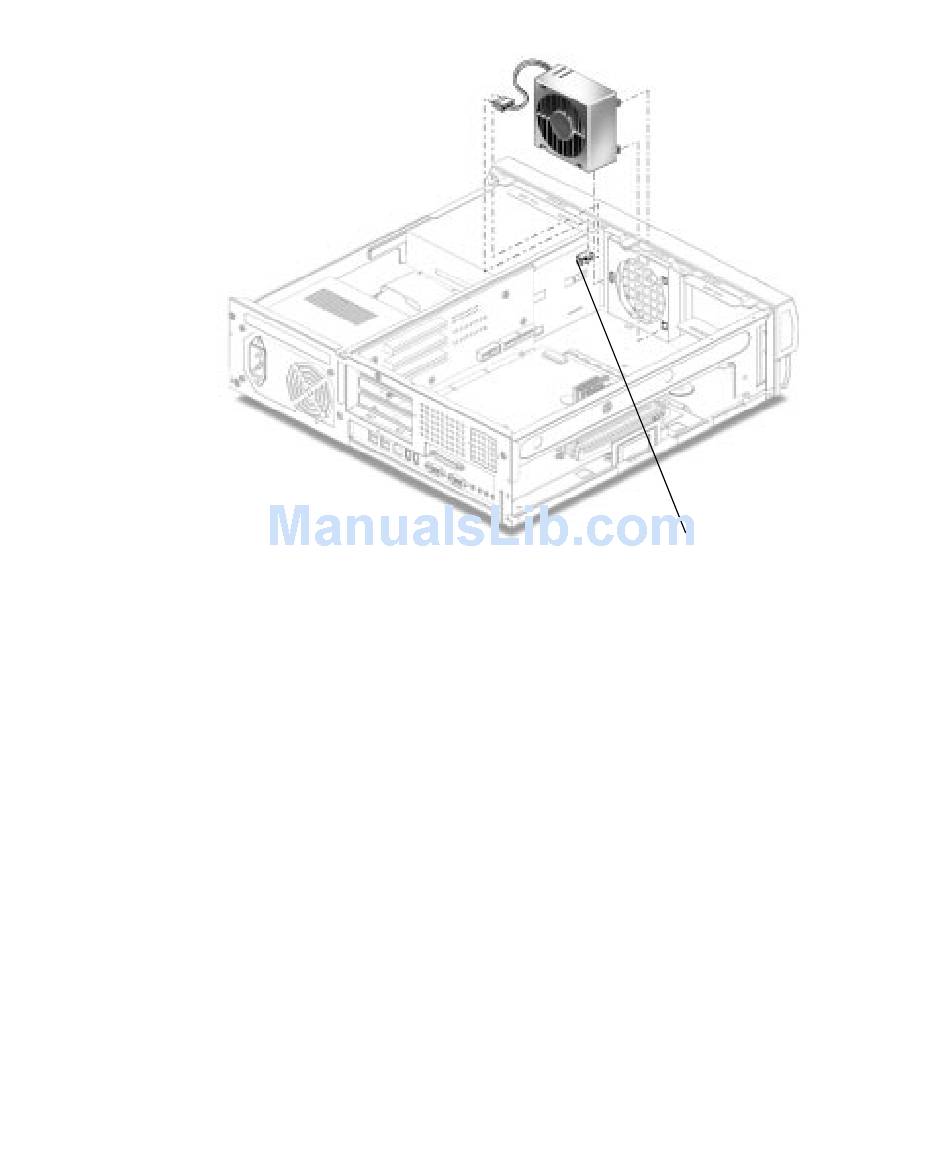

Removing and Replacing the Fan Assembly
FIGURE 6-10
Chapter 6
J4 connector
).
Removing and Replacing Major Subassemblies 6-17
