GETTING READY TO SEW

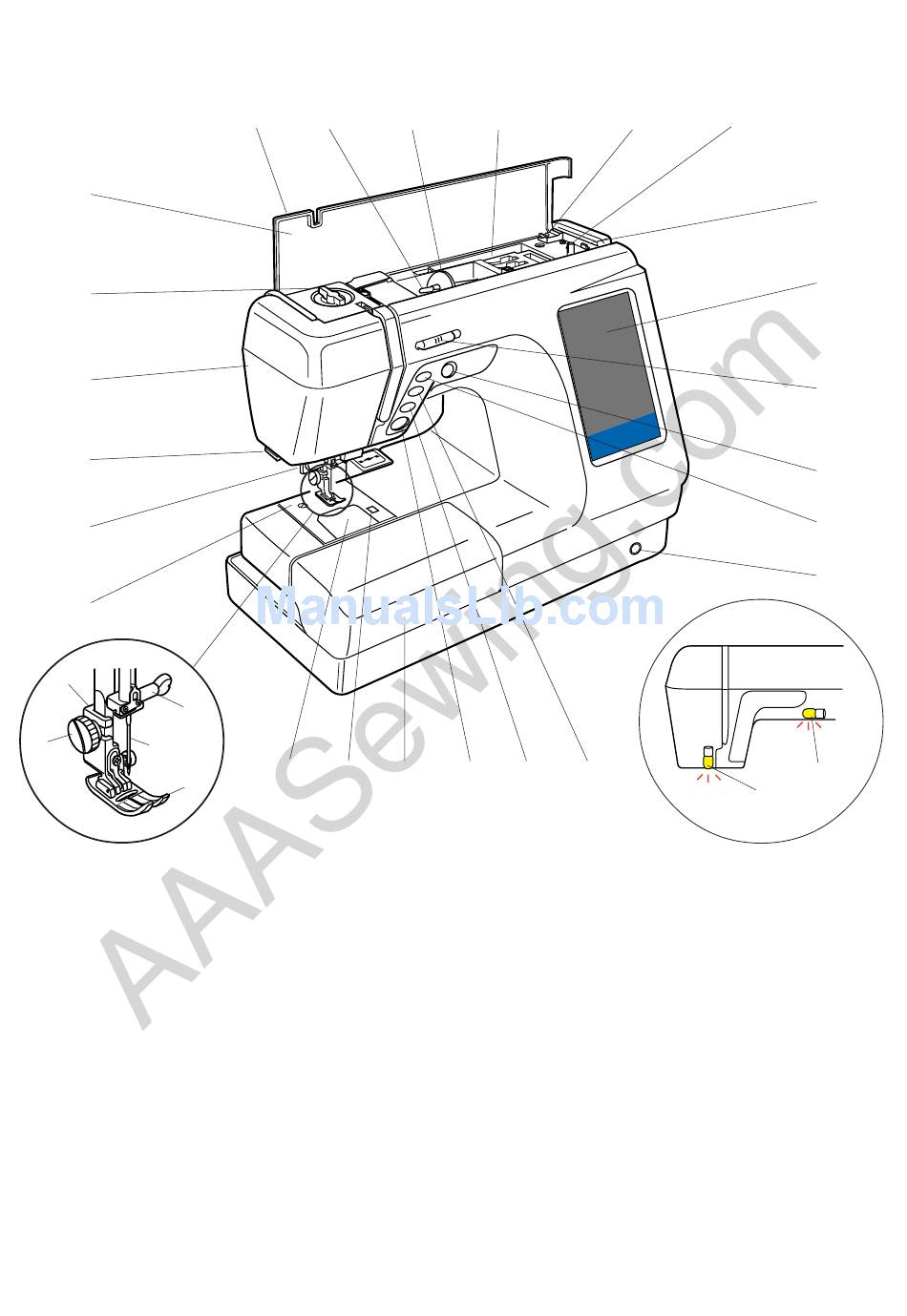

Name of Parts

24
23
22
21
20
19
27
29
26
28
25
1 Top Cover
2 Spool Pin
3 Spool Holder (Large)
4 Foot Storage Compartment
5 Bobbin Thread Cutter
6 Bobbin Winder Spindle
7 Bobbin Winder Stopper
8 Visual Touch Screen
9 Speed Control Lever
10 Auto Needle Threader Button
11 Up/Down Needle Button
12 Knee Lifter Socket
13 Auto-Lock Button
14 Reverse Button
15 Start/Stop Button
www.aaasewing.com
1 2 3
18
16
17
4
15
14 13
16 Extension Table (Accessory Box)
17 Hook Cover Plate Release Button
18 Hook Cover Plate
19 Needle Plate
20 Automatic Needle Threader
21 Thread Cutter & Thread Holder
22 Face Plate
23 Pressure Dial
24 Flip-Top Quick Reference Chart
25 Zigzag Foot A
26 Thumbscrew
27 Foot Holder
28 Needle
29 Needle Clamp Screw
30 Dual Sewing Lights
