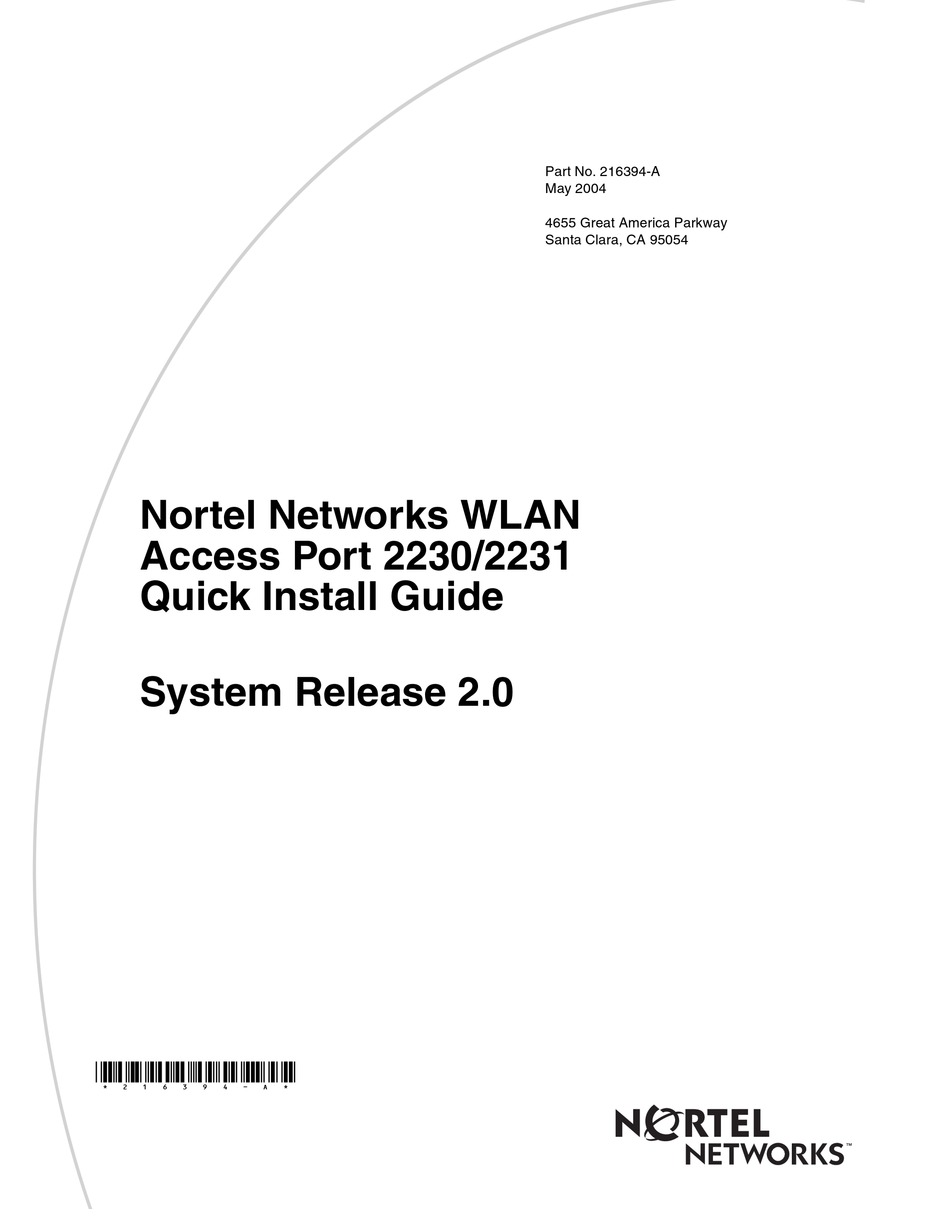

- Page 1 Part No. 216394-A May 2004 4655 Great America Parkway Santa Clara, CA 95054 Nortel Networks WLAN Access Port 2230/2231 Quick Install Guide System Release 2.0 *216394-A*...
- Page 2 In the interest of improving internal design, operational function, and/or reliability, Nortel Networks NA Inc. reserves the right to make changes to the products described in this document without notice. Nortel Networks NA Inc. does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
-
Page 3: Table Of Contents
Introduction This guide contains several sections allowing you to install a Nortel Networks WLAN - Access Port (2230/2231) and contains the following sections: • Overview on page 2 • Step 1: Collecting Required Tools and Supplies on page 3 •... -
Page 4: Overview
This document assumes that a site survey has been performed as described in the Nortel Networks WLAN - Access Port (2230/ 2231) Deployment Guide, that WLAN Access Port (2230/2231) locations and mounting options have been selected, and that you have one Nortel Networks WLAN - Access Port (2230/2231). -
Page 5: Step 1: Collecting Required Tools And Supplies
An assortment of sheet metal and drywall screws and toggle bolts. • CAT-5 (or higher) cables to connect the Nortel Networks WLAN - Access Port (2230/2231) locations and the Nortel Networks WLAN - Security Switch or other network device. •... -
Page 6: Step 2: Configuring The Wlan Access Port (2230/2231) Before Installation
Preparing a Nortel Networks WLAN - Access Port (2230/2231) Preparing a Version 2.0 Nortel Netwo rk s WLAN - Access Port (22 30/223 1) If your Nortel Networks WLAN - Access Port (2230/2231) has Operating System 2.0 or a later version loaded on it, continue with this procedure. - Page 7 Note that the Red LED can light for a short period (10-20 seconds) when the AP reboots. If the RED LED comes on AND STAYS ON for more than a minute, disconnect the AP and call Nortel Networks Technical Support.
- Page 8 Security Switch (2270) are either on the same subnet or that the AP has a route back to its Primary WLAN Security Switch (2270). Also, if the Nortel Networks WLAN - Access Port (2230/2231) is not on the same subnet as the WLAN Security Switch (2270), make sure there is a DHCP server on the same subnet as the Nortel Networks WLAN - Access Port (2230/2231).
- Page 9 If everything works (the GREEN LED is on and the RED LED is off), reboot the AP and install it as described in this document. If your Nortel Networks WLAN - Access Port (2230/2231) fails this visual test, refer to RMA Procedures in the Nortel Networks Product Documentation to return your WLAN Access Ports (2230/2231).
- Page 10 Security Switch (2270) are either on the same subnet or that the AP has a route back to its Primary WLAN Security Switch (2270). Also, if the Nortel Networks WLAN - Access Port (2230/2231) is not on the same subnet as the WLAN Security Switch (2270), make sure that a DHCP server is accessible on the same subnet as the Nortel Networks WLAN - Access Port (2230/2231).
-
Page 11: Step 3: Preparing Mounting Locations
Step 3: Preparing Mounting Locations Step 3: Preparin g Mou ntin g Locations On your map, you should have the WLAN Access Port (2230/2231) locations, mounting options, and power options. • Find the required mounting locations. • Use the ceiling-mount base to mark the wall or ceiling locations for sheet metal, drywall, or other screws. Make sure you leave enough space around the WLAN Access Port (2230/2231) and base to plug the CAT-5 cable, optional external antenna cable(s), optional power supply cable, and optional Kensington MicroSaver Security Cable into the sides of the WLAN Access Port (2230/2231). - Page 12 • If necessary, drill holes for the various cables where they can be mostly hidden from casual view. When you are mounting the WLAN Access Port (2230/2231) using a projection-mount L-bracket (the one with two long legs) the cables can be routed through the 5/8-inch (15.9 mm) holes in the bracket. •...
-
Page 13: Step 4: Mounting The Wlan Access Ports (2230/2231)
Note that the Nortel Networks 2200 series supports Antenna Sectorization, which can be used to increase the number of clients and/or client throughput in a given air space. Installers can mount two WLAN Access Ports (2230/2231) back-to-back and the Nortel Networks 2200 series operator can disable the second antenna in both WLAN Access Ports (2230/2231) to create a 360-degree coverage area with two sectors. - Page 14 Ceiling Mount Base When you are mounting the Nortel Networks WLAN - Access Port (2230/2231) in the middle of a ceiling (flat sides toward the room or hallway), use the ceiling-mount base to mount the Nortel Networks WLAN - Access Port (2230/2231) as shown in the...
- Page 15 Note: When the Nortel Networks WLAN - Access Port (2230/2231) is powered up and is associated with an Nortel Networks WLAN - Security Switch (2270) (Green/Power and Yellow/802.11b/g and/or Yellow or Amber/802.11a LEDs lit), the Nortel Networks WLAN - Access Port (2230/2231) is broadcasting its beacon signal(s). When this happens, complete the installation as quickly as possible to remove yourself from within 8 inches (20 cm) of the WLAN Access Port (2230/2231) to comply with FCC RF radiation exposure guidelines.
- Page 16 Make sure the cables are routed away from the WLAN Access Port (2230/2231) antennas. Note: When the WLAN Access Port (2230/2231) is powered up and is associated with an Nortel Networks WLAN - Security Switch (2270) (Green/Power and Yellow/802.11b/g and/or Yellow or Amber/802.11a LEDs lit), the WLAN Access Port (2230/2231) is broadcasting its beacon signal(s).
- Page 17 Projection Wall Mount Projection Wall Mount When you are mounting the WLAN Access Port (2230/2231) out from a wall (flat sides along the wall or hallway), use an optional factory-orderable projection-mount L-bracket. • Before proceeding, gently screw the two factory-supplied screws and spring washers into the bottom of the WLAN Access Port (2230/2231).
- Page 18 Make sure the cables are routed away from the WLAN Access Port (2230/2231) antennas. Note: When the WLAN Access Port (2230/2231) is powered up and is associated with an Nortel Networks WLAN - Security Switch (2270) (Green/Power and Yellow/802.11b/g and/or Yellow or Amber/802.11a LEDs lit), the WLAN Access Port (2230/2231) begins broadcasting its beacon signal(s).
- Page 19 Flush Wall Mount Flush Wall Mount When you are mounting the WLAN Access Port (2230/2231) against a wall (flat side toward the inside of the building), use an optional factory-orderable flush-mount bracket. • Before proceeding, gently screw the two factory-supplied screws and spring washers into the bottom of the WLAN Access Port (2230/2231).
- Page 20 Make sure the cables are routed away from the WLAN Access Port (2230/2231) antennas. Note: When the WLAN Access Port (2230/2231) is powered up and is associated with an Nortel Networks WLAN - Security Switch (2270) (Green/Power and Yellow/802.11b/g and/or Yellow or Amber/802.11a LEDs lit), the WLAN Access Port (2230/2231) begins broadcasting its beacon signal(s).
-
Page 21: Step 5: Returning Mac Information
(2230/2231), return the MAC addresses and their locations on the maps or floor plans to the network planner or manager. The Nortel Networks WLAN - Management System Software (WLAN Management System Software) operators will use the MAC address and location informa- tion to create maps for precise wireless Operating System management. -
Page 22: Planning Notes
About External Antennas • Refer to the WLAN Access Port (2230/2231) External Antennas section in the Nortel Networks Product Documentation for an overview of the external 802.11a and 802.11b/g external antennas available for use with the WLAN Access Ports (2230/2231). - Page 23 • When you are attaching external antennas to the WLAN Access Port (2230/2231), use cables with female reverse-TNC connectors to connect antennas to the ports on the side of the WLAN Access Port (2230/2231). See the following figure for antenna port markings. Figure - WLAN Access Port (2230/2231) External Antenna Port Markings A.
- Page 24 The mounting base attaches to the bottom of the WLAN Access Port (2230/2231) with two supplied screws, and then the assembly slides and locks onto two sheet metal, drywall, or other screws. • When you are mounting the WLAN Access Port (2230/2231) out from a wall (flat sides along the room or hallway), use the projection-mount L-bracket supplied with the WLAN Access Port (2230/2231).
-
Page 25: How To Get Help
Technical Solutions Center. An Express Routing Code (ERC) is available for many Nortel Networks products and services. When you use an ERC, your call is routed to a technical support person who specializes in supporting that product or service. To locate an ERC for your product or service, go to the http://www.nortelnetworks.com/help/contact/erc/index.html... -
Page 26: Fcc Statements For Wlan Access Ports (2230/2231)
20 cm (8 in.) from all persons. Using higher gain antennas and types of antennas not covered under the FCC certification of this product is not allowed. Installers of the radio and end users of the Nortel Networks 2200 Series must adhere to the installation instructions provided in this manual.
