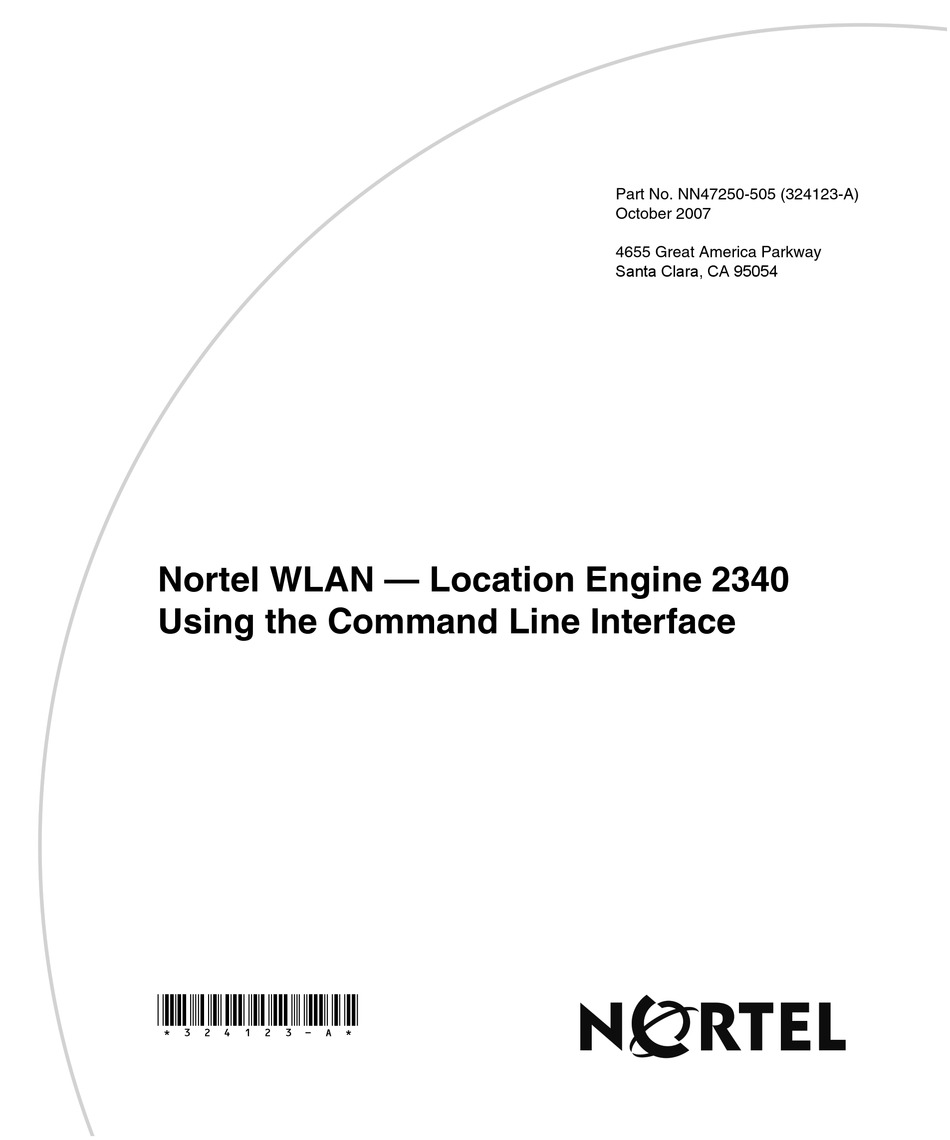

Nortel WLAN — Location Engine 2340 Using the Command Line Interface *324123-A* Part No. NN47250-505 (324123-A) October 2007 4655 Great America Parkway Santa Clara, CA 95054...
Page 2
In the interest of improving internal design, operational function, and/or reliability, Nortel Networks. reserves the right to make changes to the products described in this document without notice. Nortel Networks does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
Nortel. Exchange Products not returned to Nortel will be invoiced at full Product list prices. Replacement Products may be new, reconditioned or contain refurbished materials. In connection with any warranty services hereunder, Nortel may in its sole discretion modify the Product at no cost to you to improve its reli- ability or performance.
Page 4
Products at its then-prevailing repair rates. The limited warranty for the Product does not apply if, in the judgment of Nortel, the Product fails due to damage from shipment, handling, storage, accident, abuse or misuse, or it has been used or maintained in a manner not conforming to Product manual instructions, has been modified in any way, or has had any Serial Number removed or defaced.
Page 5
“Software” is owned or licensed by Nortel, its parent or one of its subsidiaries or affiliates, and is copyrighted and licensed, not sold. Software consists of machine-readable instructions, its components, data, audio-visual content (such as images, text, recordings or pictures) and related licensed materials including all whole or partial copies.
Page 6
Regulations at 48 C.F.R. Sections 12.212 (for non-DoD entities) and 48 C.F.R. 227.7202 (for DoD entities). b)Customer may terminate the license at any time. Nortel may terminate the license if Customer fails to comply with the terms and conditions of this license. In either event, upon termination, Customer must either return the Software to Nortel or certify its destruction.
Getting help over the phone from a Nortel solutions center If you don’t find the information you require on the Nortel Technical Support Web site, and have a Nortel support contract, you can also get help over the phone from a Nortel Solutions Center.
Page 10
To access some Nortel Technical Solutions Centers, you can use an Express Routing Code (ERC) to quickly route your call to a specialist in your Nortel product or service. To locate the ERC for your product or service, go to: http://www.nortel.com/erc...
Using the Command-Line Interface WLAN Location Engine 2340 software operates a Nortel WLAN Location Engine 2340 (WLE2340). You can configure the WLE2340 with set, clear, and show commands. Use set commands to change parameters. Use clear commands to reset parameters to their defaults. In many cases, you can overwrite a parameter with another set command.
Serial Console Access You can also access the CLI through Serial Console. To do this, connect the provided Serial Cable to a machine running appropriate terminal emulation software that is, Hyperterm. You can configure the terminal emulation software setting as follows: At the login prompt, enter ‘admin’...
A vertical bar (|) separates mutually exclusive options within a list of possibilities. For example, you enter either enable or disable, not both, in the following command: set ssh {enable | disable} Syntax Nortel WLAN — Location Engine 2340 Using the Command Line Interface...
Down Arrow keys to select a command that you want to repeat from the history buffer. Tabs The WLE2340 Software CLI uses the Tab key for command completion. You can type the first few characters of a command and press the Tab key to display the command(s) that begin with those characters.
Understanding Command Descriptions Each command description in the Nortel WLAN Location Engine Command Reference contains the following elements: • A command name, which shows the keywords but not the variables. • A brief description of the command’s functions.
Access Commands Use access commands to control access to the WLAN Location Engine 2340 (WLE2340) (CLI). This chapter presents access commands alphabetically. Use the following table to locate commands in this chapter based on their use. Access Privileges disable It changes the CLI session from enabled mode to restricted mode.
Page 18
18 Access Commands Examples The following command plus the enable password provides enabled access to the CLI for the current sessions: wle2340-39> enable Password: password NN47250-505 (324123-A Version 01.01)
Page 19
Access All. Examples To end the administrator’s session, type the following command: wle2340-39> quit reset system [shutdown] Reboots or shutdown the Nortel WLAN Location Engine. To reboot the Location Engine: Nortel WLAN — Location Engine 2340 Using the Command Line Interface...
Page 20
To shutdown the Location Engine: show Show command displays the available choices for the show command. Note. You cannot see the "?" character on the CLI prompt. Syntax show Usage You can view all the commands listed under show. Examples To view the commands listed under show, type the following: NN47250-505 (324123-A Version 01.01)
Syntax Enabled. Access Introduced in Version 6.0. History Nortel WLAN — Location Engine 2340 Using the Command Line Interface show system on page 21 show status on page 21 Show uptime on page 22 show version on page 23...
Page 22
The following commands displays the information about the current running Examples information process on the system. Show uptime Displays last time, the appliance was restarted. show system uptime Syntax Enabled. Access Introduced in Version 6.0. History The following command displays the uptime information: Examples NN47250-505 (324123-A Version 01.01)
Displays the appliance firmware release version. show system version Syntax Enabled. Access Introduced in Version 6.0. History The following command displays the firmware release information. Examples Nortel WLAN — Location Engine 2340 Using the Command Line Interface...
Page 24
24 System Commands NN47250-505 (324123-A Version 01.01)
Number of devices reported • Received TZSP packet count show sensors Syntax Enabled. Access Introduced in version 6.0. History The following command displays the detail of all the enabled sensors. Examples Nortel WLAN — Location Engine 2340 Using the Command Line Interface...
Page 26
26 Sensors Commands NN47250-505 (324123-A Version 01.01)
Syntax Enabled. Access Introduced in version 6.0. History Nortel WLAN — Location Engine 2340 Using the Command Line Interface show appliance on page 27 show agent on page 27 show controller on page 27 show logs on page 27...
Page 28
28 Logs Commands The following command displays the 100 logs. Examples NN47250-505 (324123-A Version 01.01)
Displays the detailed information about the network interfaces on the appliance that has been added to the CLI. This information includes: • Link status (UP/DOWN) • RX/TX packet recv/error/dropped/overrun/collision counts • RX/TX byte counts Nortel WLAN — Location Engine 2340 Using the Command Line Interface...
Page 30
show interface eth {eth0 | eth1 | eth2 | eth3} [detailed] Syntax Enabled. Access Introduced in version 6.0. History The following command displays the detailed information about the eth0 Examples network interface. show serial-number Displays the system serial-number. show serial-number Syntax Enabled.
Page 31
Diagnosing network connectivity issues. ping Syntax None. Defaults Enable Access Nortel WLAN — Location Engine 2340 Using the Command Line Interface...
Page 32
32 Interface Commands NN47250-505 (324123-A Version 01.01)
