4.23 Camera / Video connection

A camera or a video device can be connected directly
to New c Series and New e Series multifunction
displays using the video connector on the power and
data cable.
Note: Video devices cannot be directly connected
to New a Series multifunction displays. For camera
connections to a New a Series display please refer
to the IP camera connection section.
Examples of video sources that you can connect to
the display include:
• Video camera.
• Thermal camera.
• DVD player.
• Portable digital video player.
1
4

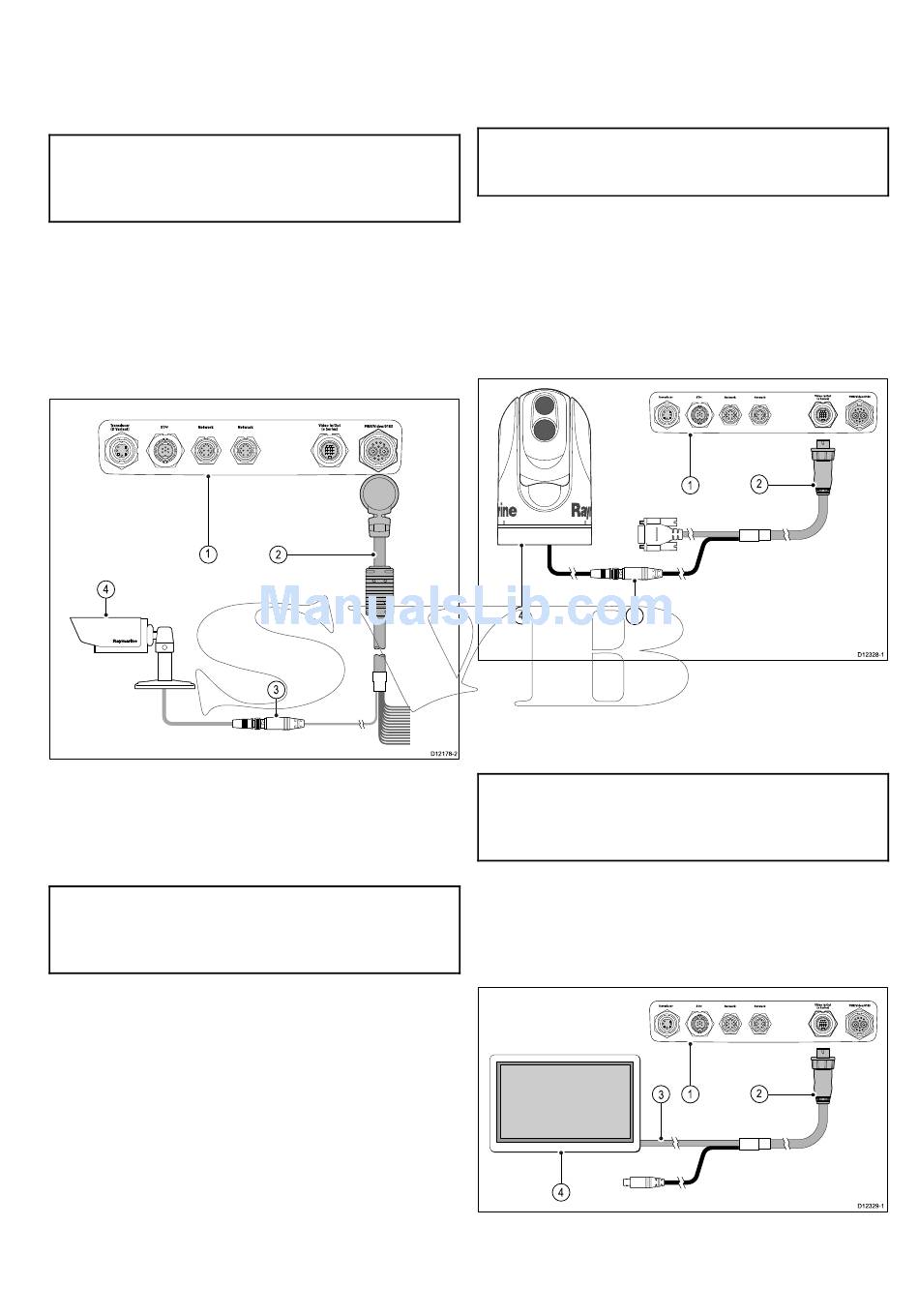

1. Rear connector panel of multifunction display.
2. Power and data cable.
3. BNC video connector (input 1).
4. Video source — for example, video camera.
Note: To listen to a movie's audio track, any
connected DVD or digital video player will require
speakers to be connected to the players audio
output.
Cables and connections
2
3
D12178-2

4.24 Camera / video in-out connection

A camera / video device or external display can be
connected to New e Series multifunction displays
(excluding the e7 / e7D) using the dedicated video
in/out connector.
Note: New a Series and New c Series multifunction
displays do not have a dedicated video in/out
connector.
Video In
Examples of video input sources that you can
connect to the display include:
• Video camera.
• Thermal camera.
• DVD player.
• Portable digital video player.
4
3
1. Rear connector panel of multifunction display.
2. Video accessory cable.
3. BNC video connector (input 2).
4. Thermal camera.
Note: To listen to a movie's audio track, any
connected DVD or digital video player will require
speakers to be connected to the players audio
output.
Video out
Examples of video output devices that you can
connect to the display include:
• HDTV with VGA input.
• VGA monitor.
4
1. Rear connector panel of multifunction display.
2. Video accessory cable.
3. VGA cable to external display.
2
1
1 2
3
D12328-1
D12329-1
