4.6 Network connections

You can connect compatible devices to your
multifunction display using the Network connector(s)
at the rear of the unit.
A typical network of digital devices may include:
• Up to 6 Raymarine multifunction displays.
• RayNet or SeaTalk hs
sonar module and radar scanner.
• Thermal or IP cameras.
Note: Your multifunction display includes the
following network connectors:
• e7, e7D and a Series = 1 x RayNet network
connector.
• c Series and e Series (excluding the e7 and
e7D) = 2 x RayNet network connectors.
Networks requiring additional network connections
will require a Raymarine network switch.
Please refer to Chapter 33 Spares and accessories
for details of available network cables and hardware.
Network cable connector types
There are 2 types of network cable connector —
SeaTalk hs and RayNet.
SeaTalk
connecting SeaTalk
a Raymarine network switch via
SeaTalk
RayNet connector — used for
connecting Raymarine network
switches and SeaTalk
the multifunction display via RayNet
cables. Also required for connecting a
crossover coupler if only one device
is being connected to the display's
Network connector.
Cables and connections
digital devices such as a
hs connector — used for
hs devices to
hs cables.
hs devices to

4.7 Keypad connection

A remote keypad such as the RMK-9 can be
connected directly to the multifunction display's
network connector or via a network switch. Multiple
keypads can be connected to a system. Each
keypad can be used to control up to 4 multifunction
displays.

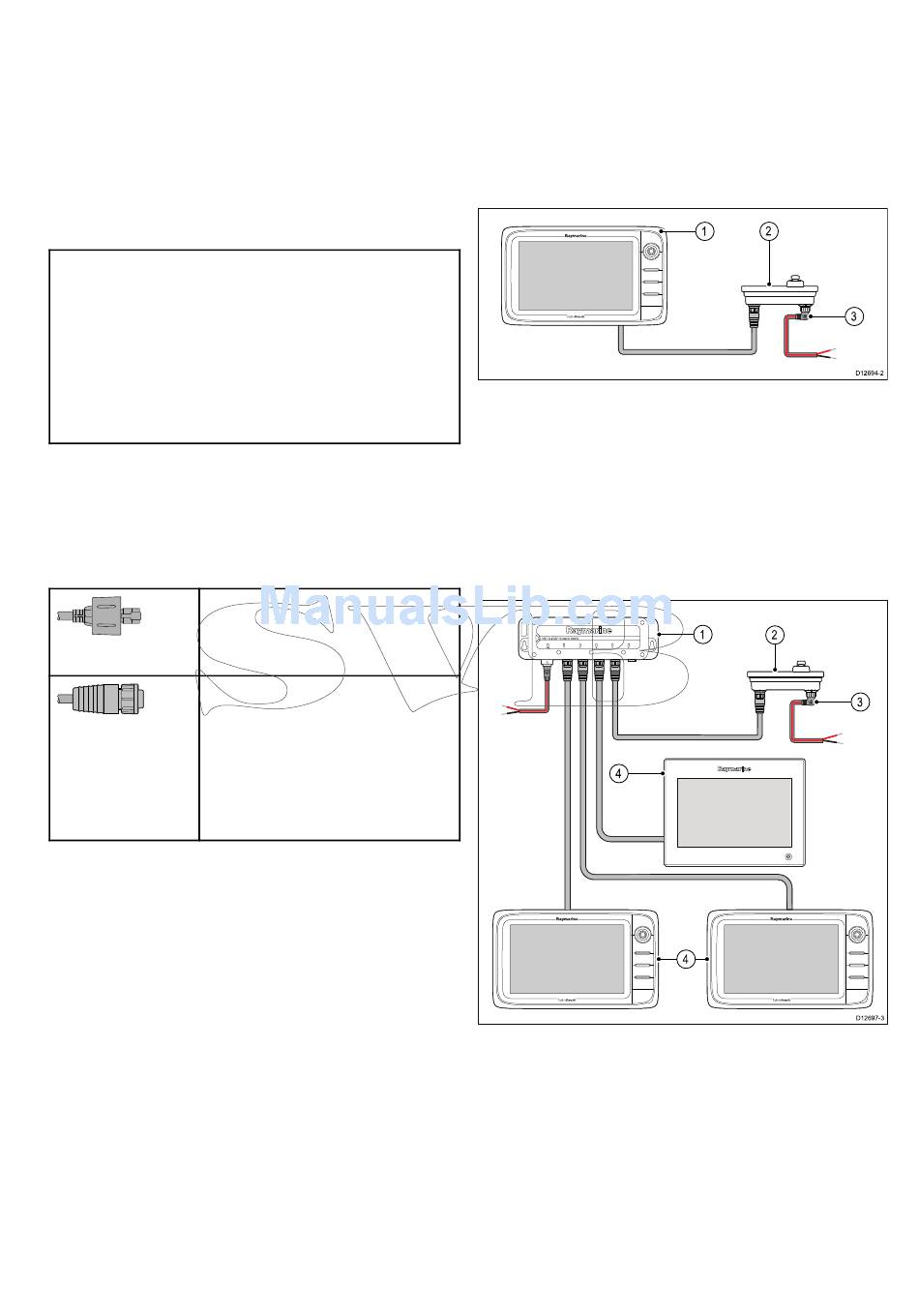

Direct connection
1. Multifunction display.
2. Keypad.
3. Right angled power cable.
When connecting the keypad directly to a New a
Series, New c Series or New e Series multifunction
display the keypad must be powered separately,
using the alternate power connector.
Network connection
1. Network switch.
2. Keypad.
3. Right angled power cable.
4. Networked multifunction displays.
When connecting the keypad via a network switch
the keypad must be powered separately, using the
alternate power connector.
Once connected the keypad must be paired with the
each multifunction display you want to control using
the keypad.
1
D12694-2
1 2
4
D12697-3
3
57
