11.12 Autopilot status symbols

The autopilot status is indicated in the databar.

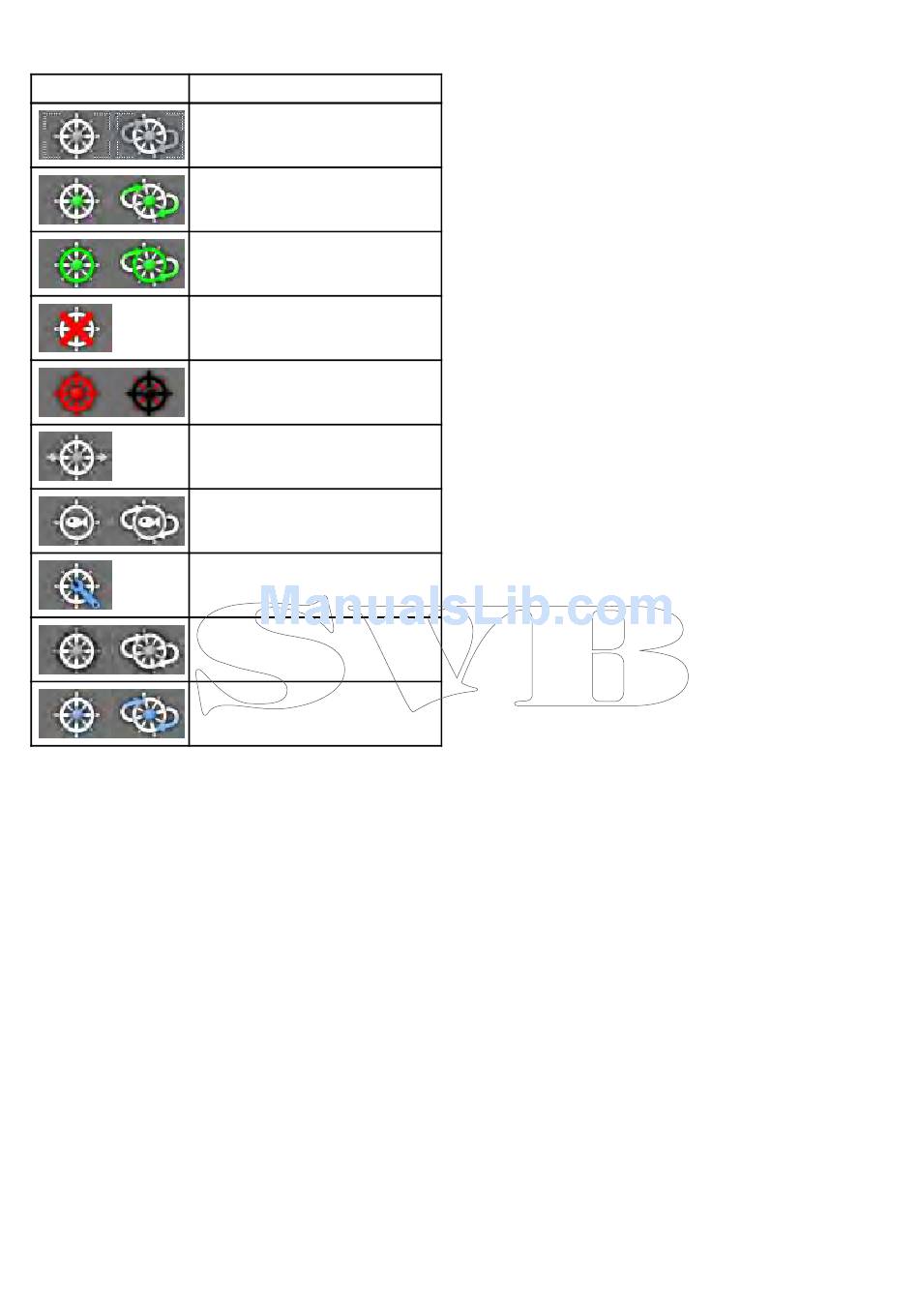

Symbol Description
Autopilot is in Standby mode.
Autopilot is in Track mode.
Autopilot is in Auto mode.
No autopilot detected.
Autopilot alarm active.
Dodge mode is active.
Fish mode is active.
Autopilot calibration.
Power steering active.
Wind Vane mode is active.
174

11.13 Autopilot alarms

The autopilot function provides alarms to alert you to
situations that require action.
Your multifunction display shows autopilot alarms,
regardless of whether there is active navigation on
the system. If autopilot control is enabled, and an
alarm is raised by the autopilot, the multifunction
display provides an audible alarm sound (providing
that the alarm has not already been silenced). The
Pilot Control dialog is displayed, indicating a new
alarm. Additionally, the autopilot status icon is
displayed in red, and remains red until the alarm is
cleared.
Silencing autopilot alarms
1. Select Dismiss.
The alarm is silenced and the autopilot remains
engaged in auto mode, continuing on the current
locked heading.
2. Select Auto.
The alarm is silenced and the autopilot remains
engaged in auto mode, continuing on the current
locked heading.
3. Select Track.
The alarm is silenced and the autopilot 'tracks' to
the next waypoint.
Silencing autopilot alarms and disengaging
autopilot
1. Select STANDBY.
The alarm is silenced, and the autopilot is
disengaged and put in standby mode.
a Series / c Series / e Series
