General Installation Process
Install Memory Modules ...continued

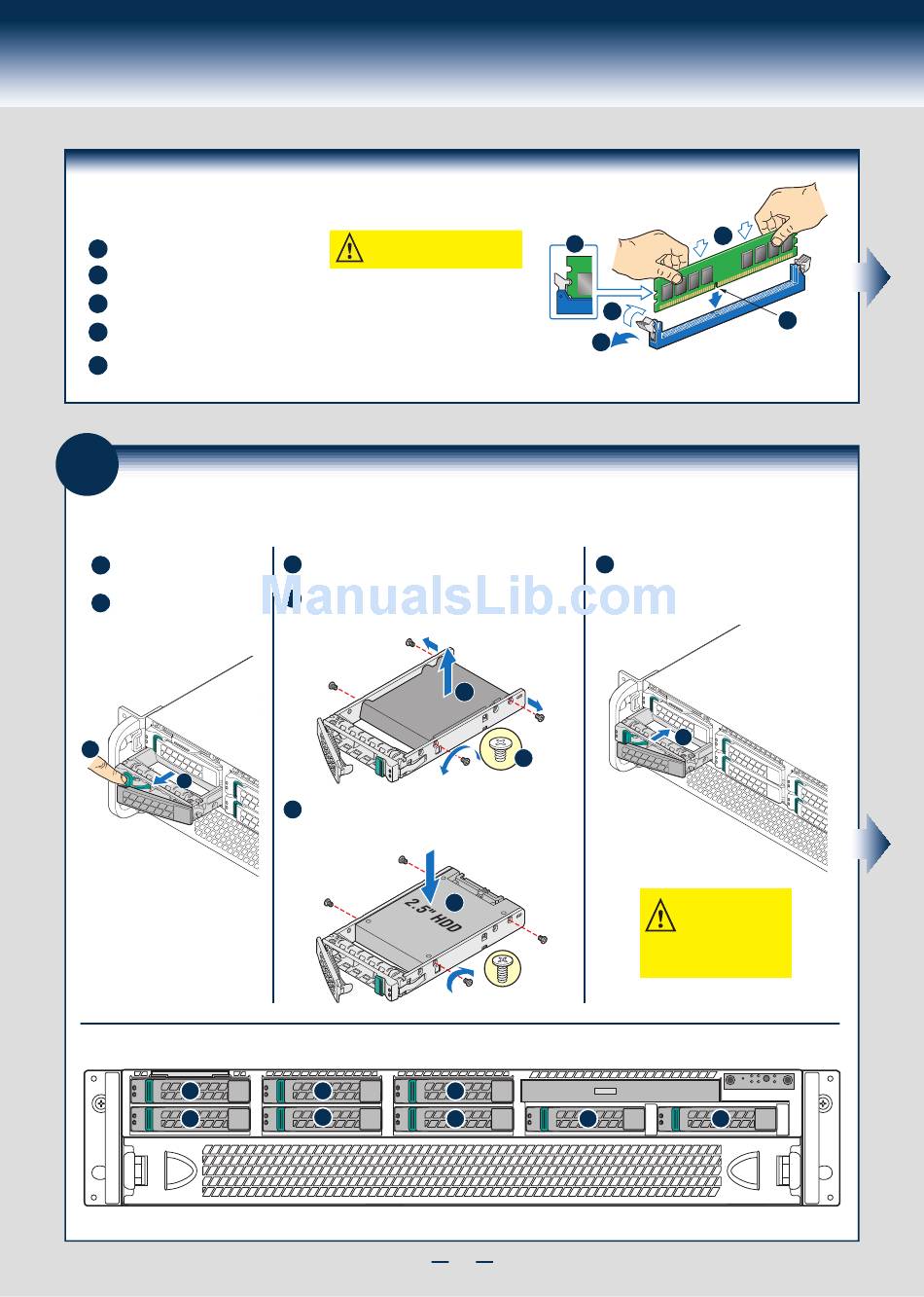

To Install DIMMs:
A
Open both DIMM socket levers.
B
Note location of alignment notch.
C
Insert DIMM making sure the connector edge of the DIMM aligns correctly with the slot.
D
Push down firmly on the DIMM until it snaps into place and both levers close.
E
IMPORTANT! Visually check that each latch is fully closed and correctly engaged with
each DIMM edge slot.
10

Install Hard Drives

A
Press the green latch to
unlock.
B
Pull out the black lever and slide
the carrier out.
A
B
1
0
Drive 0 Primary
CAUTION: Avoid touching contacts
when handling or installing DIMMs.
2.5" Hard Drive Carrier (For system with 2.5" hard drive bay only)
C
Remove the four screws securing the plastic drive blank
from the 2.5" HDD carrier.
D
Disengage the plastic drive blank from the HDD carrier.
Remove the plastic drive blank from the 2.5" HDD carrier.
E
Install the hard disk drive using the four screws as shown.
Make sure the connector end of the drive matches the
backplane connector.
Hard Drive Numbering Diagram
3
2
E
D
A
F
With the lever open, insert the hard disk drive
assembly into the chassis, then push in the lever
to lock it into place.
D
C
E
5
4 6
8 x 2.5" hard drive bay as shown
5
C
B
F
CAUTION: If you don't install
all drives, empty drive bays
must be occupied by carriers
with plastic drive blank
provided to maintain proper
system cooling.
