Remove Processor Heatsink(S); Install Processor(S) - Intel R2000LH2 Quick Installation User's Manual

General Installation Process
IMPORTANT!
Before proceeding
further, check your
Intel ® Server System
for disconnected or
loose cables and
components that
may have occurred
during shipping.
7

Install Processor(s)

A. Remove the Cover
A
Remove the cover
as shown
Install Processor(s) ...continued
D. Install the Processor
CAUTION: The bottom side of the processor has
components that may damage the socket pins
if installed wrongly.
Processor must align correctly with the
socket opening before installation.
DO NOT DROP processor into socket!
A
Take the processor out of the
box and remove the
protective shipping cover.
B
Orient the processor with the
socket so that the processor
cutouts match the four
orientation posts on the socket.
C
Note the location of the golden
key at the corner of the
processor.
6

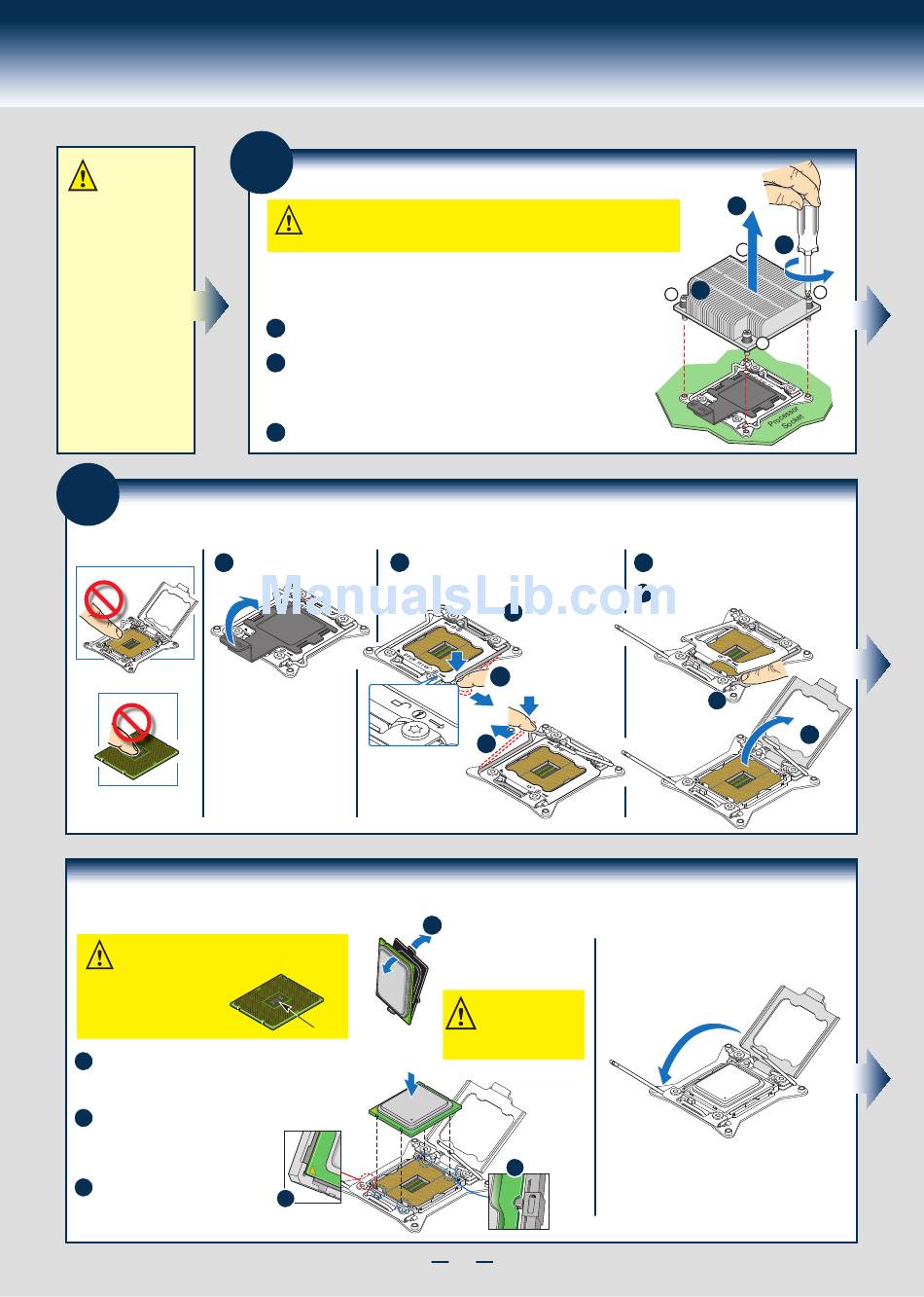

Remove Processor Heatsink(s)

CAUTION: The heatsink has thermal interface material (TIM) on the underside
of it. Use caution so that you do not damage the thermal interface material.
Use gloves to avoid sharp edges.
The heatsink is attached to the server board and/or processor socket with captive fasteners.
Using a #2 Phillips* screwdriver, loosen the four screws located on the
heatsink corners in a diagonal manner using the following procedure:
A
Using a #2 Phillips* screwdriver, start with screw 1 and loosen it by
giving it two rotations and stop. (IMPORTANT: Do not fully loosen.)
B
Proceed to screw 2 and loosen it by giving it two rotations and stop.
Similarly, loosen screws 3 and 4.
Repeat steps A and B by giving each screw two rotations each time
until all screws are loosened.
C
Lift the heatsink straight up.
B. Open the Socket Lever
A
Push down the lever handle on the
OPEN 1st side and away from the
socket to release it.
NOTE: Release
the levers in the
order as shown.
Components
C
B
Repeat step A to
release the lever
on the other side.
A
B
E. Close the Load Plate
A
Save the protective
cover.
CAUTION: When
unpacking a processor,
hold at the edges only
to avoid touching the
golden contact pins.
B
3
C
A
3
B
2
4
C. Open the Load Plate
A
Press the locking lever slightly to raise
the load plate.
B
Open the load plate all the way.
A
Carefully lower the load plate over
the processor.
1
B
