General Installation Process
Install Processor(s) ...continued

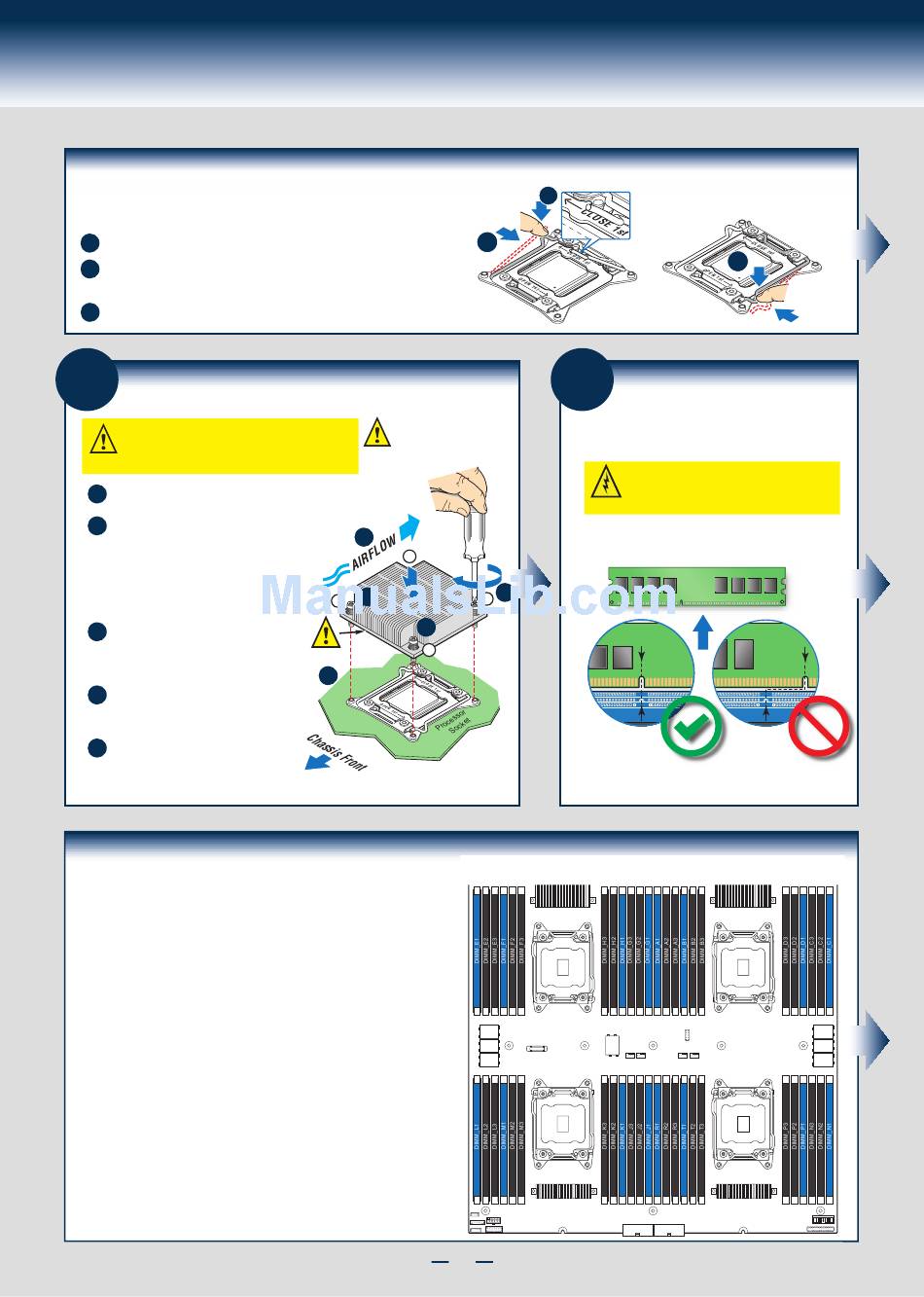

F. Latch the Locking Lever
A
Push down on the locking lever on the CLOSE 1st side.
Slide the tip of the lever under the notch in the load plate.
B
Make sure the load plate tab engages under the socket lever when
fully closed.
C
Repeat the steps to latch the locking lever on the other side.
8

Install Processor Heatsink(s)

CAUTION: The heatsink has thermal interface
material (TIM) on the underside of it. Use caution so
that you do not damage the thermal interface material.
Use gloves to avoid sharp edges.
A
Remove the protective film on the TIM if present.
B Align heatsink fins to the front and back of
the chassis for correct airflow.
Airflow goes from front-to-back of chassis.
Each heatsink has four captive fasteners and
should be tightened in a diagonal manner using
the following procedure:
Using a #2 Phillips* screwdriver,
C
start with screw 1 and engage screw
threads by giving it two rotations
and stop. (Do not fully tighten.)
D
Proceed to screw 2 and engage screw
threads by giving it two rotations and
stop. Similarly, engage screws 3 and 4.
E
Repeat steps C and D by giving each
screw two rotations each time until
each screw is lightly tightened up to
a maximum of 8 inch-lbs torque.
Install Memory Modules ...continued
Memory Configurations and Population Order:
For best performance, a minimum of four DIMMs per CPU is
recommended, populated in the blue slot of each memory channel.
In a single-processor configuration, always populate A1 DIMM first.
In a four-processor configuration, always populate A1 DIMM for CPU1, E1
DIMM first for CPU2, J1 for CPU3, and N1 for CPU4.
NOTE: For additional memory configurations, see the Service Guide
available at http://www.intel.com/p/en_US/support.
Memory sizing and configuration is supported only for qualified DIMMs
approved by Intel . For a list of supported memory, go to:
®
http://serverconfigurator.intel.com.
B
CAUTION:
Do not
over-tighten
fasteners.
B
3
D
1
2
E
4
TIM
A
NOTE: Heatsink styles may vary.
4
A
9

Install Memory Modules

DDR3 DIMM Memory Identification:
CAUTION: Observe normal ESD (ElectroStatic
Discharge) procedures to avoid possible damage to
system components.
DIMM notch and socket bump must align as shown below.
C
DDR3
Intel® Server Board S4600LH2/LT2
CPU 2 Socket
CPU 3 Socket
NOTE: Latch the levers in the
order as shown.
C
Other
Memory
CPU 1 Socket
CPU 4 Socket
