FUEL SYSTEM
•

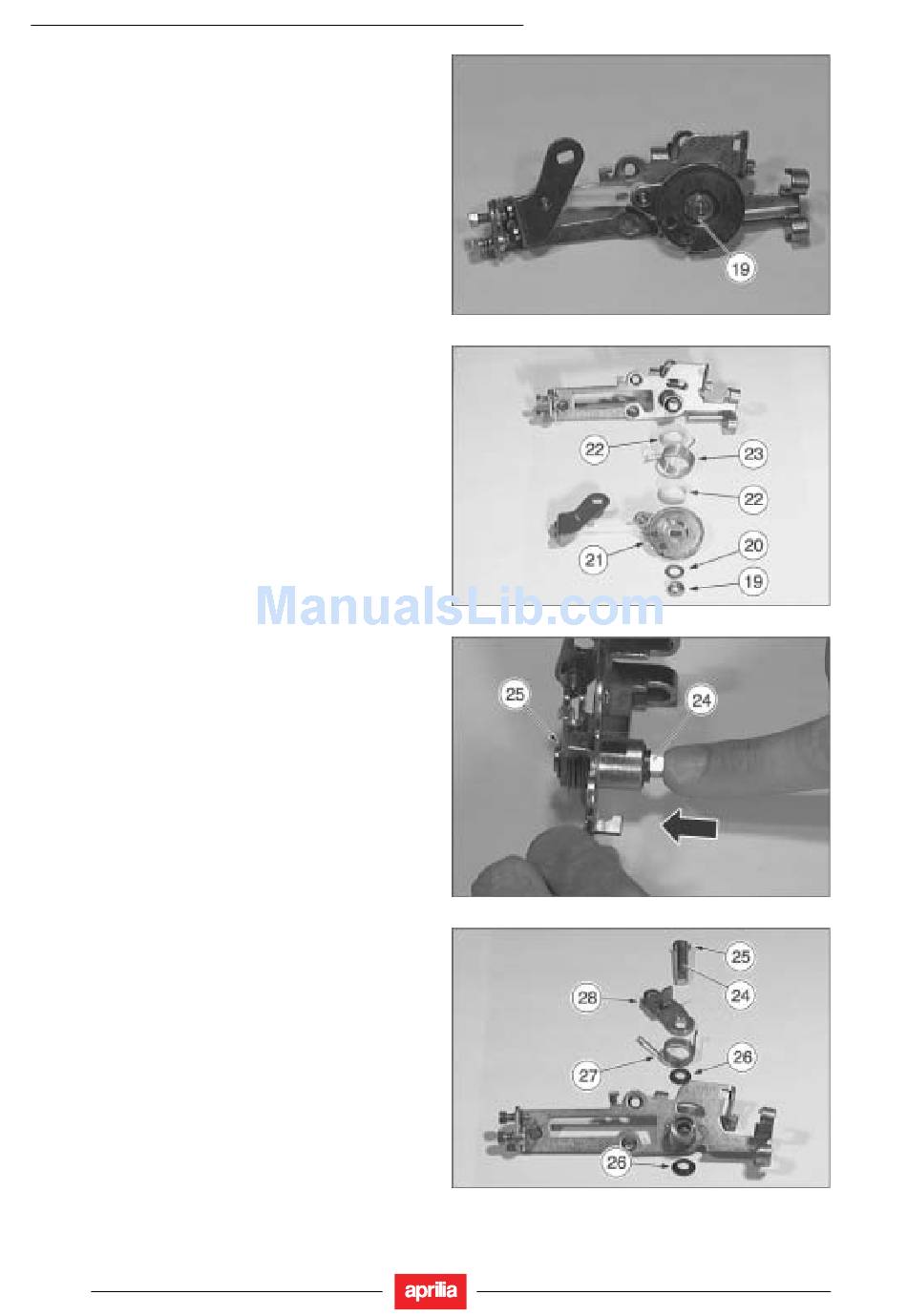

Unscrew and remove the M8x1 nut (19) and remove
the spring washer (20), the pulley (21), the two bushes
(22) and torsion spring (23).
•
Slide the fulcrum pin (24), together with the lock
washer (25), out of the hole on the throttle cable sup-
port bracket and remove the two shaft sealing rings
(26) with the torsion spring (27) and cold-start lever
(28).
