RSV 1000 R - RSV 1000 R FACTORY

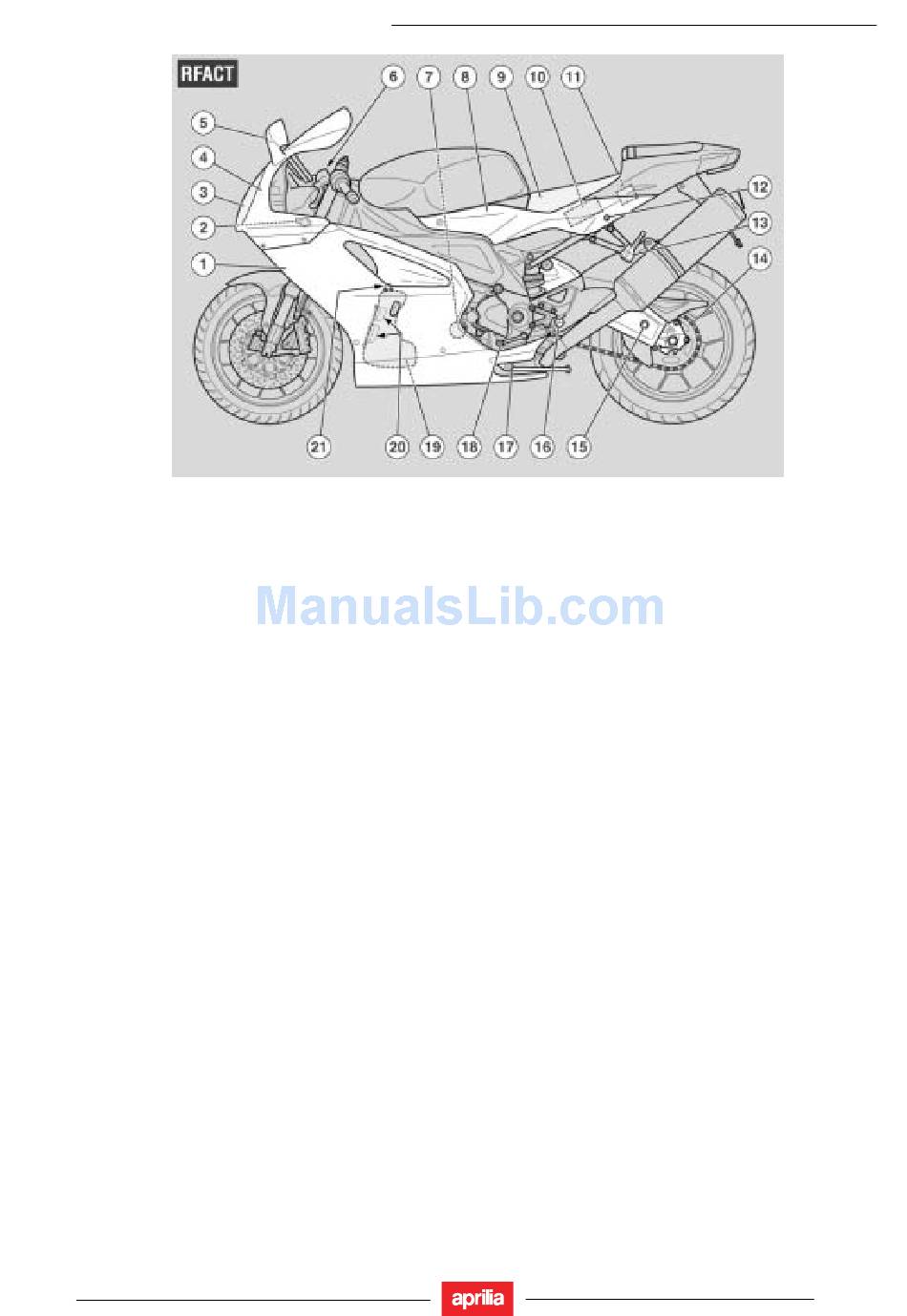

PRINCIPALI
KEY RFACT
1.
Left side fairing
2.
Adjustable steering damper
3.
Headlight left lamp
4.
Front fairing
5.
Left rear-view mirror
6.
Clutch fluid's reservoir
7.
Engine's oil filter
8.
Left side panel
9.
Rider's seat
10. Battery
11. Main fuse carrier (30A)
12. Passenger seat-Glove/tool kit's compartment lock
13. Passenger's left footrest
14. Drive chain
15. Rear swinging arm
16. Rider's left footrest
17. Side stand
18. Gear shift lever
19. Engine's oil tank
20. Engine's oil level
21. Engine oil tank's cap
GENERAL TECHNICAL INFORMATION
