Pro-Form PFEL85907.0 User Manual page 9

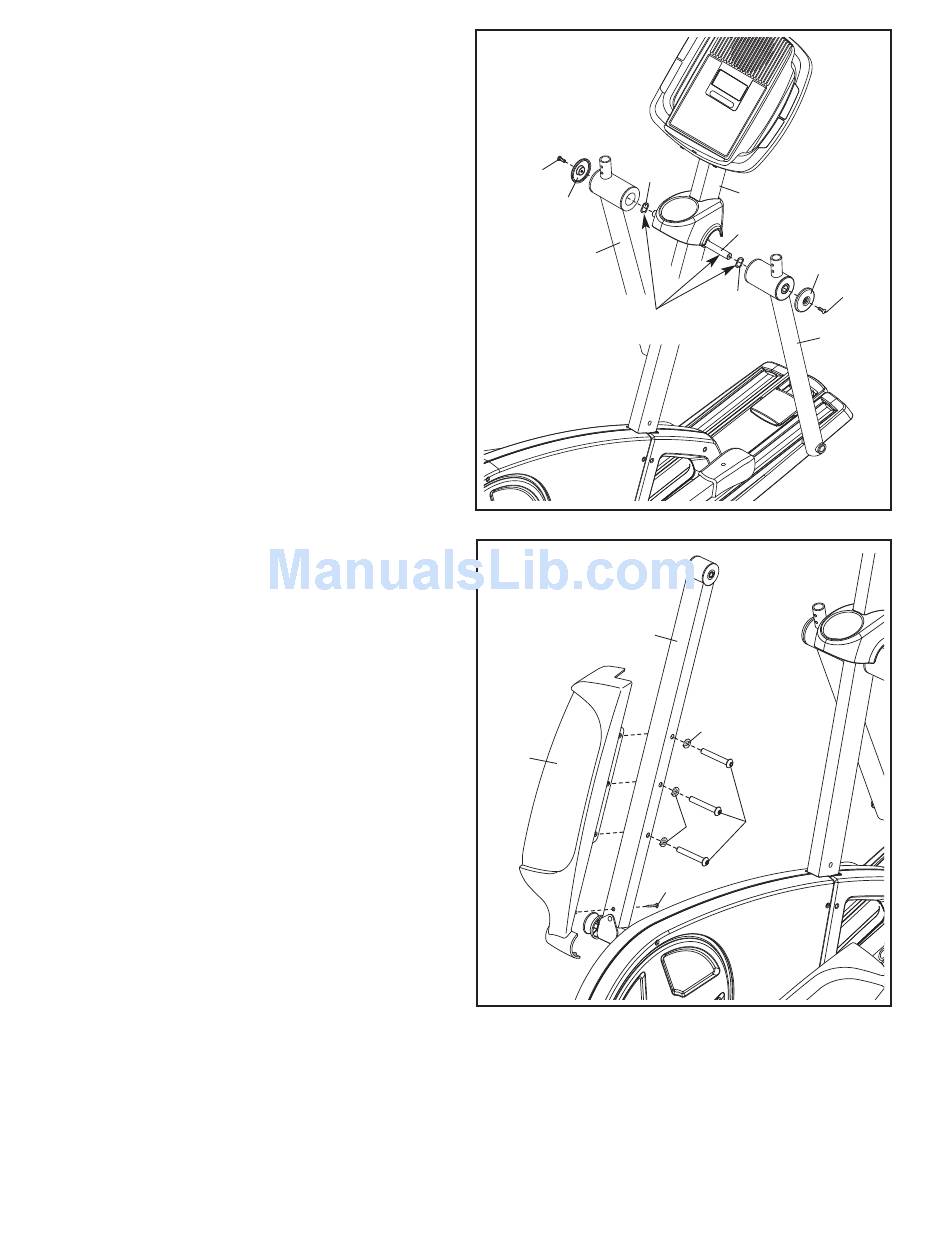

7. Apply a generous amount of the included
grease to the Pivot Axle (16). Then, apply a
small amount of grease to two Wave Washers
(88).
Insert the Pivot Axle (16) into the Upright (2).
Slide a Wave Washer (88) onto each end of the
Pivot Axle.
Identify the Left Upper Body Leg (6), which is
marked with an "L" sticker. Slide the Left Upper
Body Leg onto the Pivot Axle (16). Attach the
Left Upper Body Leg with an M6 x 16mm Button
Screw (80) and a Large Axle Cover (20). Attach
the Right Upper Body Leg (94) in the same
way.
8. Attach the Left Pedal (12) to the left Pedal Arm
(14) with three M10 x 70mm Button Screws
(75), three M10 Split Washers (78), and an M4
x 16mm Screw (84).
Repeat this step for the other side of the
elliptical exerciser.
7
88
80
20
6
Grease
8
14
12
9
2
16
20
88
94
78
75
78
84
80
