MAINTENANCE AND TROUBLESHOOTING

Inspect and tighten all parts of the elliptical exerciser
regularly. Replace any worn parts immediately.
To clean the elliptical exerciser, use a damp cloth and
a small amount of mild soap. IMPORTANT: To avoid
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
CONSOLE TROUBLESHOOTING
If the console displays become dim, the batteries
should be replaced; most console problems are the
result of low batteries. See assembly step 5 on page 8
for replacement instructions. If the handgrip pulse sen-
sor does not function properly, see step 5 on page 16.

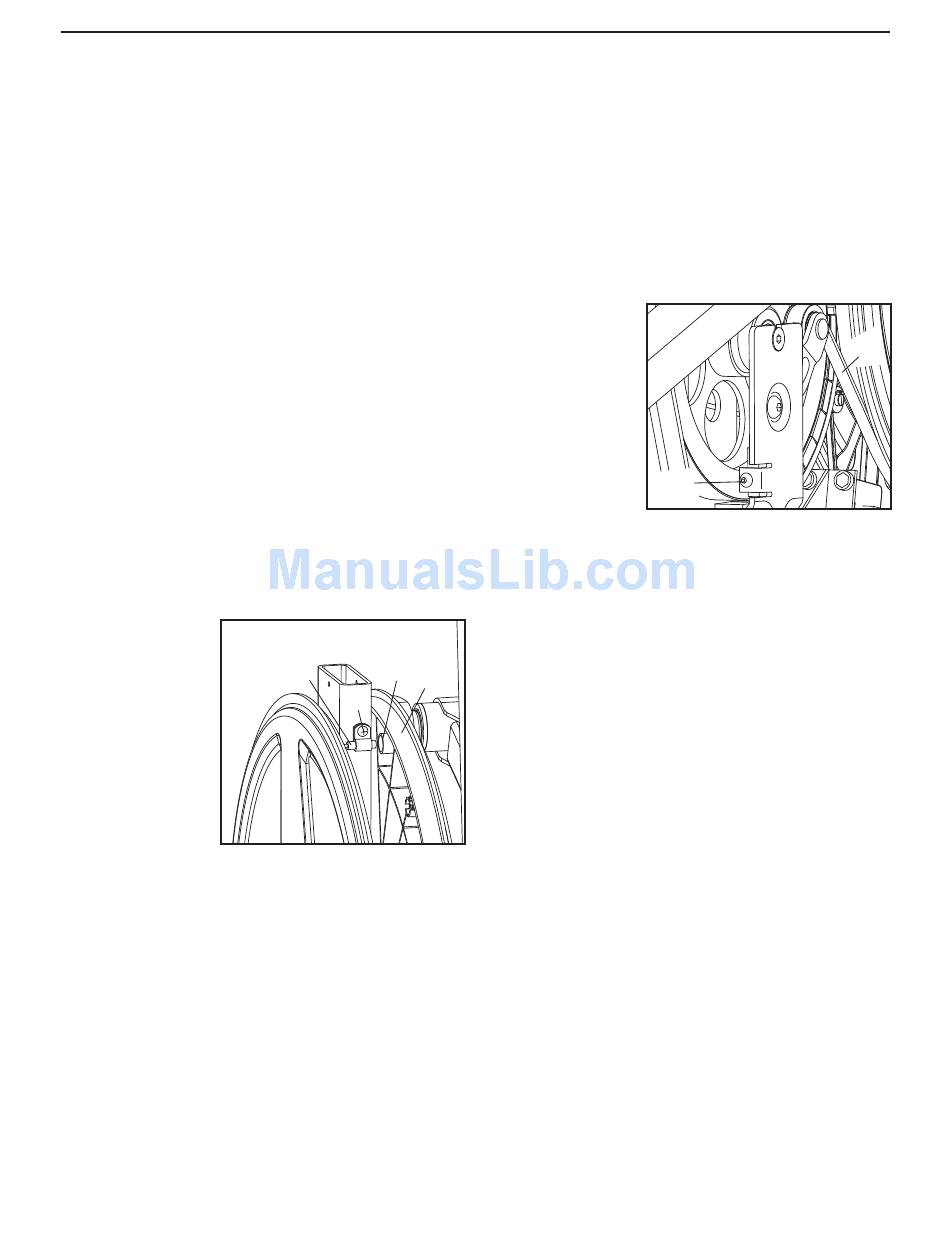

HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. First, remove all of
the screws from both shields; there are three sizes of
screws in the shields—note which size of screw
you remove from each hole. Then, gently pry the
shields away from the frame.
Next, locate the
Reed Switch (58).
Turn the Left
Pedal Disc (26)
until the Magnet
(41) is aligned
with the Reed
Switch. Loosen,
but do not
remove, the indi-
cated M4 x 16mm
Screw (84). Slide
the Reed Switch
slightly closer to or away from the Magnet, and then
retighten the Screw. Rock the Left Pedal Disc forward
and backward just enough that the Magnet passes the
Reed Switch repeatedly. Repeat until the console dis-
plays correct feedback. When the Reed Switch is cor-
rectly adjusted, reattach the shields. Note: If you have
questions as to which screw should be in which hole,
see EXPLODED DRAWING B and the PART LIST
near the end of this manual.
41 26
58
84
20
HOW TO ADJUST THE BELT
If you can feel the pedals slip while you are pedaling,
even when the resistance of the pedals is at the high-
est setting, the Belt (46) may need to be adjusted.
First, remove all the screws from both shields; there
are three sizes of screws in the shields—note
which size of screw you remove from each hole.
Then, gently pry the shields away from the frame.
Next, turn the Belt
Adjustment Screw
(72) until the Belt
(46) is tight.
Then, reattach
the shields. Note:
If you have ques-
tions as to which
screw should be
in which hole, see
EXPLODED
DRAWING B and
the PART LIST near the end of the manual.
72
46
