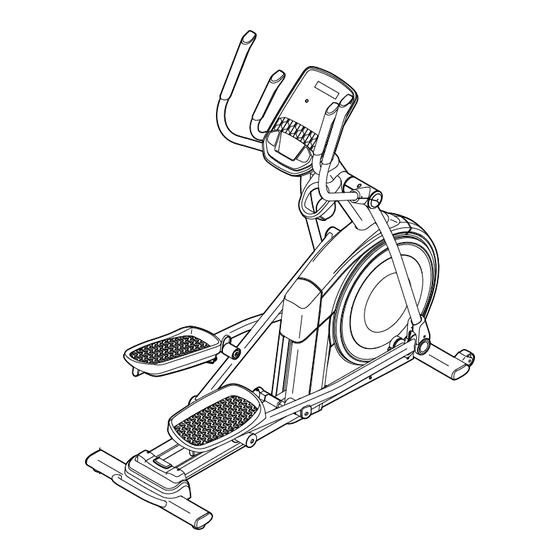

Model No. PFEL89720-INT.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
CUSTOMER SERVICE
UNITED KINGDOM
Call: 0330 123 1045
From Ireland: 053 92 36102
Website: iconsupport.eu
E-mail: csuk@iconeurope.com
Write:
ICON Health & Fitness, Ltd.
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: australiacc@iconfitness.com
Write:
ICON Health & Fitness
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
USER'S MANUAL
iconeurope.com

Advertisement

Table of Contents
loading

Related Manuals for Pro-Form PFEL89720-INT.0

Summary of Contents for Pro-Form PFEL89720-INT.0

  • Page 1 Model No. PFEL89720-INT.0 Serial No. USER’S MANUAL Write the serial number in the space above for reference. Serial Number Decal CUSTOMER SERVICE UNITED KINGDOM Call: 0330 123 1045 From Ireland: 053 92 36102 Website: iconsupport.eu E-mail: csuk@iconeurope.com Write: ICON Health & Fitness, Ltd.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARNING DECAL PLACEMENT ............. . .2 IMPORTANT PRECAUTIONS .

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read all important precautions and instructions in this manual and all warnings on your elliptical before using your elliptical. ICON assumes no responsibility for personal injury or property damage sus- tained by or through the use of this product.
  • Page 4 18. The elliptical does not have a freewheel; the 20. Over exercising may result in serious injury pedals will continue to move until the fly- or death. If you feel faint, if you become short wheel stops. Reduce your pedaling speed in of breath, or if you experience pain while a controlled way.

  • Page 5: Before You Begin

    BEFORE YOU BEGIN ® Thank you for selecting the revolutionary PROFORM reading this manual, please see the front cover of this ENDURANCE 720 E elliptical. The ENDURANCE 720 E manual. To help us assist you, note the product model elliptical provides an impressive selection of features number and serial number before contacting us.

  • Page 6: Part Identification Chart

    PART IDENTIFICATION CHART Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity needed for assembly.

  • Page 7: Assembly

    ASSEMBLY • Assembly requires two persons. • In addition to the included tool(s), assembly requires the following tools: • Place all parts in a cleared area and remove the one Phillips screwdriver packing materials. Do not dispose of the packing materials until you fi...
  • Page 8 2. With the help of a second person, place some of the packing materials (not shown) under the rear of the Frame (1). Have the second person hold the Frame to prevent it from tipping while you complete this step. If there are shipping supports attached to the rear of the Frame (1), remove the screws from the shipping supports, and discard the screws...
  • Page 9 4. Using a plastic bag to keep your fingers clean, apply some of the included grease to the right Crank Arm (20). Next, identify the Right Roller Arm (59), orient it as shown, and slide it onto the right Crank Arm (20).
  • Page 10 6. Locate the wire tie (A) in the lower end of the Upright (4). Tie the wire tie to the Upper Wire (110). Then, pull the upper end of the wire tie until the Upper Wire is routed through the Upright.
  • Page 11 8. Orient the Right Pedal Arm (58) as shown, and then apply grease to the axle. Next, insert the Right Pedal Arm (58) into the Right Upper Body Leg (60) and into the Right Roller Arm (59). Attach the Right Pedal Arm (58) to the Right Roller Arm (59) with an M8 x 20mm Flat Head Screw (120) and a Retainer (55);...
  • Page 12 10. See step 5. Tighten the four M10 x 25mm Screws (92). Next, untie and discard the wire tie on the Upper Avoid pinching Wire (110). the wires While a second person holds the Console (7) near the Upright (4), plug the Upper Wire (110) into the receptacle on the Console.
  • Page 13 12. Orient the Accessory Tray (37) as shown, and attach it to the Upright (4) with two M4 x 16mm Screws (101). 13. Orient a Lower Tray Cover (81) as shown, and attach it to the right side of the Accessory Tray (37) with two M4 x 16mm Screws (101).
  • Page 14 15. Orient the Front Shield Cover (117) and the Center Shield Cover (75) around the Upright (4). Then, attach them to each other with two M4 x 16mm Screws (101). Tip: Avoid pinching the wires. Press the Front Avoid pinching Shield Cover (117) and the Center Shield Cover the wires (75) into the Left and Right Shields (73, 74).
  • Page 15 17. Orient the Right Arm Front and Rear Covers (65, 66) around the Right Upper Body Leg (60) as shown, and then attach them with two M4 x 16mm Screws (101). Repeat this step on the other side of the elliptical.

  • Page 16: How To Plug In The Power Cord

    HOW TO PLUG IN THE POWER CORD This product must be earthed. If it should Follow the steps below to plug in the power cord. malfunction or break down, earthing provides a path of least resistance for electric current to reduce the risk 1.

  • Page 17: How To Use The Elliptical

    HOW TO USE THE ELLIPTICAL HOW TO MOVE THE ELLIPTICAL HOW TO LEVEL THE ELLIPTICAL Due to the size and weight of the elliptical, moving If the elliptical rocks slightly on your floor during use, it requires two persons. Stand in front of the elliptical, turn one or both of the leveling feet (D) beneath the hold the upright (A), and place one foot against one of rear of the frame or turn the leveling foot (E) under...
  • Page 18 HOW TO EXERCISE ON THE ELLIPTICAL THE OPTIONAL TABLET HOLDER To mount the elliptical, hold the handlebars (F) or The optional tablet the upper body arms (G) and step onto the pedal (H) holder (I) will hold that is in the lower position. Then, step onto the other your tablet securely pedal.

  • Page 19: How To Use The Console

    HOW TO USE THE CONSOLE CONSOLE DIAGRAM FEATURES OF THE CONSOLE Each iFit workout automatically changes the resistance of pedals and the incline of the ramp as an iFit coach The advanced console offers an array of features guides you through an immersive and effective video designed to make your workouts more effective and workout.
  • Page 20 HOW TO TURN ON THE POWER HOW TO USE THE MANUAL MODE IMPORTANT: If the elliptical has been exposed to 1. Begin pedaling or press any button on the cold temperatures, allow it to warm to room tem- console to turn on the console. perature before you turn on the power.
  • Page 21 4. Follow your progress with the displays. Scan mode—The console also has a scan mode that will display workout information in a repeat- The display can show the following workout ing cycle. To turn on the scan mode, press the information: Multi-scan button (C);...
  • Page 22 To pause the console, simply stop pedaling. When 6. Turn on the fan if desired. the console is paused, the time will flash in the display. To continue your workout, simply resume The fan has pedaling. several speed settings. Press the Note: The console can show speed and distance Fan increase and in standard or metric units of measurement.
  • Page 23 HOW TO USE AN IFIT WORKOUT 4. Select an iFit workout. The console offers access to a large and varied library In the iFit app, touch the buttons at the bottom of of iFit workouts when you download the iFit app to your the screen to select either the main menu (Home smart device and connect it to the console.
  • Page 24 To pause the workout, simply touch the screen HOW TO CONNECT YOUR HEART RATE MONITOR or stop pedaling. To continue the workout, simply TO THE CONSOLE resume pedaling. The console is compatible with all Bluetooth Smart To end the workout, touch the screen to pause the heart rate monitors.
  • Page 25 HOW TO CHANGE CONSOLE SETTINGS of measurement, press the Std/Met button repeat- edly. To view workout information in standard units, 1. Select the settings mode. select STD. To view workout information in metric units, select MET. If you are using the manual mode or an iFit work- out, you must stop pedaling and exit the workout before you can select the settings mode.
  • Page 26 Contrast Level—The currently selected contrast THE OPTIONAL CHEST HEART RATE MONITOR level will appear in the display. Press the Resistance increase and decrease buttons to Whether your adjust the contrast level. goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the...

  • Page 27: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING MAINTENANCE CONSOLE TROUBLESHOOTING Regular maintenance is important for optimal If the console does not turn on, make sure that the performance and to reduce wear. Inspect and properly power cord is fully plugged in and that the power tighten all parts each time the elliptical is used.
  • Page 28 HOW TO ADJUST THE REED SWITCH Next, slightly loosen the indicated two M4 x 12mm Self-tapping Screws (50). Slide the Reed Switch (38) If the console does not display correct feedback, the slightly closer to or away from the Magnet (43), and reed switch should be adjusted.
  • Page 29 HOW TO ADJUST THE DRIVE BELT Next, locate and loosen the If the pedals slip while you are pedaling, even while Idler Screw (89). the resistance is adjusted to the highest level, the drive Tighten the Drive belt may need to be adjusted. To adjust the drive belt, Belt Adjustment first press the power switch and unplug the power Screw (91) until...

  • Page 30: Exercise Guidelines

    EXERCISE GUIDELINES Aerobic Exercise—If your goal is to strengthen your WARNING: cardiovascular system, you must perform aerobic Before beginning this exercise, which is activity that requires large amounts or any exercise program, consult your physi- of oxygen for prolonged periods of time. For aerobic cian.

  • Page 31: Part List

    PART LIST Model No. PFEL89720-INT.0 R0121A Key No. Qty. Description Key No. Qty. Description Frame/Ramp Roller Rear Stabilizer Pedal Arm Cap Access Cover Axle Cover Upright Pivot Spacer M4 x 19mm Screw Retainer Front Stabilizer Roller Arm Bushing Console Large Arm Bearing...
  • Page 32 Key No. Qty. Description Key No. Qty. Description M4 x 16mm Screw Power Cord M8 Locknut M8 x 20mm Flat Head Screw M6 x 12mm Screw Frame Bushing M10 x 115mm Screw M10 x 47mm Bolt M4 x 25mm Flange Screw Small Arm Bearing Lower Ramp Cover M4 x 16mm Machine Screw...

  • Page 33: Exploded Drawing

    EXPLODED DRAWING A Model No. PFEL89720-INT.0 R0121A...
  • Page 34 EXPLODED DRAWING B Model No. PFEL89720-INT.0 R0121A...
  • Page 35 EXPLODED DRAWING C Model No. PFEL89720-INT.0 R0121A...

  • Page 36: Ordering Replacement Parts

    ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
