ASSEMBLY

To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included hex keys, assembly requires a Phillips screwdriver
wrench , and a rubber mallet

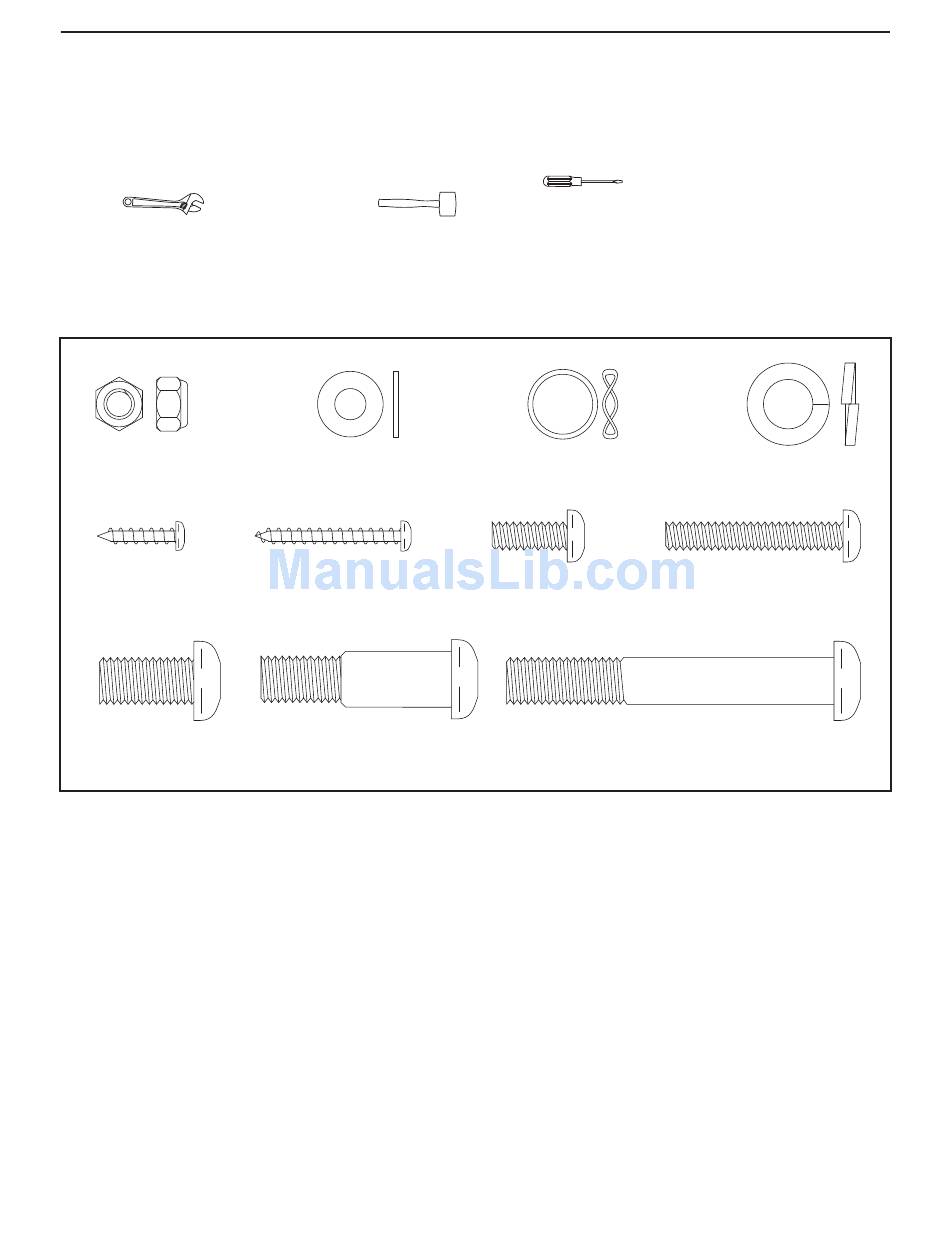

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-
ses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The
number following the parentheses is the quantity needed for assembly. Note: Some small parts may have
been pre-assembled. If a part is not in the hardware kit, check to see if it has been preassembled.
M6 Locknut
(77)–4
M4 x 16mm
Screw (84)–14
M10 x 20mm Button
Screw (79)–4
M6 Washer
(118)–4
M4 x 32mm Screw
(95)–2
M10 x 41mm Shoulder
Screw (63)–2
, an adjustable
.
Wave Washer
(88)–6
M6 x 16mm Button
Screw (80)–6
M10 x 70mm Button Screw (75)–6
5
M10 Split
Washer (78)–10
M6 x 38mm Button
Bolt (76)–4
