MULTI FORMAT LCD MONITOR
CAUTION
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock. Do
not remove cover (or back). No user
serviceable parts inside. Refer servicing
to qualified service personnel.
The lightning flash with arrowhead
symbol, within an equilateral triangle is
intended to alert the user to the presence
of uninsulated "dangerous voltage"
within the product's enclosure that may
be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.
INSTRUCTIONS
Table of Contents
Safety Precautions .............................................. 2
IMPORTANT SAFEGUARDS ........................... 2
Installation ............................................................ 4
Daily Operations / Connections ......................... 6
Front panel ....................................................... 6
Rear panel ........................................................ 8
Available signals ............................................... 9
Menu Configuration-MAIN MENU .................. 10
Menu Configuration-SET-UP MENU ............... 14
External Control ................................................. 16
About the external control .............................. 16
Using the MAKE/TRIGGER system ............... 17
Using the serial communication ..................... 18
Troubleshooting ................................................. 19
Self-check program ........................................ 20
Maintenance ....................................................... 20
Specifications .................................................... 21
General ........................................................... 21
Input/output terminals ..................................... 21
Dimensions ..................................................... 22
LCT2500-001A-H
Advertisement
Table of Contents
Related Manuals for JVC DT-V17L3DY
Summary of Contents for JVC DT-V17L3DY
-
Page 1: Table Of Contents

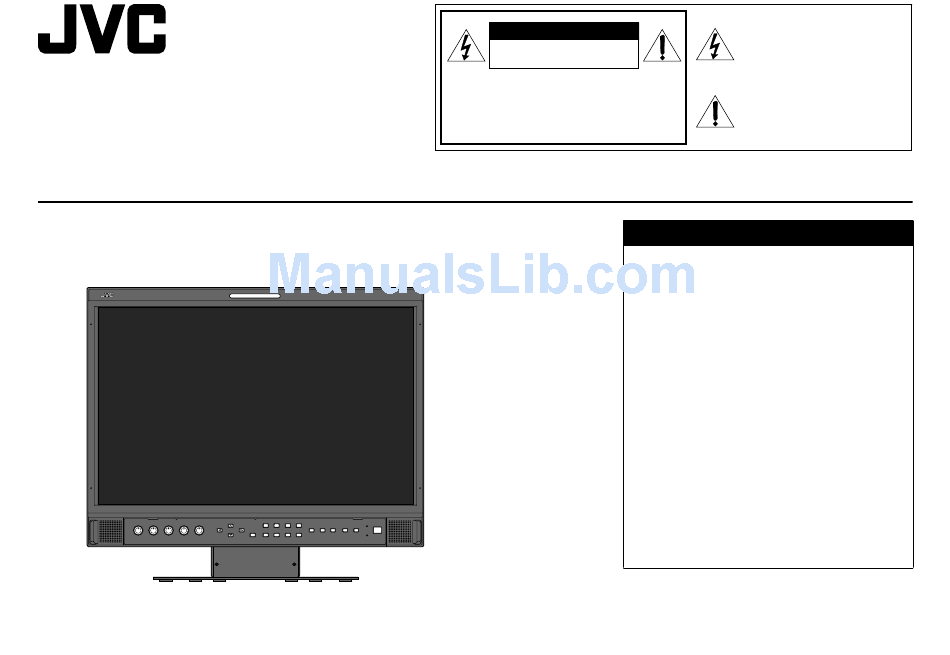

DT-V17L3DY MULTI FORMAT LCD MONITOR CAUTION RISK OF ELECTRICAL SHOCK DO NOT OPEN CAUTION: To reduce the risk of electric shock. Do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel. Safety Precautions ... 2 IMPORTANT SAFEGUARDS ... -
Page 2: Safety Precautions
Safety Precautions WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. IMPORTANT SAFEGUARDS Electrical energy can perform many useful functions. This unit has been engineered and manufactured to assure your personal safety. -
Page 3: Important Safety Instructions
FCC NOTICE CAUTION: Changes or modifications not approved by JVC could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 4: Installation
Installation CAUTION • Do not rest your arm on the monitor or lean against the monitor. • Do not touch the LCD panel when installing the monitor. • Be sure to install the monitor securely to prevent the monitor from falling over, which may cause damage to the monitor or injury. - Page 5 To adjust the stand height To change the stand height, detach the stand from the monitor (☞ “To detach the stand” on page 4). Then, change the position of the stand plate according to the stand height you want by choosing the screw holes to use. <Higher position>...
-
Page 6: Daily Operations / Connections
Daily Operations / Connections 7 Front panel • “NO EFFECT” is displayed when you press a button which is not available for the current input or signal format (the lamp lights even when the function does not Tally lamp • The items controlled by the MAKE system cannot be controlled by the buttons on the front panel (“REMOTE ON” is displayed and the lamps do not light). This lamp is controlled by the tally function of the MAKE/TRIGGER terminal. - Page 7 Menu Operations Audio Channel Selection Select audio channels emitted from the speakers Display the menu. (L/R) and the AUDIO (MONITOR OUT) (OUT1(L)/ To display the MAIN MENU OUT2(R)) terminals, when EMBEDDED AUDIO \ Press MENU button. signals come in to the E. AUDIO HD/SD SDI To display the SET-UP MENU terminal (IN1 or IN2) and SDI input (1 or 2) is \ Press...
-
Page 8: Rear Panel
Daily Operations / Connections 7 Rear panel Carry handle Use this handle when carrying the monitor. 1 REMOTE terminal Terminal for controlling the monitor by an external control. (☞ “External Control” on page 16) 2 VIDEO terminals (BNC) Input (IN) and output (OUT) terminals for the composite video signals. -
Page 9: Available Signals
7 Available signals The following signals are available for this monitor. Video signals Signal format shown in the COMPO. Signal name status display VIDEO (Analog (☞ page 7) component)* √ NTSC NTSC √ B/W50 B/W50 √ B/W60 B/W60 √ 480/60i 480/60i —... -
Page 10: Menu Configuration-Main Menu
Menu Configuration—MAIN MENU For the operation procedure, see page 7. Operation guide Shows the buttons for each operation. • The menu automatically disappears in about 30 seconds after the previous operation. • Some items may not appear on the menu depending on the input or the input signal. •... - Page 11 Operation guide Shows the buttons for each operation. • The menu automatically disappears in about 30 seconds after the previous operation. • Some items may not appear on the menu depending on the input or the input signal. • The items controlled by the MAKE system do not appear on the menu. NOTE Setting of “AREA MARKER”, “SAFETY MARKER”, “R-AREA MARKER”, “R-SAFETY MARKER”...
- Page 12 Menu Configuration—MAIN MENU Adjustment bar Displayed when selecting “BALANCE.” Operation guide Shows the buttons for each operation. • The menu automatically disappears in about 30 seconds after the previous operation. • Some items may not appear on the menu depending on the input or the input signal. •...
- Page 13 Operation guide Shows the buttons for each operation. NOTE Example of the wave form monitor Ex.: When “MARKING” is set to “ON” and “LEVEL” is set to “080” White • The wave which goes over the value set on “LEVEL” is indicated in Red.
-
Page 14: Menu Configuration-Set-Up Menu
Menu Configuration—SET-UP MENU For the operation procedure, see page 7. Operation guide Shows the buttons for each operation. • The menu automatically disappears in about 30 seconds after the previous operation. • Some items may not appear on the menu depending on the input or the input signal. - Page 15 Operation guide Shows the buttons for each operation. • The menu automatically disappears in about 30 seconds after the previous operation. • Some items may not appear on the menu depending on the input or the input signal. • The items controlled by the MAKE system do not appear on the menu. NOTE Setting of “CHARACTER SET.”...
-
Page 16: External Control
External Control 7 About the external control This monitor has three external control terminals. • MAKE/TRIGGER terminal (RJ-45): The following external control systems are available. (1) MAKE (make contact) system: Controls the monitor by short-circuiting the corresponding pin terminal to the GND pin terminal, or disconnecting (opening) it. -
Page 17: Using The Make/Trigger System
7 Using the MAKE/TRIGGER system The MAKE/TRIGGER terminal is configured as follows. You can assign a function to each pin terminal in “REMOTE SETTING” (☞ “PIN1, PIN2, PIN3, PIN4, PIN5” in “PARALLEL TYPE” on page 15). • You cannot change the functions assigned to the pin terminals from 6th to 8th. Pin No. -
Page 18: Using The Serial Communication
External Control (cont.) 7 Using the serial communication You can control the monitor from a personal computer etc. via the RS-485 or RS-232C terminal. • Consult your dealer for the details of the external control specification. <Communication specifications> Terminal Input terminal Cable specification RS-485... -
Page 19: Troubleshooting
Troubleshooting Solutions to common problems related to the monitor are described here. If none of the solutions presented here solve the problem, unplug the monitor and consult an authorized dealer or service center. Symptom Probable cause and corrective action • Press the button. -
Page 20: Self-Check Program
Troubleshooting (cont.) 7 Self-check program This monitor has a self-check function, which allows it to detect malfunctions and alert you. This makes troubleshooting easier. Whenever a problem occurs, one or some of the INPUT SELECT lamps will flash. If this happens, follow the steps below and contact your dealer to resolve the problem. -
Page 21: Specifications
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Notice on transportation This monitor is precision equipment and needs dedicated packing material for transportation. Never use any packing material supplied from sources other than JVC or JVC-authorized dealers. 7 Input/output terminals VIDEO Input/output of composite signal: 1 line, BNC connector x 2, 1 V(p-p), 75 Ω... -
Page 22: Dimensions
Specifications (cont.) 7 Dimensions Unit: mm (inch) <Front view> 395 (15 5/8) 240 (9 1/2) * at the higher position ** at the lower position <Side view> 86 (3 1/2 ) 40 (1 5/8) 1.5 (1/16) 34 (1 3/8) 199 (7 7/8) <Rear view>... - Page 24 DT-V17L3DY MULTI FORMAT LCD MONITOR © 2008 Victor Company of Japan, Limited 1010TKH-MW-VP...
