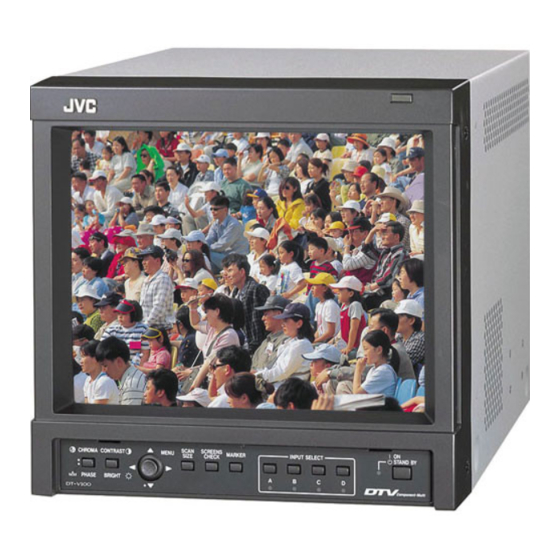

MULTI-FORMAT MONITOR
DT-V100CG
INSTRUCTIONS
The supplied wide mask is attached to the monitor in the
illustration on the right.
LCT1811-001A

Advertisement

Table of Contents
loading

Summary of Contents for JVC DT-V100CG

  • Page 1 MULTI-FORMAT MONITOR DT-V100CG INSTRUCTIONS The supplied wide mask is attached to the monitor in the illustration on the right. LCT1811-001A...
  • Page 2: Safety Precautions

    Thank you for purchasing this JVC Multi-Format Monitor. Before using it, read and follow all instructions carefully to take full advantage of the monitor’s capabilities. SAFETY PRECAUTIONS In order to prevent any fatal accidents caused by misoperation or mishandling the monitor, be fully aware of all the following precautions.
  • Page 3: Table Of Contents

    POWER CONNECTION The power supply voltage rating of this product is AC 120 V (For U.S.A. and Canada only) and AC 220-240 V (For European countries, United Kingdom, or China), the power cord attached conforms to the following power supply voltage and countries. Use only the power cord designated to ensure Safety and EMC regulations of each countries.
  • Page 4: Controls And Features

    Controls and Features Front Panel Tally lamp This lamp is controlled by the tally function of the MAKE/TRIGGER terminal. “How to Use the MAKE/TRIGGER Terminal” on page 19 • You can set the lamp color to red or green in “TALLY SELECT.”...
  • Page 5: Power Lamp

    SCAN SIZE button Reduces the screen size (under-scan) so that the whole screen is displayed. SCREENS CHECK button Each time you press this button, the screen changes in the following order: Normal screen[Monochrome screen[ Red screen[Green screen[Blue screen[ (back to the beginning) MARKER button Turns the MARKER function ON/OFF.
  • Page 6: Rear Panel

    Controls and Features Rear Panel AC inlet Power input connector. Connect the provided AC power cord to an AC outlet (120 V/220-240 V AC, 50 Hz/60 Hz). * Attach the provided Power Cord Holder to prevent accidental disconnection of the AC power cord. Page 8 Main power switch Turns on and off the main power.
  • Page 7: Preparation

    Preparation Attaching the Wide Mask A wide mask is provided with the monitor. This changes the viewable screen area to the 16:9 aspect ratio. Caution: • The wide mask cannot be attached to the monitor after the monitor is mounted in a rack. Mount the wide mask before installing the monitor in a rack.
  • Page 8: Attaching The Power Cord Holder

    Preparation Attaching the Power Cord Holder • The provided Power Cord Holder prevents accidental disconnection of the AC power cord from the AC inlet. • The Power Cord Holder consists of two parts; a case and a cover. 1. Attach the Power Cord Holder case to the AC inlet on the back of the monitor with 2 screws (provided).
  • Page 9: Basic Menu Operations (Main Menu, Set-Up Menu)

    Basic Menu Operations (MAIN MENU, SET-UP MENU) About the Menu Screens This monitor features MAIN MENU which contains the functions normally used and SET-UP MENU which contains the initial settings of the monitor. MAIN MENU Items Functions APERTURE CONTROL Compensates the frequency characteristics of the input video signal. sub menu SELECT Selects the positions and the contents of the sub-menu display.
  • Page 10: Displaying The Menu

    Basic Menu Operations (MAIN MENU, SET-UP MENU) (cont.) Displaying the Menu Screens To display MAIN MENU Press the MENU control on the front panel. To display SET-UP MENU Press the CHROMA/PHASE button while keeping to move the MENU control to NOTES: •...
  • Page 11: How To Use Main Menu

    How to Use MAIN MENU MAIN MENU Screens MAIN MENU Move the MENU control page 12 page 13 page 13 NOTE: Some items may not appear on the menu depending on the input (or the input unit if it is attached) or the input signal. Those items are not available to use.
  • Page 12 How to Use MAIN MENU Functions, Contents, and Adjustment Range of items APERTURE CONTROL Compensates the frequency characteristics of the input video signal. LEVEL Adjusts the compensate value. The higher the number is, the larger the compensate value gets. • 00 O 10 CONTROL FREQ.
  • Page 13 ASPECT SELECT/R-ASPECT SELECT Selects the aspect ratio. • 4:3/13:9/14:9 13:9 SAFETY MARKER/R-SAFETY MARKER Displays dotted lines to indicate the areas corresponding to 80%, 88%, or 90% of the screen size (the aspect ratio setting in “ASPECT SELECT/ R-ASPECT SELECT”). OFF: SAFETY MARKER does not function. 80%: Marked area is 80% of the screen.
  • Page 14: How To Use Set-Up Menu

    How to Use SET-UP MENU SET-UP MENU Screens SET-UP MENU Move the MENU control page 18 NOTE: Some items may not appear on the menu depending on the input (or the input unit if it is attached) or the input signal. Those items are not available to use.
  • Page 15 Functions, Contents, and Adjustment Range of items FUNCTION SETTING Sets the control systems for the COLOR SYSTEM, synchronized signal, RUSH DELAY TIME, colors and functions of the tally lamp, groups of the audio output modes, and MAKE/ TRIGGER terminal. • Can be also used to adjust the zooming position of the picture for the component signal input, and check the...
  • Page 16 How to Use SET-UP MENU HOUR METER X100h Displays the total usage time of the monitor in hundred-hour units. • 000 O 655 NOTES: • When the timer passes 655, it returns to 000. • The timer does not count the usage time under one hour. PICTURE SUB ADJ.
  • Page 17 SIZE/POSI. ADJ. Adjusts the size or position of the picture. • Can also be used to adjust the zoomed picture size. H. SIZE Adjusts the horizontal screen size. • –20 O 00 O +20 (*) –: Reduces the screen size horizontally. +: Enlarges the screen size horizontally.
  • Page 18 How to Use SET-UP MENU STATUS DISPLAY Sets the items related to the display screens, such as the status display or the AUDIO LEVEL METER display. • Can also be used to set the 1080/60i or 1035/60i signal displayed correctly. STATUS DISPLAY Sets the status display.
  • Page 19: How To Use The External Control

    How to Use the External Control About the External Control The Multi-Format Monitor has two external control terminals. One is the MAKE/TRIGGER terminal, which allows the monitor to be controlled by the MAKE (make contact) or TRIG. (trigger) method selected in the function setting. MAKE (make contact system): Controls the function by short-circuiting the corresponding pin terminal to the GND pin terminal, or disconnecting (opening) it.
  • Page 20 How to Use the External Control How to Use the RS-485 Terminal You can control the monitor from your PC via the RS-485 terminal. For details on operating the monitor from the PC, consult the service center. 1. Cable Prepare a straight cable with a RJ-45 connector. 2.
  • Page 21: Troubleshooting

    Troubleshooting Solutions to common problems related to your monitor are described here. If none of the solutions presented here solve the problem, unplug the monitor and consult a JVC-authorized dealer or service center for assistance. Problems Points to be checked...
  • Page 22: Self-Check Indications

    Troubleshooting Problems Points to be checked Has the picture position, size, Wrong picture distortion, or tilt been changed? position, wrong picture size Has the SCAN SIZE button been pressed? The items which are not available for Some items do the current input (input unit) or the not appear on the current input signal do not appear on menu...
  • Page 23: Specifications

    Specifications DT-V100CG Model Multi-Format Monitor Type 10" measured diagonally Picture Tube Width Effective Screen Size Height Diagonal H : 15 kHz Scanning Frequency V : 50 Hz/60 Hz 6 MHz (–3 dB) Video Band Video: Horizontal Resolution 1080/60i: Input/Output Terminals Composite signal input/output terminals VIDEO A/VIDEO B: 2 lines, BNC connector X 4 (1 Vp-p, 75 Ω)
  • Page 24 © 2005 Victor Company of Japan, Limited 0505MKH-MW-VP...

This manual is also suitable for:

Dt-v100cg/eDt-v100cg/u
