Attaching and
Adjusting the
Support Bracket
Low-Profile and
High-Profile Positions

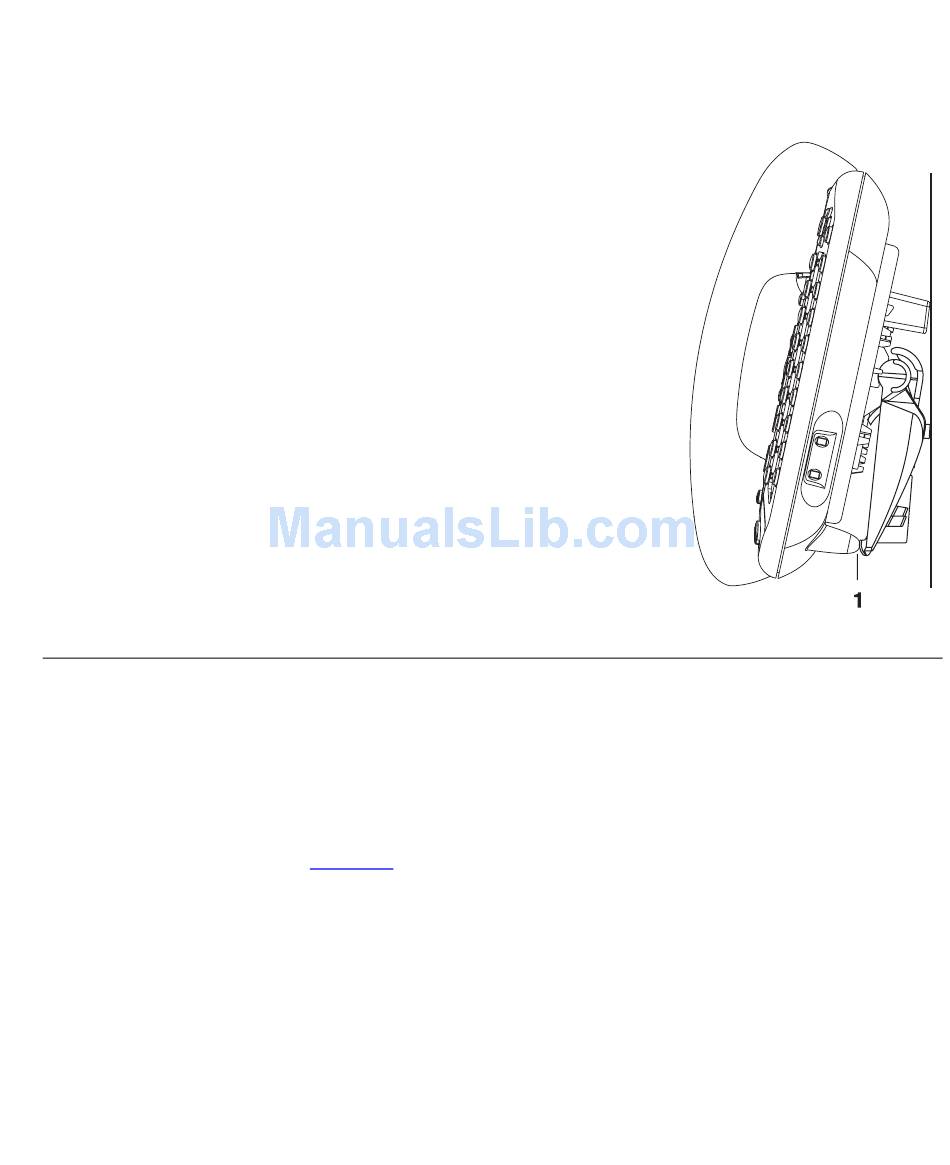

Figure 16 Wall Mounting a 3102 Telephone
When you mount a 3101, 3101SP, or 3102
telephone on a wall, attach the support
bracket and adjust it so that the bottom of
the support bracket rests against the
bottom supports on the telephone, 1.
Safe wall mounting requires 3/4-inch
drywall and 1.5-inch drywall screws.
The fixed support bracket is supplied with the VCX 2101 and VCX 2102
telephones. The telephone support bracket can be attached in low
profile, high profile, or wall mount positions.
Tabs on the underside of the telephone slip into slots on the bracket, and
the opposite mounting points snap into place.
In Figure 17, the support bracket is outlined to show you how to install
the VCX Telephone in the low-profile and high-profile desktop positions.

Attaching and Adjusting the Support Bracket

119
