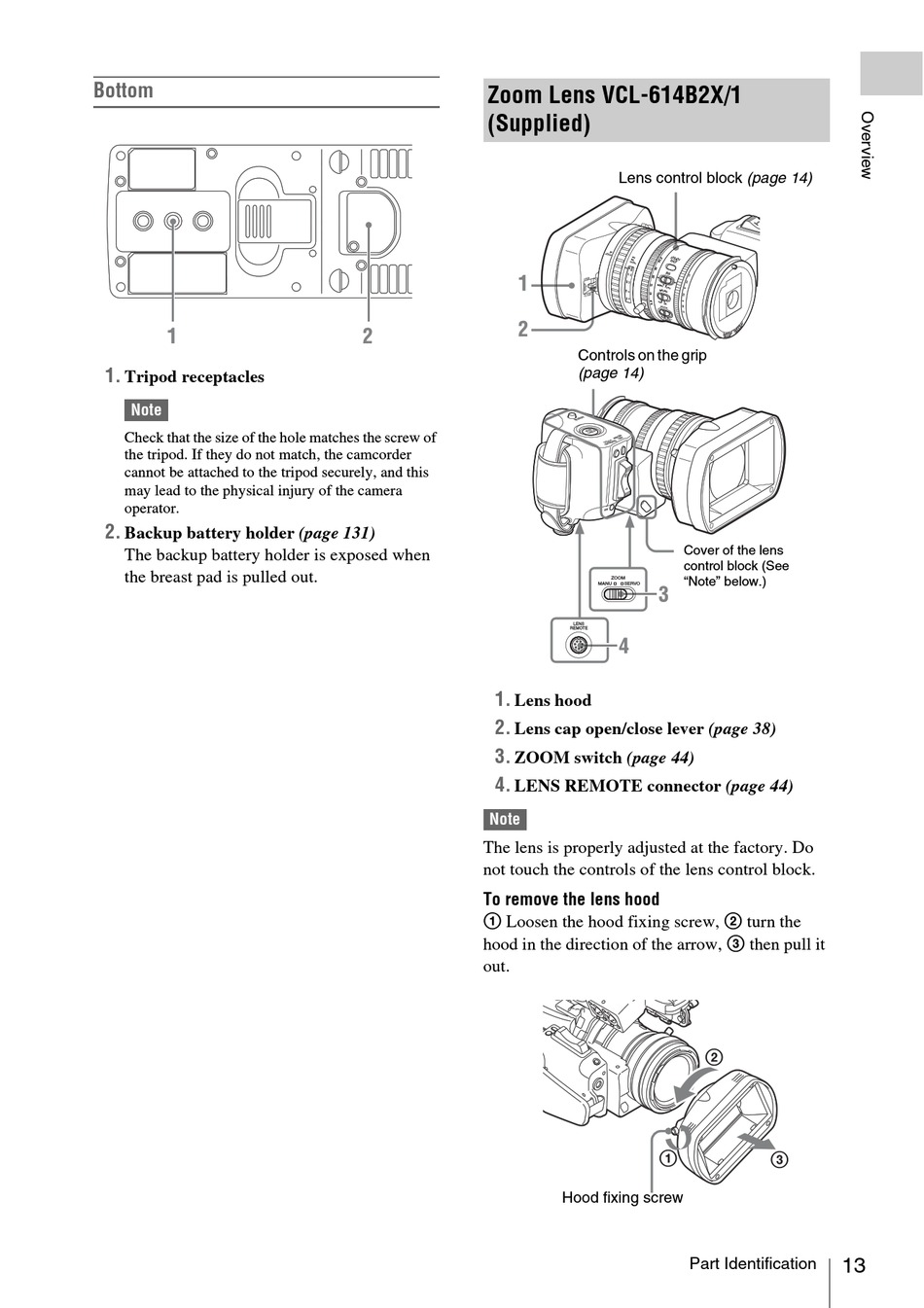

Zoom Lens Vcl-614B2X/1 (Supplied) - Sony PMW-300K1 Operating Instructions Manual

Bottom
1.
Tripod receptacles
Note
Check that the size of the hole matches the screw of
the tripod. If they do not match, the camcorder
cannot be attached to the tripod securely, and this
may lead to the physical injury of the camera
operator.
2.
Backup battery holder (page 131)
The backup battery holder is exposed when
the breast pad is pulled out.
Zoom Lens VCL-614B2X/1
(Supplied)
Lens control block (page 14)
Controls on the grip
(page 14)
ZOOM
MANU SERVO
LENS
REMOTE
1.
Lens hood
2.
Lens cap open/close lever (page 38)
3.
ZOOM switch (page 44)
4.
LENS REMOTE connector (page 44)
Note
The lens is properly adjusted at the factory. Do
not touch the controls of the lens control block.
To remove the lens hood
1 Loosen the hood fixing screw, 2 turn the
hood in the direction of the arrow, 3 then pull it
out.
Hood fixing screw
OF F
ON
Cover of the lens
control block (See
"Note" below.)
2
1
3
Part Identification 13
