Page 1: Quick Start Guide
NS3702-24P-4S Quick Start Guide P/N 1072834 • REV 00.01 • ISS 14JUL14... - Page 2 © 2014 United Technologies Corporation Copyright Interlogix is part of UTC Building & Industrial Systems, Inc. a unit of United Technologies Corporation. All rights reserved. The NS3702-24P-4S name and logo are trademarks of United Technologies. Trademarks and patents Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.
-
Page 3: Table Of Contents
Table of Contents 1. PACKAGE CONTENTS..............................4 2. REQUIREMENTS ................................5 3. TERMINAL SETUP................................6 4. LOGON TO THE CONSOLE .............................. 7 5. CONFIGURE IP ADDRESS..............................8 6. STARTING WEB MANAGEMENT ........................... 10 7. -
Page 4: Package Contents

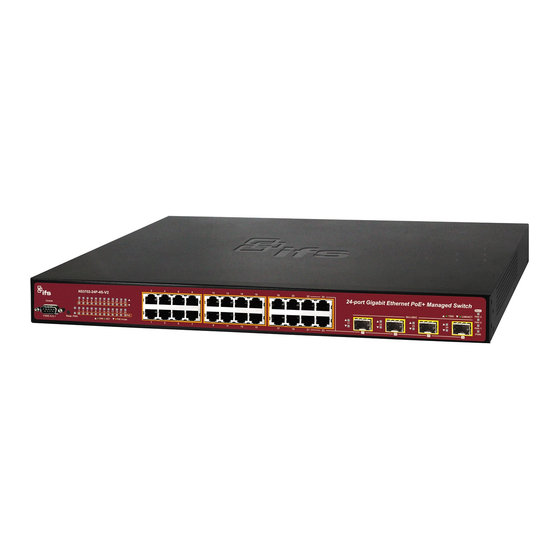

1. Package Contents Thank you for purchasing NS3702-24P-4S - 24-Port Gigabit 802.3at PoE+ Managed Switch. The description of this model is as follows: 24-Port 10/100/1000Base-T 802.3at PoE + NS3702-24P-4S 4-Port Shared SFP Managed Switch (440W) “Managed Switch” mentioned in this quick installation guide refers to the above three models. -
Page 5: Requirements
2. Requirements Workstations running Windows XP/2003/Vista/7/8/2008, MAC OS9 or later, Linux, UNIX or other platforms are compatible with TCP/IP protocols. Workstation is installed with Ethernet NIC (Network Interface Card). Serial Port Connect (Terminal) The above PC is with COM Port (DB9). ... -
Page 6: Terminal Setup
3. Terminal Setup To configure the system, connect a serial cable to a COM port on a PC or notebook computer and to serial (console) port of the Managed Switch. The console port of the Managed Switch is DCE already. So, you can connect the console port directly to the PC without the need of Null Modem. -
Page 7: Logon To The Console
4. Logon to the Console Once the terminal has been connected to the device, power on the Managed Switch and the terminal will display “running testing procedures”. Then, the following message asks for the login username and password. The factory default username and password are admin as the following and the login screen in Figure 4-1 appears. -
Page 8: Configure Ip Address
Show the current IP Address 1. On “NS3702-24P-4S #” prompt, enter “show ip interface brief”. The screen displays the current IP address, Subnet Mask and Gateway as shown in Figure 5-1. Figure 5-1: Display of IP Information - 8 -... - Page 9 Configuration of IP Address 3. On “NS3702-24P-4S # ” prompt, enter the following command and press <Enter> as shown in Figure 5-2. ”NS3702-24P-4S:/IP> setup 192.168.0.101 255.255.255.0 The previous command would apply the following settings for the Managed Switch. IP Address: 192.168.0.101 Subnet Mask: 255.255.255.0...
-
Page 10: Starting Web Management
6. Starting Web Management The following shows how to start up the Web Management of the Managed Switch. Note the Managed Switch is configured through an Ethernet connection. Please make sure the manager PC must be set on the same IP subnet address. For exampl e, the defa ult IP addr ess of the Manag ed S witch is 192.168.0.100, the n the mana ger PC shoul d be set at 192.168.0.x (where x is a number between 1 and 254, except 100), and the default subnet mask is 255.255.255.0. - Page 11 Logging in the Managed Switch Use Internet Explorer 7.0 or above Web browser. Enter IP address http://192.168.0.100 (the factory default IP address or the on e that you have just changed in console) to access the Web interface. When the following dialog box appears, please enter the default username and password “admin” (or the password you have changed via console).
- Page 12 If you are not familiar with Switch functions or the related parameter, press “Help icon” anytime in the Web page to get the help description. Now, you can use the Web management interface to continue the switch management or manage the switch by console interface. Please refer to the user’s manual for more details.
-
Page 13: Customer Support
7. Customer Support Thank you for purchasing INTERLOGIX products. You can browse our online FAQ resource on the INTERLOGIX website first to check if it could solve your issue. If you need more support information, please contact INTERLOGIX.com/support for the support team.
