IFS NS3050-8T User Manual

Package contents

Thank you for purchasing the NS3050-8T IFS 8-Port
10/100/1000T Industrial Gigabit Ethernet Switch.
Unless specified, the term "industrial gigabit Ethernet
switch" mentioned in this user manual refers to the NS3050-
8T.
Open the box of the industrial gigabit Ethernet switch and
carefully unpack it. The box should contain the following items:
•
Industrial gigabit ethernet switch × 1
•
CD with user manual × 1
•
DIN rail kit × 1
•
Wall-mount kit × 1
If any of these are missing or damaged, please contact your
dealer immediately. If possible, retain the carton including the
original packing material, and use them again to repack the
product in case there is a need to return it to us for repair.

Hardware introduction

Physical dimensions
NS3050-8T dimensions (W × D × H): 135 × 87 × 32 mm
See Figure 4 on page 6.

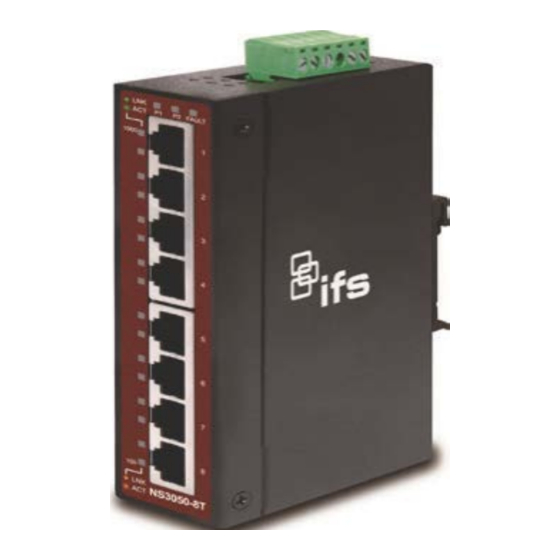

Switch front panel

The front panel of the industrial gigabit Ethernet switch
consists of five or eight auto-sensing 10/100/1000Mbps
Ethernet RJ45 ports. The LED indicators are also located on
the RJ45 ports of the industrial gigabit Ethernet switch.
© 2019 United Technologies Corporation.
Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation. All rights reserved.
Figure 1: NS3050-8T front panel

LED indicators

LED
Color
Function
P1
Green
Lit: indicates power 1 has power.
P2
Green
Lit: indicates power 2 has power.
FAULT
Red
Lit: indicates either power 1 or power 2 has
no power.
1000
Green
Lit: indicates the port is successfully
connecting to the network at 1000Mbps.
Off: indicates that the port is successfully
connecting to the network at 10Mbps or
100Mbps.
Blinking: indicates that the port is actively
sending or receiving data.
100
Orange
Lit: indicates the port is successfully
connecting to the network at 100Mbps or
10Mbps.
Off: indicates that the port is successfully
connecting to the network at 1000Mbps.
Blinking: indicates that the port is actively
sending or receiving data.

Switch upper panel

The upper panel of the industrial gigabit Ethernet switch
consists of one terminal block connector within two DC power
inputs.
Figure 2 on page 2 shows the upper panel of the industrial
gigabit Ethernet switch.
P/N 1073226-EN • REV C • ISS 25JAN19

Advertisement

loading

Related Manuals for Interlogix IFS NS3050-8T

Summary of Contents for Interlogix IFS NS3050-8T

  • Page 1: Package Contents
