Unit (Lot.60-) - Vertex Standard VXR-7000 Service Manual

RX-2 Unit (Lot. 60-)

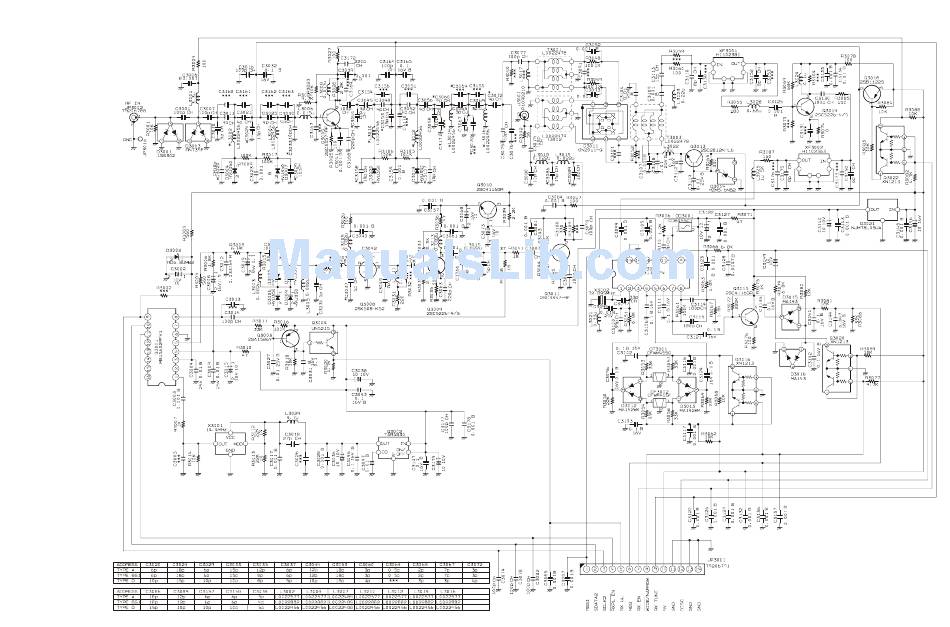

Circuit Diagram
NOTE:
RESISTOR VALUES ARE IN Ω. 1/16W ;
CAPACITOR VALUES ARE IN µF. 50V ;
(T) CAPACITOR VALUES ARE TANTALUM ;
ELECTOROLYTIC CAPACITORS ARE IN µF. 16V ;
INDUCTOR VALUES ARE IN H ;
COIL VALUES ARE IN H ;
UNLESS OTHERWISE NOTED.
