Checking System Performance

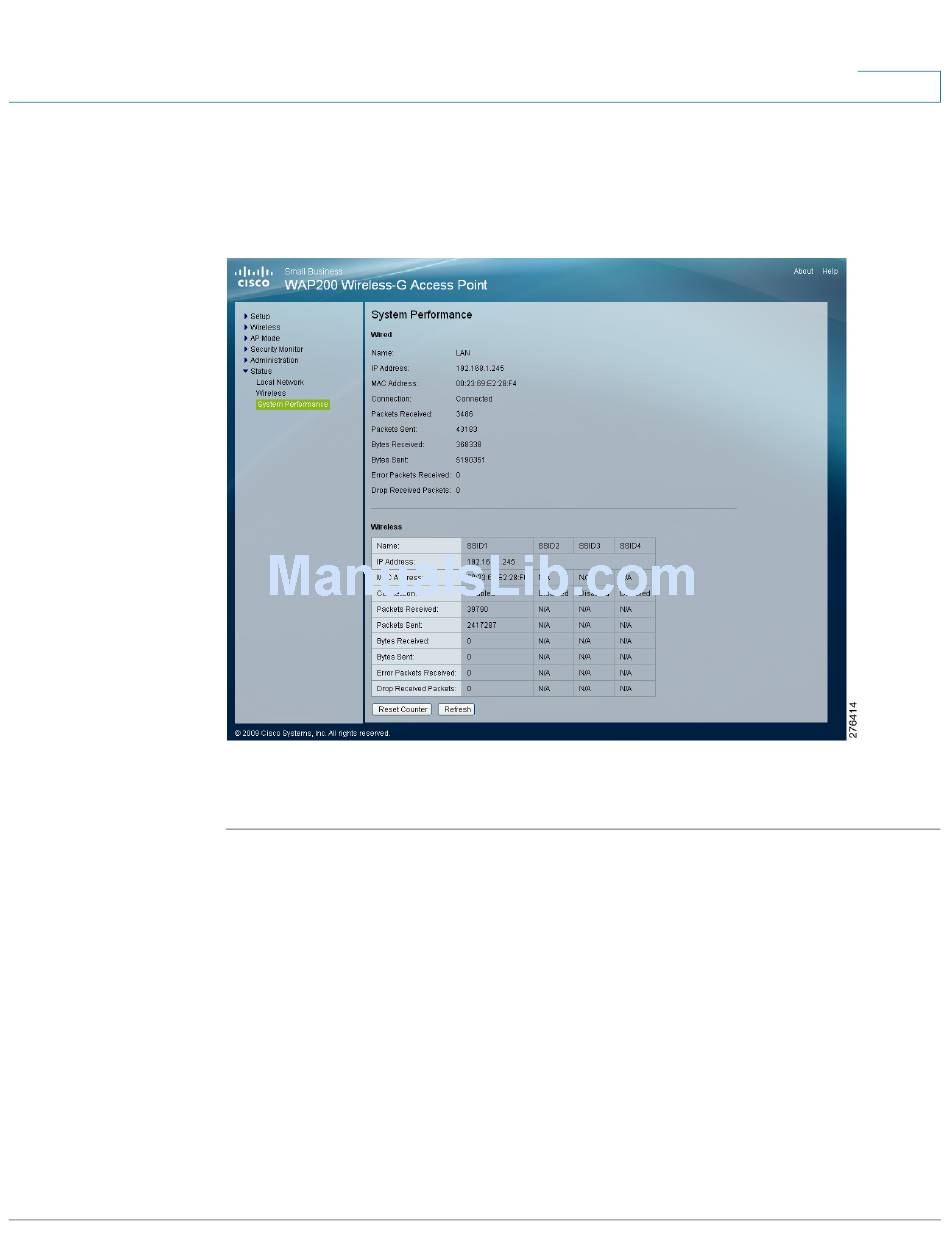

The Status > System Performance window displays the access point's status
information for its current settings and data transmissions.
To check system performance of the access point, follow these steps:
Click Status > Systems Performance.
This page displays the access point's system performance values:
• Wired
The statistics for the wired network, the LAN.
- Name—Network to which the statistics refer, i.e. the LAN.
- IP Address—Access point's local IP address.
- MAC Address—MAC Address of the access point's wired interface.
- Connection—Status of the access point's connection for the wired
network.
