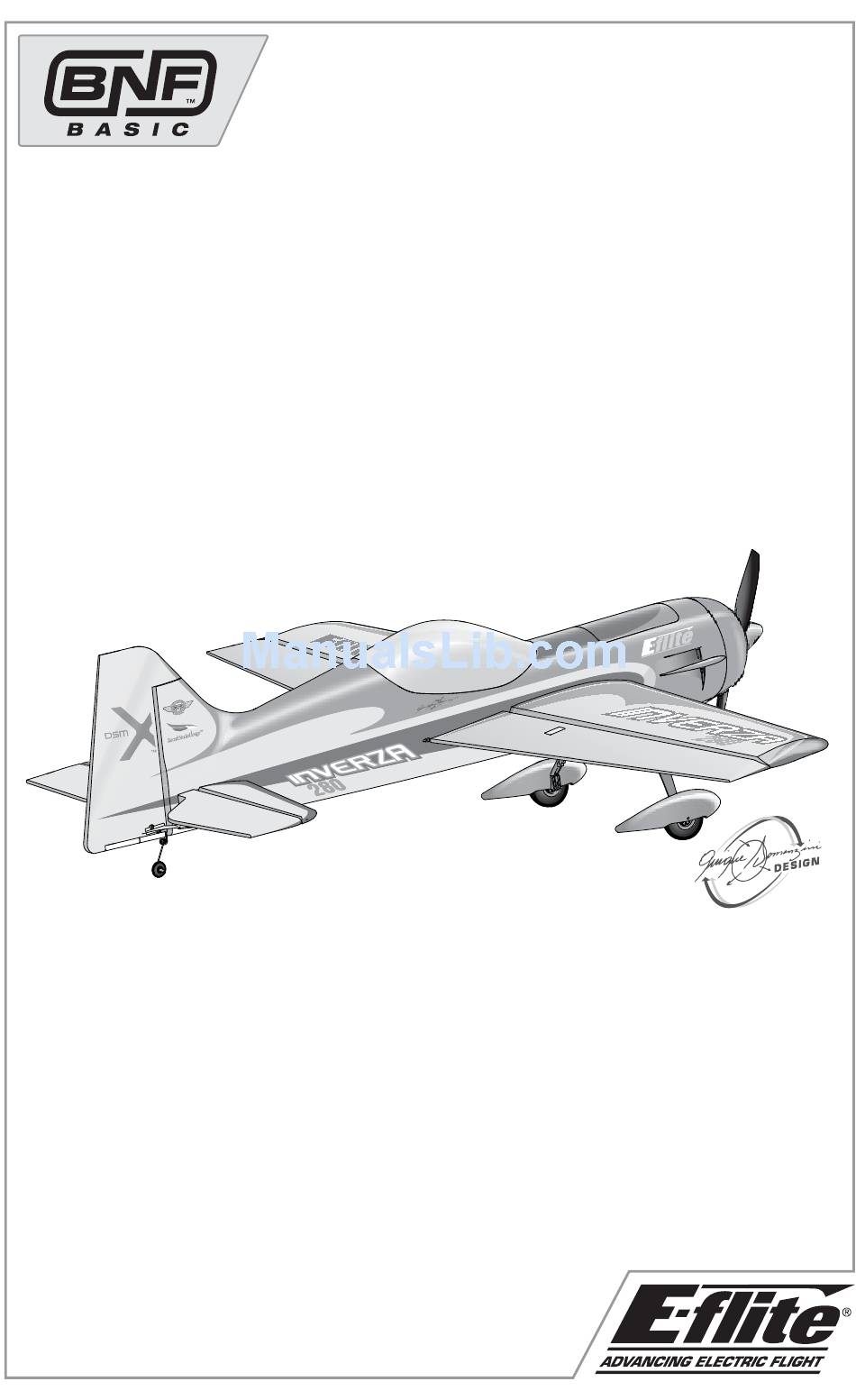

- Page 1 ™ INVERZA Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni...
-
Page 2: Safety Precautions And Warnings
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language: The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury. -
Page 3: Table Of Contents
fl y from practically anywhere, such as a park or small fi eld. Everything you love about fl ying larger, performance aerobatic airplanes has been packed into the Inverza 280. Beyond its advanced composite- reinforced foam construction, you’ll appreciate how its expert-approved digital control and custom-tuned power system components are installed which make it possible for you to get fl... -
Page 4: Low Voltage Cutoff (Lvc)
Low Voltage Cutoff (LVC) Prefl ight Checklist When a Li-Po battery is discharged below 3V per cell, it will not hold a charge. The aircraft’s ESC protects the fl ight battery from over-discharge using Low Voltage Cutoff (LVC). 1. Charge fl ight battery. Once the battery discharges to 3V per cell, the LVC will 2. -
Page 5: Installing The Flight Battery
Installing the Flight Battery 1. Remove the battery hatch from the nose of the aircraft. 2. Apply the included strip of hook and loop tape in the center on the bottom of your battery. 3. For the recommended CG, install the battery centered in the compartment, then press the battery onto the hook and loop strip (A). -
Page 6: Arming The Esc
Arming the ESC Arming the ESC also occurs after binding as previously described, but subsequent connection of a fl ight battery requires the steps to the right. Tip: If the ESC sounds a continuous double beep after the fl ight battery is connected, recharge or replace the battery. -
Page 7: Installing The Wing
Installing the Wing 1. Slide the wing tube into the right wing. 2. Insert the right wing with the wing tube (A) into the round hole in the wing slot of the fuselage while connecting the right aileron control. NOTICE: When disconnecting the servo connectors, do not pull on the servo wires. -
Page 8: Control Direction Test
Control Direction Test You should bind your aircraft and transmitter Make sure the tail linkages move freely and that before doing these tests. Move the controls on paint or decals are not adhered to them. the transmitter to make sure the aircraft control surfaces move correctly and in the proper direction. -
Page 9: Dual Rates And Expos
Dual Rates and Expos High Rate Low Rate We recommend using a DSM radio capable of dual rates and expo. The settings to the right are Aileron 25mm 12mm recommended starting settings for intermediate Elevator 35mm pilots. Adjust according to individual preferences after the initial fl... -
Page 10: Adjusting Center Of Gravity (Cg)
Adjusting Center of Gravity (CG) The CG location is 77mm from the trailing edge of The battery compartment is oversized to allow for the wing tip. Center of Gravity adjustment. Start by centering the battery in the battery compartment. Adjust as needed by sliding the battery forward or back. -
Page 11: Removing The Landing Gear
Removing the Landing Gear 1. Remove the 4 screws (A), fairings (B) and covers (C) from the fuselage. 2. Push the landing gear struts together and pull away from the fuselage to remove the landing gear. Assemble in reverse order. -
Page 12: Flying Tips And Repairs
Flying Tips and Repairs Consult local laws and ordinances before choosing a location to fl y your aircraft. We recommend fl ying your aircraft outside in no greater than moderate winds. Always avoid fl ying near houses, trees, wires and buildings. -
Page 13: Service Of Power Components
Service of Power Components Disassembly CAUTION: Always disconnect the battery before handling or adjusting the propeller or motor. Failure to do so could result in personal injury. Propeller 1. Remove the 2 screws (A) from the spinner (B). Carefully separate the spinner from the back plate (C). -
Page 14: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Aircraft will ESC did not arm because throttle stick and/or Lower throttle stick and throttle trim to lowest not respond to throttle trim too high setting throttle but re- Throttle channel is reversed Reverse throttle channel on transmitter sponds to other controls Motor disconnected from ESC... -
Page 15: Limited Warranty
Limited Warranty What this Warranty Covers WARRANTY SERVICES Horizon Hobby, Inc. (“Horizon”) warrants to the original Questions, Assistance, and Services purchaser that the product purchased (the “Product”) will Your local hobby store and/or place of purchase cannot be free from defects in materials and workmanship at the provide warranty support or service. -
Page 16: Warranty And Service Information
Compliance Information for the European Union Declaration of Conformity (in accordance with ISO/IEC 17050-1) No. HH2013032601U1 Product(s): Inverza 280 BNF Basic Item Number(s): EFL6350 Equipment class: The object of declaration described above is in conformity with the requirements of the specifi cations listed below, following the provisions of the European R&TTE directive 1999/5/EC and EMC Directive 2004/108/EC:... -
Page 17: Replacement Parts
– Pièces de rechange – Recapiti per i ricambi – Part # • Nummer Description Beschreibung Description Descrizione Numéro • Codice Fuselage with E-fl ite Inverza 280 Fuselage avec dérive : Fusoliera con timone: rudder: Inverza 280 BNF : Rumpf mit Inverza 280 BNF Inverza 280 BNF EFL63501... -
