2 Lift the macro keyboard and slide the tab on the macro-keyboard out of the slot on
the palm-rest assembly.
3 Carefully turn the macro keyboard over and place it on the palm-rest assembly.

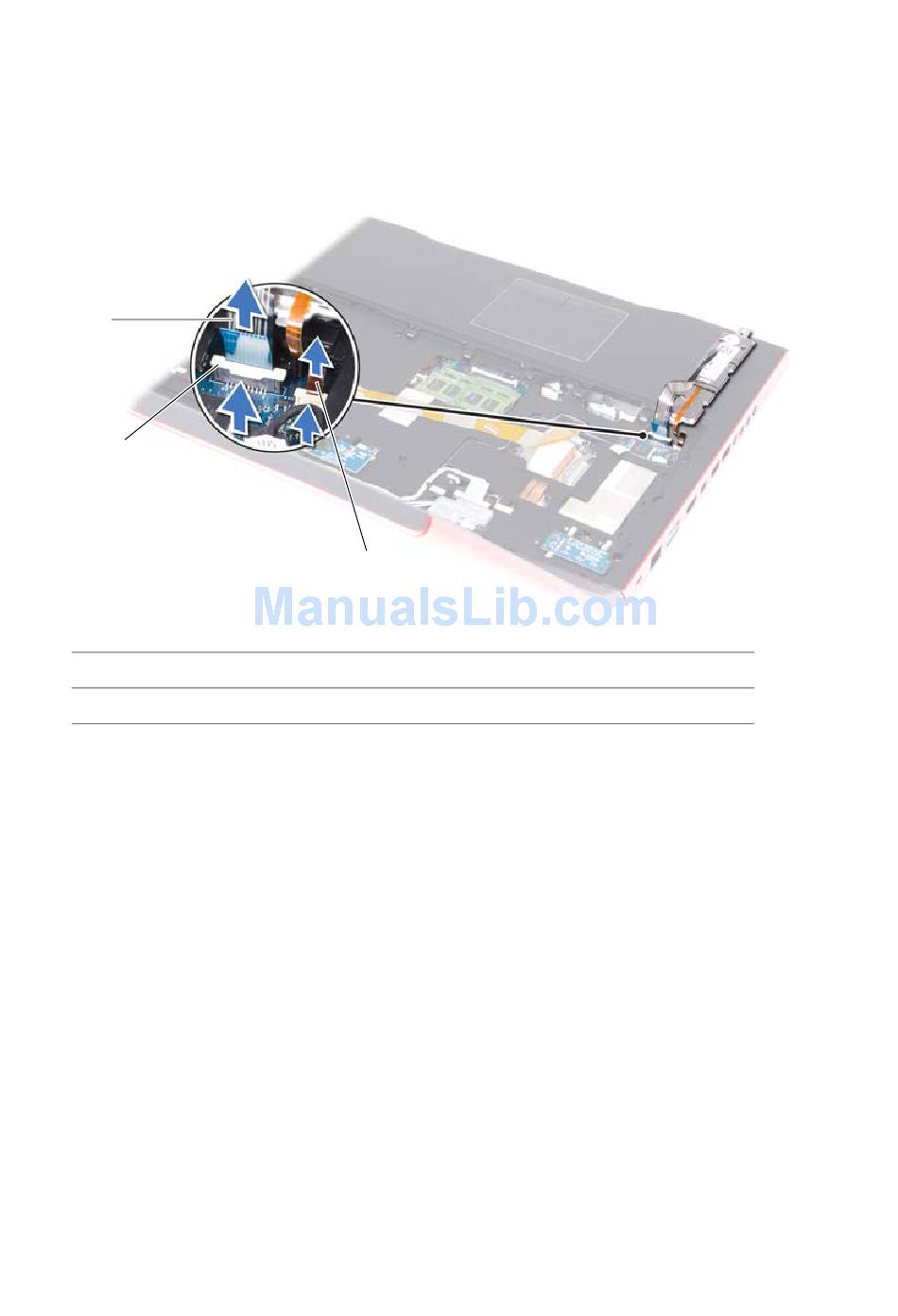

4 Lift the connector latches and pull the pull-tabs to disconnect the macro-keyboard
cable and macro-keyboard backlight cable from the connectors on the system board.
1
2
1 macro-keyboard cable
3 macro-keyboard backlight cable
5 Lift the macro keyboard off the palm-rest assembly.
3
2 connector latch
Removing the Macro Keyboard
