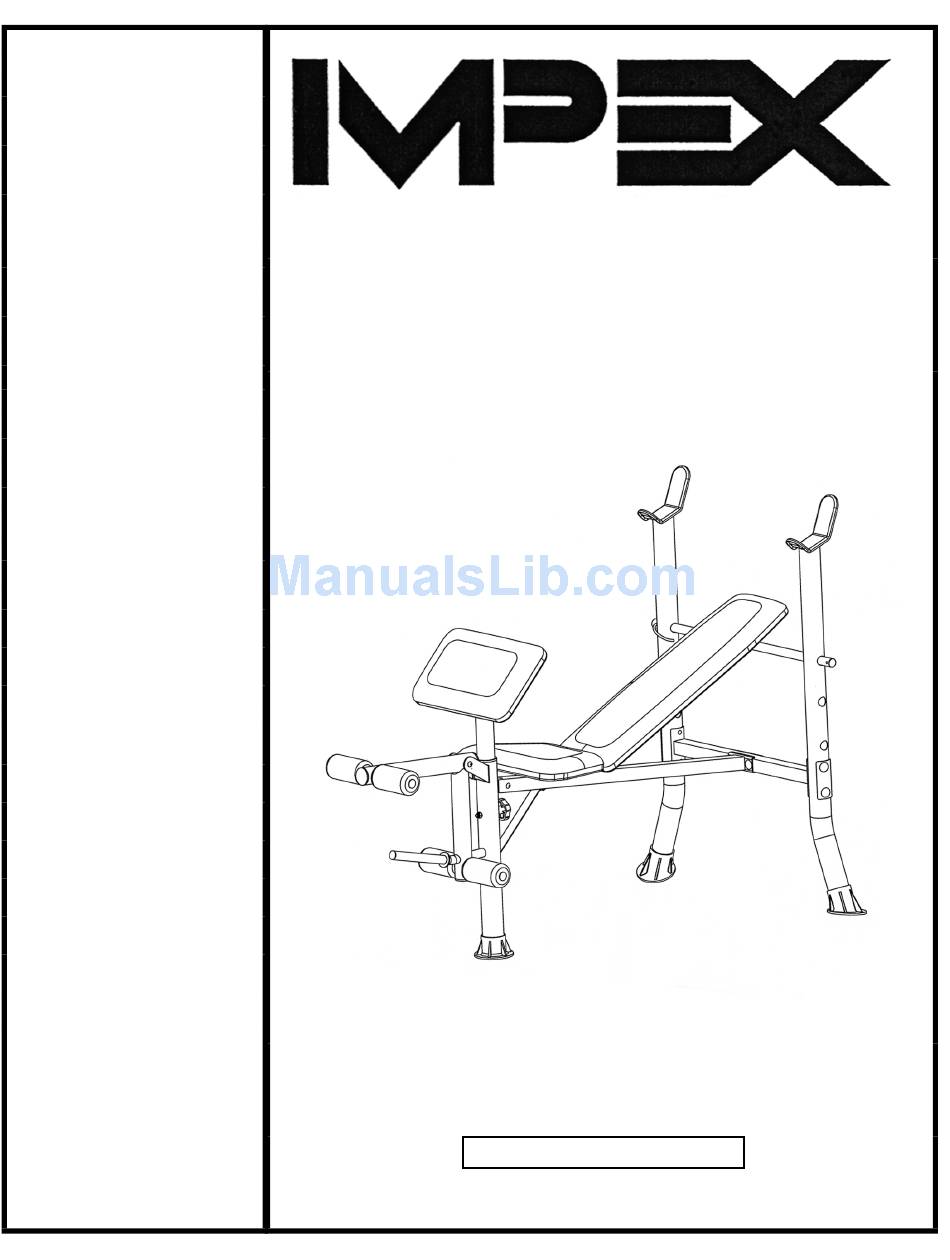

Please read all instructions carefully before using this product Table of Contents Safety Notice Hardware Identifier Assembly Instruction Parts List Warranty Ordering Parts Model MD-377 Retain This Manual for Reference 07-18-08 OWNER'S MANUAL MARCY DIAMOND ELITE WEIGHT BENCH MD-377 IMPEX 14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746...
EXPLODED DIAGRAM………………………………………………………………. PARTS LIST...……. WARRANTY...…. ORDERING PARTS...… BEFORE YOU BEGIN Thank you for selecting the MARCY DIAMOND ELITE MD-377 Weight ® Bench by IMPEX INC. carefully before using the machine. to provide you complete customer satisfaction. If you have any questions, or find there are missing or damaged parts, we guarantee you complete satisfaction through direct assistance from our factory.
BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES RESPONSIBILITY SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
Page 4
WARNING LABEL REPLACEMENT The Warning Label shown here has been placed on the Cross Brace. If the label is missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the label in location shown.
ASSEMBLY INSTRUCTION Tools Required for Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches NOTE: It is strongly recommended that two or more people assemble this machine to avoid possible injury. STEP 1 (See Diagram 1) A.) Plug the two Upright End Caps (#17) onto the bottom of the Right & Left Upright Beams (#1 &...
Page 7
STEP 2 (See Diagram 2) A.) Plug a Front Leg End Cap (#19) onto the bottom of Front Leg (#5). Attach the Front Leg to the Main Seat Support (#3). Secure it with three M8 x 5/8” Allen Bolts (#30) and three Ø...
Page 8
STEP 3 (See Diagram 3) A.) Attach the Leg Developer (#7) to the Front Leg (#5). Secure it with one M8 x 3 1/8” Allen Bolt (#31), two Ø 5/8” Washers (#35), and one M8 Aircraft Nut (#39). B.) Insert two Foam Tubes (#11) halfway through the holes on the Leg Developer. Push four Foam Rolls (#22) onto the Tubes from both sides.
Page 9
STEP 4 (See Diagram 4) A.) Attach the Backrest Supports (#12) onto both ends of the pivot on the Main Seat Support (#3). Place the other end rest against the Backrest Adjustment Bar (#9). B.) Place the Backrest Board (#26) onto the Backrest Supports. Secure it with four M6 x 1 ½” Hex Bolts (#32) and Ø...
Page 10
A.) Attach the Arm Curl Pad (#24) to the Arm Curl Stand (#6). Secure it with two M8 x 5/8” Allen Bolts (#30) and two Ø 5/8” Washers (#35). B.) Insert the Arm Curl Stand into the top opening on the Front Leg (#5). Use a Lock Knob (#14) to hold the Arm Curl Stand in position.
PARTS LIST KEY NO. DESCRIPTION Right Upright Beam Left Upright Beam Main Seat Support Cross Brace Front Leg Arm Curl Stand Leg Developer Diagonal Support Backrest Adjustment Bar Backrest Support Foam Tube Bracket Curve Bracket Lock Knob 1” Square End Cap Ø...
IMPEX authorized service center or for products used for commercial or rental purposes. No other warranty beyond that specifically set forth above is authorized by IMPEX.
