NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Warranty
Ordering Parts

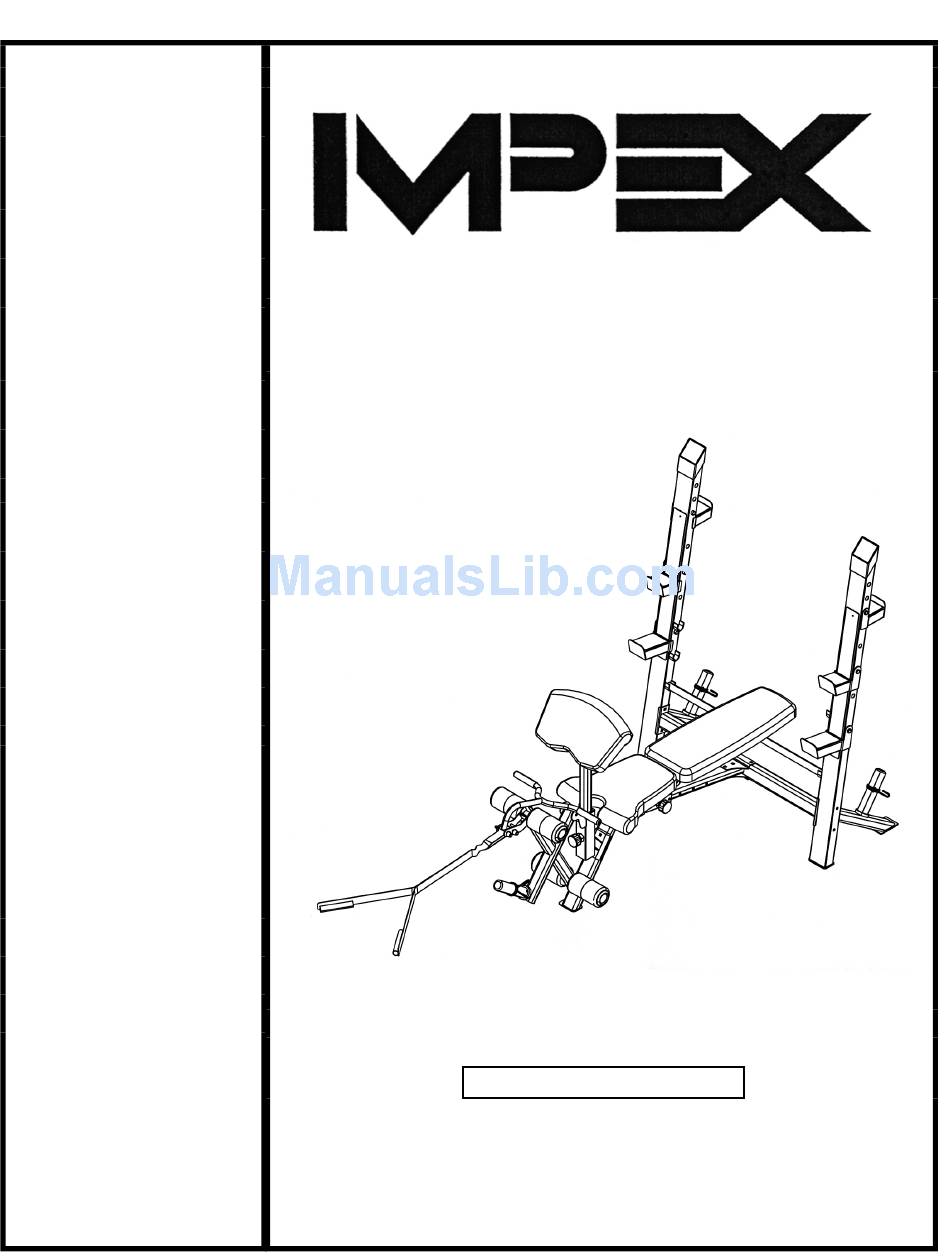

Model
MD-8861
Retain This
Manual for
Reference
07-03-08
OWNER'S
MANUAL
MARCY DIAMOND
OLYMPIC BENCH
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
MD-8861
®
IMPEX
INC.

Advertisement

Table of Contents
loading

Related Manuals for Impex Marcy Diamond MD-8861

Summary of Contents for Impex Marcy Diamond MD-8861

  • Page 1 Parts List Warranty Ordering Parts Model MD-8861 Retain This Manual for Reference 07-03-08 OWNER'S MANUAL MARCY DIAMOND OLYMPIC BENCH MD-8861 IMPEX 14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746 Tel: (800) 999-8899 Fax: (626) 961-9966 www.impex-fitness.com info@impex-fitness.com ® INC.

  • Page 2: Table Of Contents

    BEFORE YOU BEGIN Thank you for selecting the MARCY DIAMOND MD-8861 Olympic Bench by IMPEX INC. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction. If you have any questions, or find there are missing or damaged parts, we guarantee you complete satisfaction through direct assistance from our factory.

  • Page 3: Important Safety Notice

    PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
  • Page 4 WARNING LABEL REPLACEMENT The Warning Label shown here has been placed on the Left Upright Beam. If the label is missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the label in location shown...

  • Page 5: Hardware Pack

    HARDWARE PACK NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.
  • Page 6 HARDWARE PACK NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.

  • Page 7: Assembly Instructions

    ASSEMBLY INSTRUCTION Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches. NOTE: It is strongly recommended two or more people assembling this machine to avoid possible injury. STEP 1 (See Diagram 1) A.) Connect the Right and Left Upright Beams (#1 & #2) with a Cross Brace (#3) in the mid-span. Secure each end with two M10 x 4 ¾”...
  • Page 8 STEP 2 (See Diagram 2) A.) Slide the Sliding Block (#6) onto the Main Seat Support (#4). Thread a M18 x Knob (#47) into the selected hole to hold the Sliding Block in position. B.) Attach the Main Seat Support to the Cross Brace (#3). C.) Secure it from the rear of the Cross Brace with two M10 x 2 ¾”...
  • Page 9 STEP 3 (See Diagram 3) A.) Attach the brackets at the end of the Backrest Supports (#32) to the pivot on the Sliding Block (#6). Align the holes on the Seat Support (#16) to the brackets on the Backrest Supports. Secure them together with one M12 x 7 5/8” Allen Bolt (#60), two Washers (#66) and one M12 Aircraft Nut (#69).
  • Page 10 STEP 4 (See Diagram 4) A.) Insert two M10 x 2 3/8” Carriage Bolts (#56) all the way through the holes on the Leg Developer Holder (#5), then insert the two Bolts through the holes on the Main Seat Support (#4). Attach the Leg Developer Holder to the Main Seat Support. Secure them with the two M10 x 2 3/8”...
  • Page 11 STEP 5 (See Diagram 5) A.) Attach the Arm Curl Pad (#28) to the Arm Curl Bracket (#34). Secure it with two M8 x 5/8” Allen Bolts (#61) and Ø 5/8” Washers (#65). Attach the Arm Curl Bracket to the bracket on the Arm Curl Stand (#17).

  • Page 13: Parts List

    PARTS LIST KEY NO. DESCRIPTION Right Upright Beam Left Upright Beam Cross Brace Main Seat Support Leg Developer Holder Sliding Block Right Bar Catch Left Bar Catch Right Safety Catch Left Safety Catch Left Squat Catch Right Squat Catch Leg Developer Weight Post Triangular Bracket Seat Support...

  • Page 14: Warranty

    IMPEX Customer Service Department at 1-800-999-8899. All freights on products returned to IMPEX must be prepaid by the customer. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an IMPEX authorized service center or for products used for commercial or rental purposes.
