NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
MD-11.0
Retain This
Manual for
Reference
06-23-06

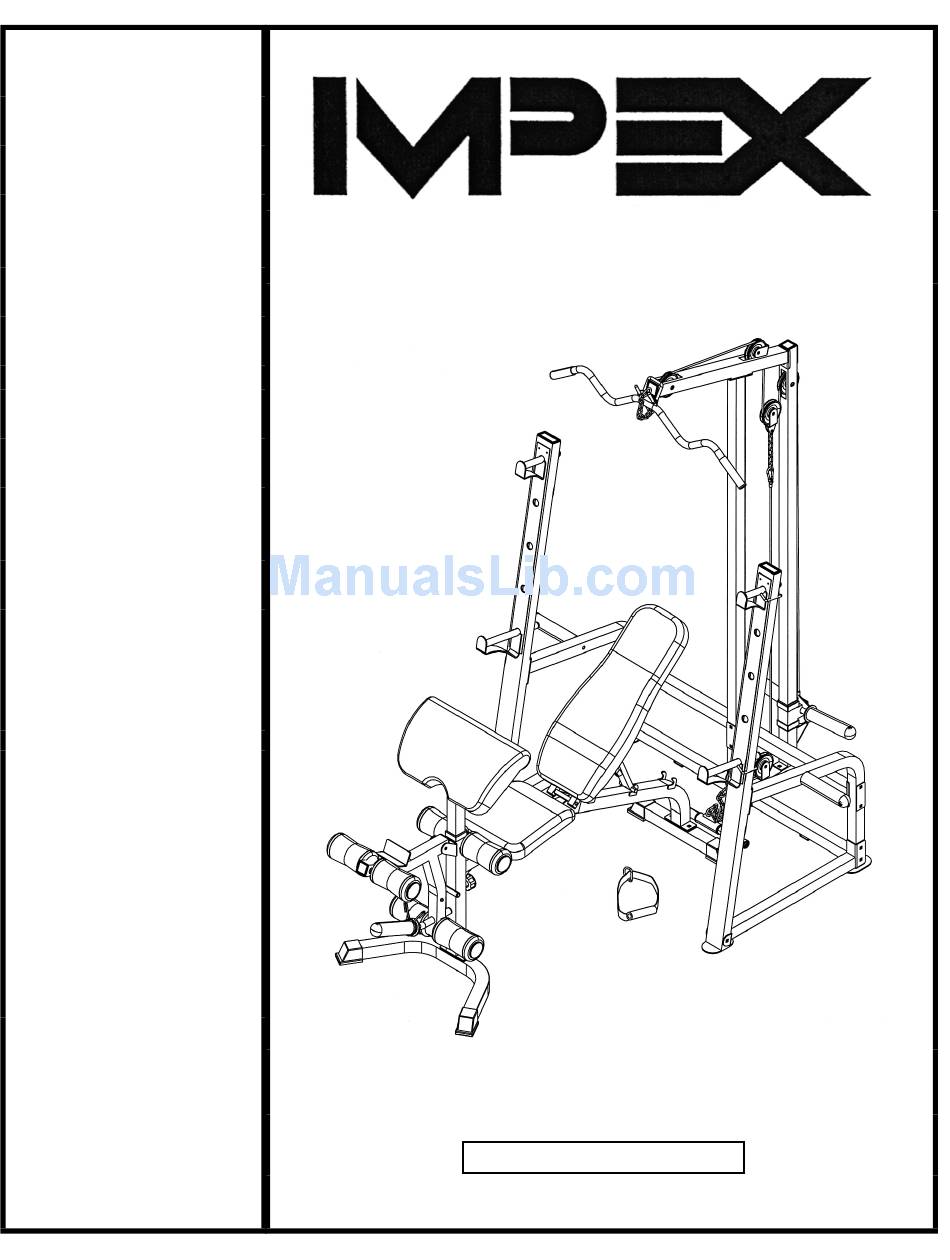

OWNER'S
MANUAL
MARCY DIAMOND ELITE
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
MD-11.0
®
IMPEX
INC.
Advertisement
Table of Contents
Related Manuals for Impex MARCY MD-11.0
Summary of Contents for Impex MARCY MD-11.0
- Page 1 Table of Contents Safety Notice Hardware Identifier Assembly Instruction Parts List Warranty Ordering Parts Model MD-11.0 Retain This Manual for Reference 06-23-06 OWNER'S MANUAL MARCY DIAMOND ELITE MD-11.0 IMPEX 14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746 Tel: (800) 999-8899 Fax: (626) 961-9966 www.impex-fitness.com...
-
Page 2: Table Of Contents
EXPLODED DIAGRAM...………. 18 PARTS LIST………………………………………………………………………….. 20 WARRANTY...… 21 ORDERING PARTS... 21 BEFORE YOU BEGIN Thank you for selecting the MARCY DIAMOND ELITE MD-11.0 Olympic Cage ® by IMPEX INC. For your safety and benefit, read this manual carefully before using the machine. -
Page 3: Important Safety Notices
AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT. SAVE THESE INSTRUCTIONS. IMPEX INC. -
Page 4: Warning Label Replacement
WARNING LABEL REPLACEMENT The warning labels shown here have been placed on the Rear Stabilizer, and Upper Frame. If the labels are missing or illegible, please call customer service at 1-800-888-8899 for replacements. Apply the labels in the location shown. -
Page 5: Hardware Pack
HARDWARE PACK... - Page 6 HARDWARE PACK...
- Page 7 HARDWARE PACK...
-
Page 8: Assembly Instructions
ASSEMBLY INSTRUCTION Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches NOTE: It is strongly recommended this machine be assembled by two or more people to avoid possible injury. STEP 1 (See Diagram 1) A.) Attach the Main Frame (#27) to the Bench Front & Rear Stabilizers (#28 & 29). Secure each end with two M10 x ¾”... - Page 9 STEP 2 (See Diagram 2) A.) Attach the two side-holes on bottom of Backrest Supports (#30) to the pivot on the Main Frame (#27). Secure it with one M12 x 5 ¾” Allen Bolt (#75), two Ø 1” Washers (#68), and one M12 Aircraft Nut (#71).
- Page 10 STEP 3 (See Diagram 3) A.) Attach the Leg Developer (#33) to the open bracket on the Main Frame (#27). Secure it with one M10 x 3 1/8” Allen Bolt (#76), two Ø ¾” Washers (#69), and one M10 Aircraft Nut (#72).
- Page 11 STEP 4 (See Diagram 4) A.) Attach the Arm Curl Pad (#37) to the Arm Curl Stand (#32). Secure it with two M8 x ¾” Allen Bolts (#84) and two opening on the Main Frame (#27) and secure it with a Lock Knob (#61) to hold it at the desired height.
- Page 12 STEP 5 (See Diagram 5) A.) Note: Do not tighten the Nuts and Bolts until instructed to do so. B.) Attach the top of Left Support (#2) to an Upright Beam (#1). Secure it with two M10 x 5/8” Allen Bolts (#82) and Ø ¾” Washers (#69). C.) Attach the Left Floor Stabilizer (#4) to the Upright Beam.
- Page 13 STEP 6 (See Diagram 6) A.) Attach the Rear Vertical Frame (#9) onto the Rear Base (#8). Secure it with two M10 x 2 ½” Carriage Bolts (#74), Ø ¾” Washers (#69), and M10 Aircraft Nuts (#72). B.) Attach the Rear Base (#8) and Front Vertical Frame (#10) to the Rear Stabilizer (#7). Align the holes and secure them together with two M10 x 2 ½”...
- Page 14 DIAGRAM 6...
- Page 15 CABLE LOOP DIAGRAM...
- Page 16 STEP 7 (See Diagram 7 & Cable Loop Diagram) A.) Attach the 113 7/8” Upper Cable (#24) to the front opening on the Upper Frame (#11). Make sure the ball stopper of the Cable is underneath the Frame. B.) Attach a Pulley (#45) to the opening. Secure it with one M10 x 2 ½” Allen Bolt (#77), two 5/8” Pulley Bushings (#65), and one M10 Aircraft Nut (#72).
- Page 17 STEP 8 (See Diagram 8 & Cable Loop Diagram) A.) Attach the 58 1/8” Lower Cable (#25) to the lower opening on the bottom of Front Vertical Frame (#10). Attach a Pulley (#45) to the opening and secure it with one M10 x 2 3/8” Allen Bolt (#78), two ½”...
- Page 18 STEP 9 (See Diagram 9) A.) Attach a Weight Post (#20) to the Right Support (#3). Secure it with a M10 x ¾” Allen Bolt (#81) and Ø ¾” Washer (#69). Slide an Olympic Sleeve (#44) onto the Post. Repeat the same procedure to install the other side.
-
Page 20: Exploded Diagram
RACK EXPLODED DIAGRAM... -
Page 21: Parts List
PARTS LIST KEY NO. DESCRIPTION Upright Beam Left Support Right Support Left Floor Stabilizer Right Floor Stabilizer Cross Brace Rear Stabilizer Rear Base Rear Vertical Frame Front Vertical Frame Upper Frame Sliding Weight Post Left Safety Catch Right Safety Catch Left Bar Catch Right Bar Catch Shiver Bar... -
Page 22: Warranty
IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.
