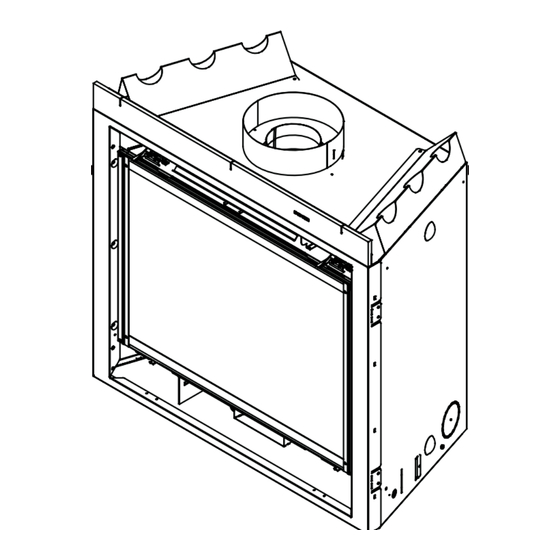

Heat & Glo 6000GBV Owner's Manual

Heat & glo b-vent decorative gas fireplace owner's manual
Hide thumbs Also See for 6000GBV:
Table of Contents

Advertisement

Quick Links

Download this manual
Models:
6000GBV
6000GBV-IPI
6000GBV-LP
6000GBV-IPILP
•
Important operating
and maintenance
instructions included.
WARNING: If the information in these
instructions is not followed exactly, a fi re
or explosion may result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of
this or any other appliance.
• What to do if you smell gas
- Do not try to light any appliance
- Do not touch any electrical switch. Do not
use any phone in your building.
- Immediately call your gas supplier from a
neighbor's phone. Follow the gas suppli-
er's instructions.
- If you cannot reach your gas supplier, call
the fi re department.
• Installation and service must be performed
by a qualifi ed installer, service agency, or the
gas supplier.
In the Commonwealth of Massachusetts:
• installation must be performed by a licensed plumber
or gas fi tter;
• a CO detector shall be installed in the room where the
appliance is installed.
CAUTION
DO NOT DISCARD THIS MANUAL
•
Read, understand and follow
these instructions for safe
installation and operation.
Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08
Owner's Manual
•
Leave this manual with
party responsible for use
and operation.
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fi replace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other fl ammable
materials.
• Keep clothing, furniture, draperies and other fl ammable
materials away.
This appliance has been supplied with an integral barrier
to prevent direct contact with the fi xed glass panel. DO
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
This appliance is only for use with the type(s) of gas indicated
on the rating plate.
Installation and service of this appliance should be
performed by qualifi ed personnel. Hearth & Home
Technologies suggests NFI certifi ed or factory-trained
professionals, or technicians supervised by an NFI certi-
fi ed professional.
Installation and Operation
1

Advertisement

Table of Contents
loading

Related Manuals for Heat & Glo 6000GBV

Summary of Contents for Heat & Glo 6000GBV

  • Page 1 Technologies suggests NFI certifi ed or factory-trained professionals, or technicians supervised by an NFI certi- • a CO detector shall be installed in the room where the fi ed professional. appliance is installed. Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...
  • Page 2 AL TI TUDE : 0-0000 FT . 0000-0000FT . (Modele): MAX. INPU T BTUH: 00,000 00,000 MIN. INPU T BTUH: 00,000 00,000 Serial ORIFICE SIZE: #XXXXX #XXXXX XXXXXXXX (Serie): Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 3: Table Of Contents

    C. Securing Vent Sections ....... 18 D. Contact Information ........46 Section 9: Gas Information A. Fuel Conversions ........19 B. Gas Pressures ..........19 C. Gas Connection........... 19 = Contains updated information. Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 4: Listing And Code Approvals

    It should not be fac- 6000GBV tored as primary heat in residential heating calculations. 6000GBV-IPI 24,300 16,200 27,000 18,000 6000GBV-LP 6000GBV-IPILP 24,300 16,200 Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 5: High Altitude Installations

    • A 110-120 VAC circuit for this product must be protected with ground-fault circuit-interrupter protection, in compliance with the applicable electrical codes, when it is installed in locations such as in bathrooms or near sinks. Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 6: Getting Started

    • Framing and fi nishing details. See Sections 3, 6 and 11. • Whether optional accessories—devices such as a fan, wall switch, or remote control—are desired. See Section 10. Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 7: Negative Pressure

    R e com m ended Location N O T R e com m ended W indw ard Leew ard M u lti-level R o o fs Figure 2.1 Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 8: Tools And Supplies Needed

    Hearth & Home Technologies. • Report to your dealer any parts damaged in shipment, Any such action may cause a fi re hazard. particularly the condition of the glass. Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 9: Framing And Clearances A. Selecting Appliance Location

    In addition to these framing dimensions, also reference the following sections: • Clearances and Mantel Projections (Sections 3.C and 3.D) • Vent Clearances and Framing (Section 6). Figure 3.1 Appliance Locations Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 10: Constructing The Appliance Chase

    Front of Opening Opening Opening Opening to Ceiling Floor Flooring Appliance Appliance Appliance (Vent Pipe) (Height) (Depth) (Width) Inches 38-1/2 26-5/8 Millimeters 1067 Clearances to Combustibles Figure 3.2 Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 11: Mantel Projections

    NOTE: Measurement is taken from top of the (Acceptable on both sides of opening.) opening, NOT the top of the fi replace. Figure 3.3 Clearances to Mantels or other Combustibles above Appliance Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 12: Termination Locations

    * 3 foot minimum in snow regions Figure 4.1 Minimum Height from Roof to Lowest Discharge Opening Figure 4.1 specifi es minimum vent heights for various pitched roofs. Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 13: Vent Information And Diagrams

    • This product is tested and listed to appliance and vent WITH MECHANICAL CODES. manufacturer’s specifi cations. • Appliance performance will suffer if specifi cations are not followed. Figure 5.2 Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...
  • Page 14 H O R IZ O N TA L L IM ITAT IO N S 9 0 D E G R E E S E L B O W Note: Maximum horizontal distance is 50% vertical vent height. Figure 5.3 Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 15: Vent Clearances And Framing

    B O T TO M C L E A R A N C E Figure 6.1 Pipe Clearances Follow vent pipe manufacturer’s instructions for all clear- ances around pipe. Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 16: Appliance Preparation

    Refer to Sections 9 (Gas Information) 7.1). and 10 (Electrical Information). D O O R H IN G E H A N D L E Figure 7.1 Damper Assembly and Handle Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 17: Installing The Non-Combustible Board

    • Secure the appliance to the framing by using nails or screws through the nailing tabs. Figure 7.4 Proper Positioning, Leveling and Securing of a Appliance CAUTION Do NOT notch into the framing around the appliance spacers. Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 18: Installing Vent Pipe

    Attaching Vent to Firebox Attach the fi rst B-Vent component to the fl ue outlet collar using 3 self-tapping screws. See Figure 8.1. B-VENT SECURING SCREWS FLUE OUTLET COLLAR Figure 8.1 Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 19: Gas Information

    Propane Minimum 5.0 inches 11.0 inches Inlet Pressure w.c. w.c. Maximum Inlet 14.0 inches 14.0 inches Gas Pressure w.c. w.c. Manifold 3.5 inches 10.0 inches Pressure w.c. w.c. Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...
  • Page 20 Do NOT change the valve settings. • This valve has been preset at the factory. • Changing valve settings may result in fi re hazard or bodily injury. Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 21: Electrical Information

    • Replace damaged wire with type 105 rated wire. • If using thermostat use one compatible with a millivolt gas valve system. • Wire must have high temperature insulation. Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 22: Standing Pilot Ignition System Wiring

    T H E R M O S T A T W IR E A S S E M B L Y Figure 10.3 Standing Pilot Ignition Wiring Diagram Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 23: Junction Box Installation

    Figure 10.5 Fan Control Switch Wiring face of the junction box, and connect to the top fan switch connector (1/4 inch male) as shown. Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 24: Finishing

    Inches and sides using only a 300 F minimum sealant. Millimeters ∞ Inches ∞ Millimeters Figure 11.2 Mantel Leg or Wall Projections (Acceptable on both sides of opening.) Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 25: Appliance Setup

    Use this material to give the appliance a realistic ash bed. • Save the remaining ember materials for use during appli- ance servicing. The embers provided should be enough for 3 to 5 applications. Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 26: Positioning The Logs

    Figure 12.3 INDENTATIONS INDENTATIONS 1/4 inch or so gap around the hump. See Figures 12.4 and 12.5. Figure 12.4 Front View Figure 12.5 Top View 2103-910 Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...
  • Page 27 Place log #5 in front of log #3 the notch in the bottom of this log rests over the center tine on the grate. The log shouldn’t cover any ports. Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 28: Glass Assembly

    L ATCHE S (BOTH BOT TO M AND TOP ) GLASS ASSEMB LY Figure 12.14 Glass Assembly Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 29: Operating Instructions

    - B A D - flame/smoke per the any gas control which has been under water. Figure 13.1 fi gure. Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 30: Lighting Appliance

    For additional information on operating your Hearth & Home Technologies fi replace, please refer to www.fi replaces.com. Final Inspection by _____________________________ 593-913D Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 31: Standing Pilot Ignition

    Close control access panel. 464-903G For additional information on operating your Hearth & Home Technologies fi replace, please refer to www.fi replaces.com. Final inspection by Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 32: After Appliance Is Lit

    In an Intellifi re ignition system it is normal to see the pilot fl ame, but it should turn off burn continually? when ON/OFF is turned off. In a standing pilot system the pilot will always stay on. Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 33: Troubleshooting

    With the pilot in the ON position, disconnect the thermopile leads from the valve. Take a reading at the thermopile leads. The reading should be 325 millivolts minimum. Replace the thermopile if the reading is below the minimum. Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...
  • Page 34 Ensure that the glass is tightened properly on the unit, particu- larly on top corners. Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 35: Intellifi Re Ignition System

    The sensor rod may be contaminated. Clean sensor rod with emery cloth. c. Module is not Verify that module is securely grounded to metal chassis of appliance. grounded. Verify that wire harness is fi rmly connected to module. Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...
  • Page 36 Verify module is securely grounded to metal chassis of appliance. grounded. d. Module voltage Verify battery voltage is at least 2.7 volts. Replace batteries if voltage is output / Valve/Pi- below 2.7. lot solenoid ohms readings. Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 37: Maintaining And Servicing Appliance

    • Restricted air fl ow affects burner operation. control compartment • Burner, burner ports Risk of: • Fire • Delayed ignition or explosion • Exposure to combustion fumes • Odors Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...
  • Page 38 1. Verify operation of remote. 2. Replace batteries in remote transmitters and battery-powered receivers. 3. Verify batteries have been removed from battery back-up IPI systems to prevent premature battery failure or leaking. Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 39: Reference Materials

    RIGHT SIDE Appliance Dimensions Table Location Inches Millimeters Location Inches Millimeters 28-1/2 1041 14-1/4 36-1/8 8 dia 33-1/2 2-1/8 34-5/8 6-7/8 2-3/8 21-1/2 9-3/8 Figure 16. 1 Appliance Dimensions Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 40: Service Parts

    6000GBV B. Service Parts Beginning Manufacturing Date: May 2006 Service Parts Diagram Ending Manufacturing Date: ______ Log Assembly Part number list on following page. Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...
  • Page 41 LPK-6GBV-IPI Conversion Kit, LP Pilot Orifi ce, NG 593-528 Pilot Orifi ce, LP 593-527 Regulator, NG NGK-DXV LPK-DXV Regulator, LP Additional service part numbers appear on following page. Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...
  • Page 42 750-501 Remote Wire Assembly 2103-013 Control Module 593-592 Wire Assembly 593-590A Wire Assembly 2045-024 80 in. & 72 in. Wire Assembly 522-504A 3V Transformer 593-593A Battery Pack 593-594A Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...
  • Page 43 Valve Bracket 2118-104 Flex Ball Valve Assembly 302-320A Piezo Ignitor 291-513 Valve, NG 230-0710 Valve, LP 230-0720 Remote Pigtail Wire 2101-013 Wire Assembly 2045-024 80” Wire Assembly 522-503A Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 44: Warranty

    • Adjustments, regular maintenance, cleaning and temporary repairs, or the failure to duplicate the problem in the home is not covered under this warranty. Page 1 of 2 4021-645A 09-01-08 Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...
  • Page 45 If warranty service is needed, you should contact your installing dealer. If the installing dealer is unable to provide necessary parts or components, contact the nearest authorized HHT dealer or supplier. Page 2 of 2 4021-645A 09-01-08 Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...

  • Page 46: Contact Information

    6774802, 6796302, 6840261, 6848441, 6863064, 6866205, 6869278, 6875012, 6880275, 6908039, 6919884, D320652, D445174, D462436; (Canada) 1297749, 2195264, 2225408, 2313972; (Australia) 780250, 780403, 1418504 or other U.S. and foreign patents pending. Printed in U.S.A. - Copyright 2008 Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08...
