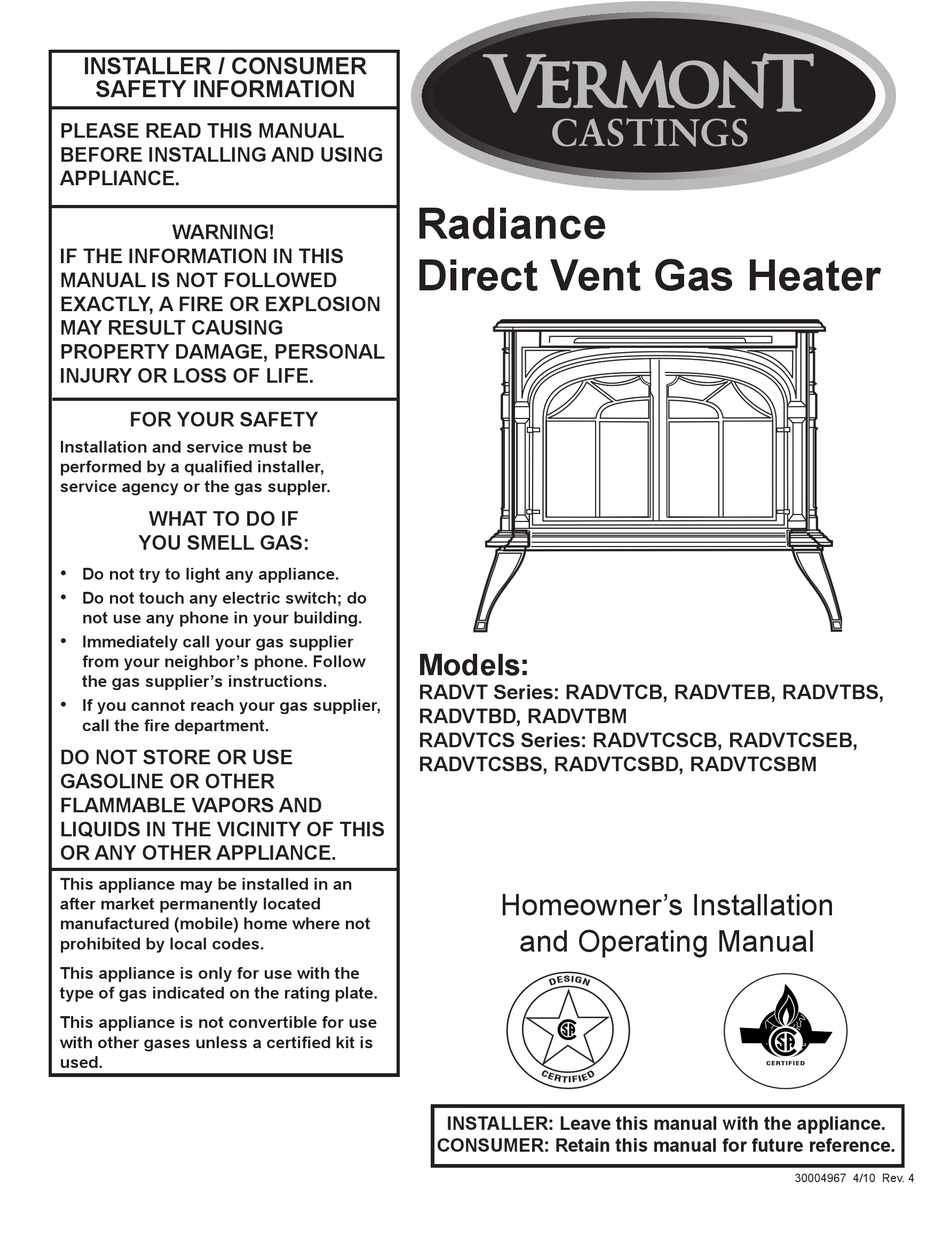

INSTALLER / CONSUMER

SAFETY INFORMATION

PLEASE READ THIS MANUAL
BEFORE INSTALLING AND USING
APPLIANCE.
WARNING!
IF THE INFORMATION IN THIS
MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE OR EXPLOSION
MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL
INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY
Installation and service must be
performed by a qualified installer,
service agency or the gas suppler.
WHAT TO DO IF
YOU SMELL GAS:
•
Do not try to light any appliance.
•
Do not touch any electric switch; do
not use any phone in your building.
•
Immediately call your gas supplier
from your neighbor's phone. Follow
the gas supplier's instructions.
•
If you cannot reach your gas supplier,
call the fire department.
DO NOT STORE OR USE
GASOLINE OR OTHER
FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY OF THIS
OR ANY OTHER APPLIANCE.
This appliance may be installed in an
after market permanently located
manufactured (mobile) home where not
prohibited by local codes.
This appliance is only for use with the
type of gas indicated on the rating plate.
This appliance is not convertible for use
with other gases unless a certified kit is
used.

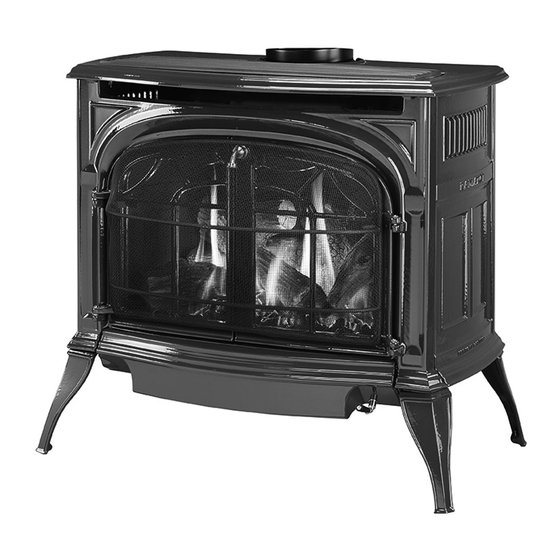

Radiance
Direct Vent Gas Heater
Models:
RADVT Series: RADVTCB, RADVTEB, RADVTBS,
RADVTBD, RADVTBM
RADVTCS Series: RADVTCSCB, RADVTCSEB,
RADVTCSBS, RADVTCSBD, RADVTCSBM
Homeowner's Installation
and Operating Manual
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
12697
Radiance cover
7/07
C E RT I F I E D
30004967 4/10 Rev. 4

Advertisement

Table of Contents
loading

Related Manuals for Vermont Castings RADVTCB

Summary of Contents for Vermont Castings RADVTCB

  • Page 1: Safety Information

    • Immediately call your gas supplier Models: from your neighbor’s phone. Follow the gas supplier’s instructions. RADVT Series: RADVTCB, RADVTEB, RADVTBS, • If you cannot reach your gas supplier, RADVTBD, RADVTBM call the fire department. 12697...

  • Page 2: Table Of Contents

    Table of Contents PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING APPLIANCE. Thank you and congratulations on your purchase of a Vermont Castings stove. IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible fire hazard and will void the warranty.

  • Page 3: Installation & General Information

    Radiance Direct Vent Gas Heater Installation & Operating Instructions The Radiance Direct Vent Room Heater, Model Nos. RADVTCB, This appliance may be installed in an aftermarket* manufactured RADVTEB, RADVTBS, RADVTBD, RADVTBM, RADVTCSCB, (mobile) home, where not prohibited by state or local codes.

  • Page 4: Operating Instructions Installation Requirements For The Commonwealth Of Massachusetts

    Radiance Direct Vent Gas Heater Installation & Operating Instructions Requirements for the Commonwealth of Inspection Massachusetts The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not All gas fitting and installation of this heater shall only be approve the installation unless, upon inspection, the done by a licensed gas fitter or licensed plumber.

  • Page 5: Stove Dimensions

    Radiance Direct Vent Gas Heater Radiance Direct Vent Stove Dimensions 7" Outer Dia. 7" Outer Dia. See Page 7 for Flue Collar (178 mm) (178 mm) 14 " 14 " Centerline Dimensions. Supply Inlet Supply Inlet (378 mm) (378 mm) 4 "...

  • Page 6: Installation Requirements

    Radiance Direct Vent Gas Heater Installation Requirements The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Direct Vent System Only Code, ANSI Z3.1/NFPA 54 - latest edition. (EXCEP- TION: Do not derate this appliance for altitude. Main- tain the manifold pressure at 3.5”...

  • Page 7: Parallel Installation

    Radiance Direct Vent Gas Heater Wall Centerline from Floor Parallel Installation: Minimum Clearance and Flue Centerline Direct Vent Only 42" (1070mm) Min. Alcove Width 4" (102mm) 48" (1220mm) Max. Alcove Depth 6" 6" (150mm) (150mm) ST130 Fig. 3 Parallel installation, minimum back and side clear- ances, and flue centerlines.

  • Page 8: Gas Specifications

    Manifold Pressure 3.5” w.c. 10” w.c. The installation of your Vermont Castings stove must conform with local codes, or in the absence of local codes, with the National Fuel Gas Code ANSI Z3.1/NFPA 54 - latest edition, or CSA B149.1 Installation code.

  • Page 9: Vertical Termination

    Radiance Direct Vent Gas Heater Restrictor Plate Adjustment Vertical Termination for Extended Pipe Runs A vertical vent system must terminate no less than 8’ (.44 m) and no more than 40’ (1 m) above the ap- The Radiance stove is shipped with a restrictor plate pliance flue collar.

  • Page 10: Vent Termination Clearances

    Radiance Direct Vent Gas Heater Vent Termination Clearances When planning the installation, consider the location Your stove is approved to be vented either through the of the vent terminal and clearances. Some of the most side wall, or vertical through the roof. common clearances to keep in mind are shown in Figure •...

  • Page 11: General Venting Information - Termination Location

    Radiance Direct Vent Gas Heater General Venting Information - Termination Location INSIDE  CORNER DETAIL  G  V  N  H  A  D  E  L  C  B  B  V  Fixed B  V  Closed V  Fixed Operable Closed F  V  B  M  V  B  J  B ...

  • Page 12: Termination Clearances

    Radiance Direct Vent Gas Heater Termination Clearances Termination clearances for buildings with combustible and noncombustible exteriors. Inside Corner Alcove Applications* Outside Corner Combustible 6" (152 mm) Combustible 6" (152 mm) Noncombustible 2" (51 mm) Noncombustible 2" (51 mm) Balcony - Balcony - with no side wall with perpendicular side wall...

  • Page 13: Venting Requirements And Options

    These 90° Elbow, Blk. 4DT-EL90B parts are available from DuraVent Corporation, Selkirk 45° Elbow, Blk. 4DT-EL45B Corporation or your Vermont Castings Dealer. 6” Straight, Blk. 4DT-06B 9” Straight, Blk. 4DT-09B See Figure 4 for dimensions relevant to the standard 4”...
  • Page 14 Radiance Direct Vent Gas Heater Twist Lock 12” Straight Pipe (CG) 7TFSDVP12 MHSC Vent Components (1) 1” Non-adjustable Pipe The following kits are available to meet the needs of Twist Lock 12” - 18” Adjustable Pipe 7TFSDVP1218 most installations. All pipe has a 7” outer diameter and (1) 1”...

  • Page 15: Assembly Procedures Tools Required

    Radiance Direct Vent Gas Heater Assembly Procedures WARNING Failure to position the parts in accor- dance with these diagrams or failure to use only parts specifically approved for use with this heater may result in property dam- age or personal injury. This heater and components are heavy.

  • Page 16: Install Optional Fan

    Radiance Direct Vent Gas Heater WARNING This appliance is equipped with a three-prong (grounded) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug. Install the Optional Fan - RADVT Series If you are installing the optional convection Fan Kit #767 (FK6), continue here.

  • Page 17: Venting System Assembly - Direct Vent

    Radiance Direct Vent Gas Heater Venting System Assembly General Information The Radiance is approved for installation only with the vent components listed on Pages 13 and 14. Follow the vent component instructions exactly. For U.S. installations: The venting system must con- form with local codes and/or the current National Fuel Gas Code, ANSI Z3.1/NFPA 54.

  • Page 18: Install Vent Adapter Pipe (Selkirk Corporation Components)

    Radiance Direct Vent Gas Heater minimum of 1Z\x” over the flue outlet. The outside of the Direct-Temp Length will fit inside the flue outlet Inner Adpater Pipe 1/4-0 x Secure with a minimum of two #8 x 1/4” sheet metal 3/8”...
  • Page 19 Radiance Direct Vent Gas Heater 1” (305mm) Sleeve Max. Length #8 Sheet Metal Screws ST15 Fig. 27 Measure the horizontal length. sleeve. Seal the joint inside the wall plate if needed Firestop ZCS103 to keep cold air from being drawn into the home. Fig.

  • Page 20: Vent Termination Below Grade

    Radiance Direct Vent Gas Heater 11. For MHSC only: Install Charcoal Gray Pipe Rings Wall Screws (#7FSDRG) or Polished Brass Pipe Rings (#7FSDRP) and Anchors Waterproof Seal at pipe joints, if desired. Around Pipe Snorkel Firestop Termination Vent Termination Below Grade Install Snorkel Kit #7FSDVSKS when it is not possible to meet the required vent termination clearances of 1”...

  • Page 21: Selkirk Direct-Temp Metalbestos Direct Vent System

    Radiance Direct Vent Gas Heater Selkirk Direct-Temp Metalbestos Direct #7DVAIS Vent System Attic Insulation Shield Installation Instructions 1. Determine whether the length of pipe fits the appli- ance outlet by attempting to engage the parts. If the parts engage smoothly, proceed to Step . If ob- #7DVFS Use Four Firestop in...
  • Page 22 Radiance Direct Vent Gas Heater it by screwing the support plate to the top of the prop- Gasket erly framed ceiling joist opening, using screws provided. A round trim plate (TP) is attached to the ceiling, using screws, to provide a finished appearance once in- Outlet End Inlet End stalled.

  • Page 23: Horizontal Installation

    Radiance Direct Vent Gas Heater The Cathedral Ceiling Support (CCS) may be used in Supporting DIRECT-TEMP: Horizontal Support pitched or flat ceiling installations and comes with a Horizontal runs of Direct-Temp should be supported support collar and a decorative two part square trim every 4’...
  • Page 24 Radiance Direct Vent Gas Heater from traffic areas such as walkways if it is less than 7’ Wall Thimble (.1 m) high. Refer to Pages 11, 1, Figures 11, 1 for Shield more detail. Seal with RTV Silicone Sealant Wall Snorkel Termination on Exterior side Thimble...
  • Page 25 Radiance Direct Vent Gas Heater If the wall is brick or concrete, and contains no com- Vertical Termination bustible material, a 7” (178 mm) round penetration hole is adequate. The wall thimble is not required. The perforated straps of the horizontal termination provide Storm Collar a method of attachment.

  • Page 26: Install Log Set

    Radiance Direct Vent Gas Heater the assembled pipe to the appliance. Determine and NOTE: Whenever DIRECT-TEMP penetrates through a mark the location of where the support collar will be at- ceiling, a floor or a wall, it must be firestopped. tached to the pipe.
  • Page 27 Radiance Direct Vent Gas Heater Rear Log . Install the rear log by plac- ing it on the ember bed Figure 48 toward the back of the firebox. (Fig. 48) The log should touch the back wall of the firebox. When the log is in place, the two () notches on the bottom of the log rest on the two ()

  • Page 28: Connect Gas Supply Line

    5.5” w.c. and maximum of 14.0” w.c. The appliance must only use the gas specified on the rating plate, unless converted using a Vermont Castings In order to connect Propane, use a fitting with 1/2” Fuel Conversion Kit. To convert from Natural Gas to LP NPT on the valve side and 1/2”...

  • Page 29: Install On/Off Switch

    Radiance Direct Vent Gas Heater Thermostat Connection (optional) THIS APPLIANCE SHOULD BE CON- NECTED TO THE GAS SUPPLY ONLY BY Use only a thermostat rated for 500 - 750 millivolts. A QUALIFIED GAS SERVICE TECHNICIAN. FOLLOW ALL LOCAL CODES. Check the table below for the appropriate gauge ther- mostat wire to use for the length of lead required in your THERE MUST BE A GAS SHUT-OFF BE- installation.

  • Page 30: Operation

    Radiance Direct Vent Gas Heater Operation Pilot As- sembly ST476 The Radiance is operated with the front plate in place Fig. 55 Pilot Assembly location. with the doors open or closed. To open the front doors, pull forward to separate the magnetic catch. ST477a Follow regular maintenance procedures as described Stardance...

  • Page 31: Lighting And Operating Instructions

    Radiance Direct Vent Gas Heater Lighting and Operating Instructions FOR YOUR SAFETY READ BEFORE LIGHTING WARNING:If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This heater has a pilot which must be lit manu- •...
  • Page 32 Radiance Direct Vent Gas Heater Troubleshooting the Gas Control System (RADVT Series) SIT NOVA 820 MILLIVOLT VALVE NOTE: Before trouble shooting the gas control system, be sure external gas shut off is in the “On” position. Possible Causes Symptom Corrective Action 1.

  • Page 33: Instructions For Rcsitea

    Radiance Direct Vent Gas Heater Instructions for RCSITEA . The switches on the transmitter and receiver must match in order for the system to work. RADVTCS Series 3. To check, press either the ON or OFF button on the CAUTION: The RCSITEA is only certified for use on transmitter and the receiver indicator light will blink.

  • Page 34: Initial Startup

    Radiance Direct Vent Gas Heater Initial Startup 4. There will be a slight delay in the response of the unit (on/off) to a temperature. Room temperature is Figure 61 monitored every three (3) minutes. 1. After initial power up or °F 5.
  • Page 35 Radiance Direct Vent Gas Heater Transmitter Thermal Shutdown . Use the ON / ▲ button to set the desired On Figure 69 Delay Time from 0 to 15 1. If transmitter measures minutes. a r o o m t e m p e r a t u r e 3.

  • Page 36: Troubleshooting Rcsitea

    Radiance Direct Vent Gas Heater Testing Remote Control System 1. Light the gas appliance following the lighting instruc- tions on Page 31. Confirm the pilot light is on; it must be in operation for the remote control to operate the main gas valve and blower.

  • Page 37: Fuel Conversion Instructions

    Radiance Direct Vent Gas Heater Fuel Conversion Instructions . Allow the valve WARNING! This conversion kit shall be installed to cool to room by a qualified service agency in accordance with temperature. Figure 71 the manufacturer’s instructions and all applicable Figure 3.
  • Page 38 Radiance Direct Vent Gas Heater RADVTCS Series Models . Replace pilot orifice. 3. Remove pilot hood by lifting up. (Fig. 78) Do not 1. Using the TORX T0 bit remove and discard the remove the snap ring to remove the pilot hood. three (3) pressure regulator mounting screws from NOTE: It is not necessary to remove the pilot tube the old pressure regulator assembly.
  • Page 39 Radiance Direct Vent Gas Heater Orifice Orifice Venturi Bracket Bracket Orifice Air Shutter Bracket CO14 Fig. 83 The air shutter setting is 1/” (13 mm) from the orifice Pem Studs ST919 bracket to the edge of the air shutter. Fig. 81 Tilt ember bed slightly to correctly place on venturi All Models and air shutter.
  • Page 40 Radiance Direct Vent Gas Heater Table 2. Injector Orifice Size Matrix Conversion to LP Input (BTU/h) Model Kit # Orifice Part # Minimum Maximum RADVT 00179 1.75 mm 001946 5,000 36,000 RADVTCS 0300165 Conversion to Natural Gas Input (BTU/h) Model Kit # Orifice Part #...

  • Page 41: Maintenance

    Radiance Direct Vent Gas Heater Maintenance Your Radiance Gas Heater will provide years of service Cleaning the Glass with minimal upkeep. The following procedures will help ensure that your stove continues to function properly. WARNING: Allow the glass to cool com- pletely before attempting to clean.

  • Page 42: Gasket Replacement

    - ” (5-50mm). Mark the spot to be cut. Use a utility Do not use your stove if the flame pattern differs from knife. that shown here. Contact your Vermont Castings dealer or a qualified technician for help. 3. Starting on a long edge, remove about 6” of the...

  • Page 43: Wiring Diagrams

    Radiance Direct Vent Gas Heater Wiring Diagrams - RADVT POWER CORD On/Off Switch Wiring TP/TH Millivolt Chassis Gas Valve Ground Black ST14b Thermostat Thermostat (Optional) Optional Thermostat (Optional) Wiring FAN JUNCTION BOX St124b on/off/switch wiring Strain Relief TP/TH 1/11/00 djt ON / OFF Millivolt Rheostat...
  • Page 44 Radiance Direct Vent Gas Heater Wiring Diagrams - RADVTCS Black 120V AC Adapter Black T  H mV Valve Receiver T  P   /   T   H   120V AC Plug Female Male SIT HI / LO 120V AC Valve Blower ST1091 Fig. 90 SIT Hi/Lo blower schematic. ST1090 120V AC Plug for Receiver SIT valve wiring SIT mV Valve...

  • Page 45: Replacement Parts

    MHSC reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without 4967 notice. RADVT/RADVTCS parts 8/09 djt Radiance Direct Vent Gas Heater Models: RADVT Series: RADVTCB, RADVTEB, RADVTBS, RADVTBD, RADVTBM; RADVTCS Series: RADVTCSCB, RADVTCSEB, RADVTCSBS, RADVTCSBD, RADVTCSBM 30004967...
  • Page 46 Radiance Direct Vent Gas Heater Radiance Direct Vent Gas Heater (continued) Models: Models: RADVT Series: RADVTCB, RADVTEB, RADVTBS, RADVTBD, RADVTBM; RADVTCS Series: RADVTCSCB, RADVTCSEB, RADVTCSBS, RADVTCSBD, RADVTCSBM Ref. Description RADVT/RADVTCS Log Set - Complete 001550 Log, Rear 001541 Log, Right Front...
  • Page 47 Radiance Direct Vent Gas Heater Radiance Direct Vent Gas Heater (continued) Models: Models: RADVT Series: RADVTCB, RADVTEB, RADVTBS, RADVTBD, RADVTBM; RADVTCS Series: RADVTCSCB, RADVTCSEB, RADVTCSBS, RADVTCSBD, RADVTCSBM Ref. Description RADVT/RADVTCS Bracket Piezo Ignitor/Control (not shown) 0010876 Manifold Assembly 0010 Air Shutter Assembly...
  • Page 48 Radiance Direct Vent Gas Heater Radiance Direct Vent Gas Heater (continued) Models: Models: RADVT Series: RADVTCB, RADVTEB, RADVTBS, RADVTBD, RADVTBM; RADVTCS Series: RADVTCSCB, RADVTCSEB, RADVTCSBS, RADVTCSBD, RADVTCSBM Shell Enamel Parts - Radiance Direct Vent Enamel Model Left Right Front Left...

  • Page 49: Optional Accessories

    Radiance Direct Vent Gas Heater Optional Accessories Fan Kits - RADVT Series Screen Kit FK26 Fan An optional screen, R40SK, for use with the operable doors is available to allow the doors to be left in the The FK6 fan helps distribute heated air from within open position.
  • Page 50 Radiance Direct Vent Gas Heater 5050 30004967...

  • Page 51: Warranty

    Radiance Direct Vent Gas Heater LIMITED LIFETIME WARRANTY PRODUCT COVERED BY THIS WARRANTY All Vermont Castings brand gas stoves, gas inserts, and gas fireplaces installed in the United States of America or Canada. LIMITED LIFETIME WARRANTY MHSC warrants that all cast iron parts, the combustion chamber, for under the Basic One-Year Warranty.
