Vermont Castings RADVTCB Homeowner's Installation And Operating Manual

Radvt series, radvtcs series direct vent gas heaters
Hide thumbs Also See for RADVTCB:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Homeowner's Installation and Operating Manual
INSTALLER / CONSUMER
SAFETY INFORMATION
PLEASE READ THIS MANUAL
BEFORE INSTALLING AND USING
APPLIANCE.
WARNING!
IF THE INFORMATION IN THIS
MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE OR EXPLOSION
MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL
INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY
Installation and service must be
performed by a qualified installer,
service agency or the gas suppler.
WHAT TO DO IF
YOU SMELL GAS:
•
Do not try to light any appliance.
•
Do not touch any electric switch; do not
use any phone in your building.
•
Immediately call your gas supplier from
your neighbor's phone. Follow the gas
supplier's instructions.
•
If you cannot reach your gas supplier,
call the fire department.
DO NOT STORE OR USE GASOLINE
OR OTHER FLAMMABLE VAPORS
AND LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER APPLIANCE.
This appliance may be installed in an after
market permanently located
manufactured (mobile) home where not
prohibited by local codes.
This appliance is only for use with the type
of gas indicated on the rating plate.
This appliance is not convertible for use
with other gases unless a certified kit is
used.

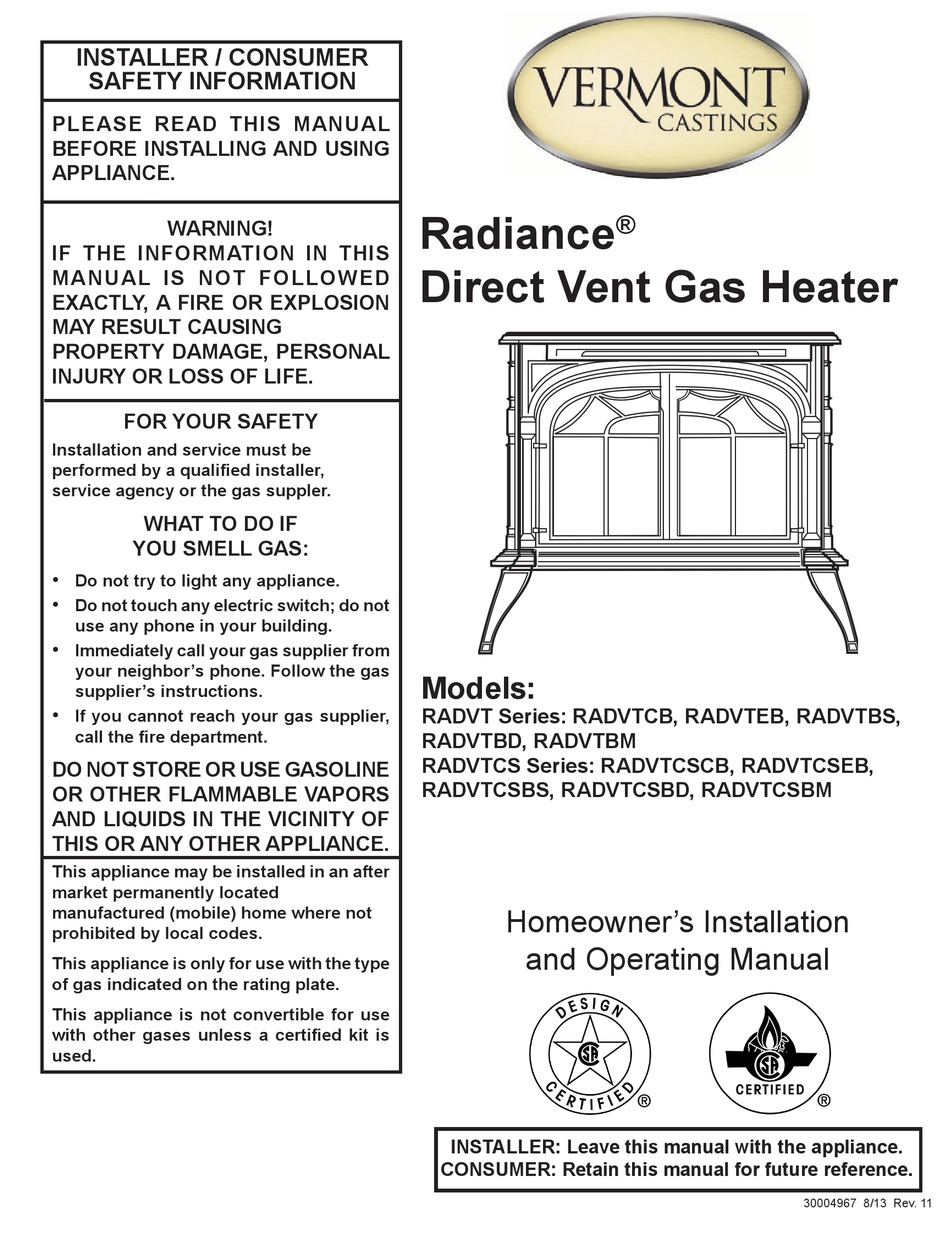

Radiance
Direct Vent Gas Heater
Models:
RADVT Series: RADVTCB, RADVTEB, RADVTBS,
RADVTBD, RADVTBM
RADVTCS Series: RADVTCSCB, RADVTCSEB,
RADVTCSBS, RADVTCSBD, RADVTCSBM
Homeowner's Installation
and Operating Manual
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
®
12697
Radiance cover
7/07
30004967 8/13 Rev. 11

Advertisement

Table of Contents
loading

Related Manuals for Vermont Castings RADVTCB

Summary of Contents for Vermont Castings RADVTCB

  • Page 1 • Immediately call your gas supplier from your neighbor’s phone. Follow the gas Models: supplier’s instructions. • RADVT Series: RADVTCB, RADVTEB, RADVTBS, If you cannot reach your gas supplier, call the fire department. RADVTBD, RADVTBM 12697 RADVTCS Series: RADVTCSCB, RADVTCSEB,...

  • Page 2: Table Of Contents

    Table of Contents PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING APPLIANCE. Thank you and congratulations on your purchase of a Vermont Castings stove. IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible fire hazard and will void the warranty.

  • Page 3: Installation

    Direct Vent Gas Heater ® Installation & Operating Instructions The Radiance Direct Vent Room Heater, Model Nos. RADVTCB, WARNING: Operation of this heater when not connected to a RADVTEB, RADVTBS, RADVTBD, RADVTBM, RADVTCSCB, properly installed and maintained venting system can result RADVTCSEB, RADVTCSBS, RADVTCSBD, RADVTCSBM, is in carbon monoxide (CO) poisoning and possible death.

  • Page 4: Operating Instructions Installation Requirements For The Commonwealth Of Massachusetts

    Radiance ® Direct Vent Gas Heater Installation & Operating Instructions Requirements for the Commonwealth of Inspection Massachusetts The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the All gas fitting and installation of this heater shall only be installation unless, upon inspection, the inspector observes done by a licensed gas fitter or licensed plumber.

  • Page 5: Stove Dimensions

    Radiance Direct Vent Gas Heater ® Radiance Direct Vent Stove Dimensions 7" Outer Dia. 7" Outer Dia. See Page 7 for Flue Collar (178 mm) (178 mm) Centerline Dimensions. 14 " 14 " Supply Inlet Supply Inlet (378 mm) (378 mm) 4 "...

  • Page 6: Installation Requirements

    Radiance ® Direct Vent Gas Heater Installation Requirements The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, Direct Vent System Only ANSI Z3.1/NFPA 54 - latest edition. (EXCEPTION: Do not derate this appliance for altitude.

  • Page 7: Parallel Installation

    Sidewall Clearance Direct Vent 6” (150 mm) Min. Clrnc * needed for installing DuraVent Minimum Vent Kit #79 or Vermont Castings Group Minimum Vent Kit #7TFSMSK. 9/28/00 djt ST101b Fig. 6 Dimensions and clearances to ceiling or alcove. Hearth Requirements The Radiance Heater must be installed on rigid flooring.

  • Page 8: Gas Specifications

    Manifold Pressure 3.5” w.c. 10” w.c. The installation of your Vermont Castings stove must conform with local codes, or in the absence of local codes, with the National Fuel Gas Code ANSI Z3.1/NFPA 54 - latest edition, or CSA B149.1 Installation code. (EX-...

  • Page 9: Vertical Termination

    Radiance Direct Vent Gas Heater ® Restrictor Plate Adjustment Vertical Termination for Extended Pipe Runs A vertical vent system must terminate no less than 8’ (.44 m) and no more than 40’ (1 m) above the appliance flue The Radiance stove is shipped with a restrictor plate in collar.

  • Page 10: Vent Termination Clearances

    Some of the most common clearances to keep in mind are shown in Figure 11. • Vermont Castings Group does not require any open- ing for inspection of vent pipe. Important: All vent clearances must be maintained.

  • Page 11: General Venting Information - Termination Location

    . The special venting system used on Direct Vent Stoves are certified as part of the appliance, with clearances tested and approved by the list- ing agency. 3. Vermont Castings Group assumes no responsibility for the improper performance of the appliance when the venting system does not meet these requirements.

  • Page 12: Termination Clearances

    Radiance ® Direct Vent Gas Heater Termination Clearances Termination clearances for buildings with combustible and noncombustible exteriors. Inside Corner Alcove Applications* Outside Corner Combustible 6" (152 mm) Combustible 6" (152 mm) Noncombustible 2" (51 mm) Noncombustible 2" (51 mm) Balcony - Balcony - with no side wall with perpendicular side wall...

  • Page 13: Venting Requirements And Options

    These parts are 90° Elbow, Blk. 4DT-EL90B available from DuraVent Corporation, Selkirk Corporation 45° Elbow, Blk. 4DT-EL45B or your Vermont Castings Dealer. 6” Straight, Blk. 4DT-06B 9” Straight, Blk. 4DT-09B See Figure 4 for dimensions relevant to the standard mini- 4”...
  • Page 14 ® Direct Vent Gas Heater Twist Lock 12” Straight Pipe (CG) 7TFSDVP12 Vermont Castings Group Vent Components (1) 1” Non-adjustable Pipe The following kits are available to meet the needs of most Twist Lock 12” - 18” Adjustable Pipe 7TFSDVP1218 installations.

  • Page 15: Assembly Procedures Tools Required

    Radiance Direct Vent Gas Heater ® Assembly Procedures WARNING Failure to position the parts in accor- dance with these diagrams or failure to use only parts specifically approved for use with this heater may result in property damage or personal injury. This heater and components are heavy.

  • Page 16: Install Optional Fan

    Radiance ® Direct Vent Gas Heater WARNING This appliance is equipped with a three-prong (grounded) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug. Install the Optional Fan - RADVT Series If you are installing the optional convection Fan Kit #767 (FK6), continue here.

  • Page 17: Venting System Assembly - Direct Vent

    For Canadian installations: The venting system must conform to the current CSA B149.1 installation code. Install the Vent Adapter Pipe (Vermont Castings Group Vent Components) 1. Attach Inner Starter Pipe, (found in the Parts Bag), ST648a to the next section of inner pipe.

  • Page 18: Install Vent Adapter Pipe (Selkirk Corporation Components)

    ST649 size shown in Figure 4. Combustible wall openings must be framed as shown in Figure 4. Fig. 22 DuraVent - install inner adpater pipe. Vermont Castings Group System 9C\,” (40mm) 9C\,” (40mm)
  • Page 19 9. Connect the horizontal pipe to the elbow. Fasten the ST215 ZCS103 wall plate to the pipe with three sheet metal screws. 4. For Vermont Castings Group Vent Pipe only: If nec- measure thru wall Zero Clearance Sleeve essary, measure to determine the vertical length (X) of Slide the trim collar up against the wall plate to cover the &...

  • Page 20: Vent Termination Below Grade

    Radiance ® Direct Vent Gas Heater 11. For Vermont Castings Group only: Install Charcoal Wall Screws Gray Pipe Rings (#7FSDRG) or Polished Brass Pipe Rings and Anchors Waterproof Seal (#7FSDRP) at pipe joints, if desired. Around Pipe Snorkel Firestop Termination...

  • Page 21: Selkirk Direct-Temp Metalbestos Direct Vent System

    Radiance Direct Vent Gas Heater ® Selkirk Direct-Temp Metalbestos #7DVAIS Direct Vent System Attic Insulation Shield Installation Instructions 1. Determine whether the length of pipe fits the appliance outlet by attempting to engage the parts. If the parts engage smoothly, proceed to Step . If obstructions, #7DVFS Use Four Firestop in Up-...
  • Page 22 Radiance ® Direct Vent Gas Heater Gasket A round trim plate (TP) is attached to the ceiling, using screws, to provide a finished appearance once installed. (Fig. 35) Outlet End Inlet End Lock Tab To Termination To Appliance Ceiling Support ST9 Ceiling Support Collar...

  • Page 23: Horizontal Installation

    Radiance Direct Vent Gas Heater ® The Cathedral Ceiling Support (CCS) may be used in Supporting DIRECT-TEMP: Horizontal Support pitched or flat ceiling installations and comes with a sup- Horizontal runs of Direct-Temp should be supported ev- port collar and a decorative two part square trim plate. In- ery 4’...
  • Page 24 Radiance ® Direct Vent Gas Heater less than 7’ (.1 m) high. Refer to Pages 11, 1, Figures Wall Thimble Shield 11, 1 for more detail. Seal with RTV Silicone Sealant Wall Snorkel Termination on Exterior side Thimble here (around Shield perimeter) Window Well...

  • Page 25: Vertical Installation

    Radiance Direct Vent Gas Heater ® equate. The wall thimble is not required. The perforated Vertical Termination straps of the horizontal termination provide a method of attachment. These can either be threaded through the opening or wall thimble (if used) and screwed to the pipe Storm Collar or removed with a pair of tin snips if not used.

  • Page 26: Install Log Set

    Radiance ® Direct Vent Gas Heater cathedral ceiling support box. Install any required offset 1. Using a level, make sure the system is perfectly verti- supports. cal. 11. Add lengths of pipe and firestop as necessary until 13. Slide the flashing, suitable for the roof pitch, down assembly extends to a point above the roof which com- over the pipe protruding through the roof.
  • Page 27 Radiance Direct Vent Gas Heater ® Rear Log . Install the rear log by placing it on the ember bed toward the Figure 48 back of the firebox. (Fig. 48) The log should touch the back wall of the firebox. When the log is in place, the two () notches on the bottom of the log rest on the two () ribs on the back side of...

  • Page 28: Connect Gas Supply Line

    5.5” w.c. and maximum of 14.0” w.c. The appliance must only use the gas specified on the rat- ing plate, unless converted using a Vermont Castings Fuel In order to connect Propane, use a fitting with 1/2” Conversion Kit. To convert from Natural Gas to LP use Kit NPT on the valve side and 1/2”...

  • Page 29: Install On/Off Switch

    Radiance Direct Vent Gas Heater ® Thermostat Connection (optional) THIS APPLIANCE SHOULD BE CONNECTED TO THE GAS SUPPLY ONLY BY A QUALIFIED Use only a thermostat rated for 500 - 750 millivolts. GAS SERVICE TECHNICIAN. FOLLOW ALL LOCAL CODES. Check the table below for the appropriate gauge ther- mostat wire to use for the length of lead required in your THERE MUST BE A GAS SHUT-OFF BETWEEN installation.

  • Page 30: Operation

    Radiance ® Direct Vent Gas Heater Operation Pilot As- sembly ST476 The Radiance is operated with the front plate in place with Fig. 55 Pilot Assembly location. the doors open or closed. To open the front doors, pull forward to separate the magnetic catch. ST477a Follow regular maintenance procedures as described on Stardance...

  • Page 31: Lighting And Operating Instructions

    Radiance Direct Vent Gas Heater ® Lighting and Operating Instructions FOR YOUR SAFETY READ BEFORE LIGHTING WARNING:If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This heater has a pilot which must be lit manually. When C.
  • Page 32 Radiance ® Direct Vent Gas Heater Troubleshooting the Gas Control System (RADVT Series) SIT NOVA 820 MILLIVOLT VALVE NOTE: Before trouble shooting the gas control system, be sure external gas shut off is in the “On” position. Possible Causes Symptom Corrective Action 1.

  • Page 33: Instructions For Rcsitea

    Radiance Direct Vent Gas Heater ® Instructions for RCSITEA 3. To check, press either the ON or OFF button on the transmitter and the receiver indicator light will blink. If RADVTCS Series not, repeat Step . CAUTION: The RCSITEA is only certified for use on vent- 4.
  • Page 34 Radiance ® Direct Vent Gas Heater Initial Startup 4. There will be a slight delay in the response of the unit (on/off) to a temperature. Room temperature is moni- Figure 61 tored every three (3) minutes. 1. After initial power up or 5.
  • Page 35 Radiance Direct Vent Gas Heater ® Transmitter Thermal Shutdown . Use the ON / ▲ button to set the desired On Delay Figure 69 Time from 0 to 15 min- 1. If transmitter measures a utes. room temperature exceed- 3. Use the OFF / ▼ button to ing 99°...

  • Page 36: Troubleshooting Rcsitea

    Radiance ® Direct Vent Gas Heater Testing Remote Control System 1. Light the gas appliance following the lighting instruc- tions on Page 31. Confirm the pilot light is on; it must be in operation for the remote control to operate the main gas valve and blower.

  • Page 37: Fuel Conversion Instructions

    Radiance Direct Vent Gas Heater ® Fuel Conversion Instructions . Allow the valve to WARNING! This conversion kit shall be installed cool to room tem- by a qualified service agency in accordance with perature. Figure 71 the manufacturer’s instructions and all applicable Figure 3.
  • Page 38 Radiance ® Direct Vent Gas Heater RADVTCS Series Models . Replace pilot orifice. 3. Remove pilot hood by lifting up. (Fig. 78) Do not remove 1. Using the TORX T0 bit remove and discard the three the snap ring to remove the pilot hood. NOTE: It is not (3) pressure regulator mounting screws from the old necessary to remove the pilot tube for conversion.
  • Page 39 Radiance Direct Vent Gas Heater ® Orifice Orifice Venturi Bracket Bracket Orifice Air Shutter Bracket CO14 Fig. 83 The air shutter setting is 1/” (13 mm) from the orifice Pem Studs ST919 bracket to the edge of the air shutter. Fig.
  • Page 40 Radiance ® Direct Vent Gas Heater Table 2. Injector Orifice Size Matrix Conversion to LP Input (BTU/h) Model Kit # Orifice Part # Minimum Maximum RADVT 00179 1.75 mm 001946 5,000 36,000 RADVTCS 0300165 Conversion to Natural Gas Input (BTU/h) Model Kit # Orifice...

  • Page 41: Maintenance

    6. Replace the glass panel and frame assembly. Glass Replacement 7. Replace the Stove Front. Replace glass only with Vermont Castings Group approved parts. Refer to Page 44 for Replacement Parts. Refer to Care of Cast Iron Figure 84 and previous instructions for removal of the An occasional dusting with a dry rag will help keep the damaged glass frame.

  • Page 42: Gasket Replacement

    Do not use your stove if the flame pattern differs from that tive paper strip and apply the flat adhesive face of the shown here. Contact your Vermont Castings dealer or a gasket around the outside-facing edge of the panel.

  • Page 43: Wiring Diagrams

    Radiance Direct Vent Gas Heater ® Wiring Diagrams - RADVT POWER CORD On/Off Switch Wiring TP/TH Millivolt Gas Valve Chassis Ground Black ST14b Thermostat Thermostat (Optional) Optional Thermostat (Optional) Wiring FAN JUNCTION BOX St124b on/off/switch wiring Strain Relief TP/TH 1/11/00 djt ON / OFF Millivolt Rheostat...
  • Page 44 Radiance ® Direct Vent Gas Heater Wiring Diagrams - RADVTCS Black 120V AC Adapter Black T  H mV Valve Receiver T  P   /   T   H   120V AC Plug Female Male SIT HI / LO 120V AC Valve Blower ST1091 Fig. 90 SIT Hi/Lo blower schematic. ST1090 120V AC Plug for Receiver SIT valve wiring...

  • Page 45: Replacement Parts

    29 30 27a,b 34a,b 26a,b 35a,b,c Vermont Castings Group reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. 4967 RADVT/RADVTCS parts Radiance Direct Vent Gas Heater 8/09 djt Models: RADVT Series: RADVTCB, RADVTEB, RADVTBS, RADVTBD, RADVTBM;...
  • Page 46 Radiance ® Direct Vent Gas Heater Radiance Direct Vent Gas Heater (continued) Models: RADVT Series: RADVTCB, RADVTEB, RADVTBS, RADVTBD, RADVTBM; RADVTCS Series: RADVTCSCB, RADVTCSEB, RADVTCSBS, RADVTCSBD, RADVTCSBM Ref. Description RADVT/RADVTCS Log Set - Complete 001550 Log, Rear 001541 Log, Right Front...
  • Page 47 Radiance Direct Vent Gas Heater ® Radiance Direct Vent Gas Heater (continued) Models: RADVT Series: RADVTCB, RADVTEB, RADVTBS, RADVTBD, RADVTBM; RADVTCS Series: RADVTCSCB, RADVTCSEB, RADVTCSBS, RADVTCSBD, RADVTCSBM Ref. Description RADVT/RADVTCS Ignitor Piezo w/ Nut SIT 057958 Bracket Piezo Ignitor/Control (not shown)
  • Page 48 Radiance ® Direct Vent Gas Heater Radiance Direct Vent Gas Heater (continued) Models: RADVT Series: RADVTCB, RADVTEB, RADVTBS, RADVTBD, RADVTBM; RADVTCS Series: RADVTCSCB, RADVTCSEB, RADVTCSBS, RADVTCSBD, RADVTCSBM Shell Enamel Parts - Radiance Direct Vent Enamel Model Left Right Front Left...

  • Page 49: Optional Accessories

    Radiance Direct Vent Gas Heater ® Optional Accessories Fan Kits - RADVT Series Screen Kit FK26 Fan An optional screen, R40SK, for use with the operable doors is available to allow the doors to be left in the open The FK6 fan helps distribute heated air from within the position.
  • Page 50 Radiance ® Direct Vent Gas Heater 5050 30004967...

  • Page 51: Warranty

    Direct Vent Gas Heater LIMITED LIFETIME WARRANTY PRODUCT COVERED BY THIS WARRANTY All Vermont Castings brand gas stoves, gas inserts, and gas fireplaces installed in the United States of America or Canada. LIMITED LIFETIME WARRANTY Vermont Castings Group warrants that all cast iron parts, the •...
  • Page 52 RADVT Series 66.0 68.4 RADVTCS Series 66.0 68.4 Recherchez dans la brochure les caractéristique de rendement énergétique de foyer au gaz Énerguide Based on CSA P.4.1-09 Selon CSA P.4.1-09 Vermont Castings Group 149 Cleveland Drive • Paris, Kentucky 40361 www.vermontcastingsgroup.com...
