INFORMATION!
For further long distance remote operation with the HM-157
or HM-162, the optional extension cable, OPC-999 or OPC-
1541, is available. (6 m: 20 ft) Connect the extension cable
between the transceiver and the connection cable. Up to two
extension cables can be connected.
• OPC-999 : For the HM-157
• OPC-1541 : For the HM-162
Do not connect the HM-157 to the OPC-1541, or the HM-
162 to the OPC-999.

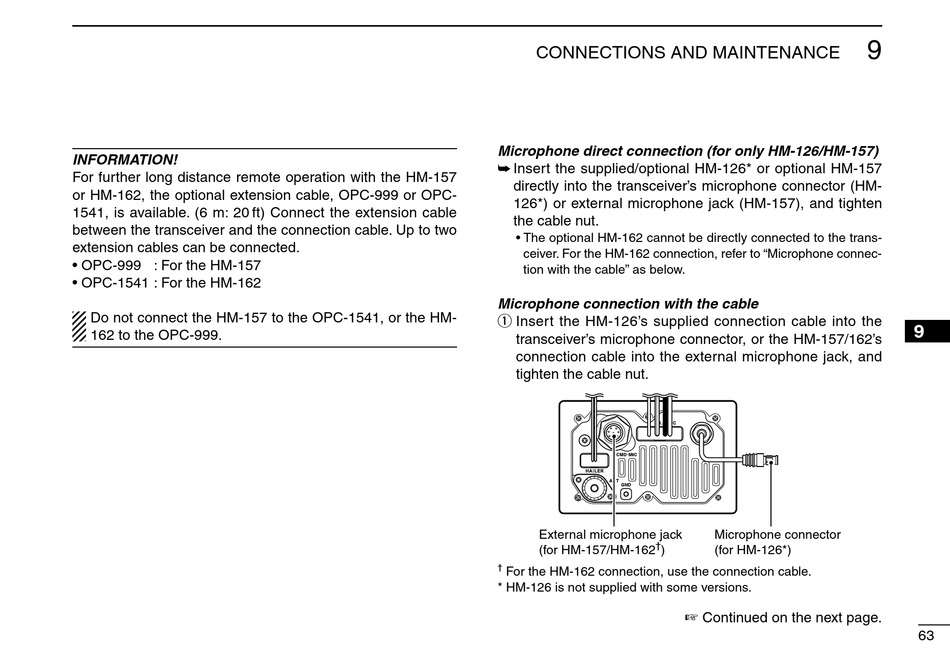

CONNECTIONS AND MAINTENANCE
Microphone direct connection (for only HM-126/HM-157)
➥ Insert the supplied/optional HM-126* or optional HM-157
directly into the transceiver's microphone connector (HM-
126*) or external microphone jack (HM-157), and tighten
the cable nut.
• The optional HM-162 cannot be directly connected to the trans-
ceiver. For the HM-162 connection, refer to "Microphone connec-
tion with the cable" as below.
Microphone connection with the cable
q Insert the HM-126's supplied connection cable into the
transceiver's microphone connector, or the HM-157/162's
connection cable into the external microphone jack, and
tighten the cable nut.
External microphone jack
†
(for HM-157/HM-162
)
†
For the HM-162 connection, use the connection cable.
* HM-126 is not supplied with some versions.
Microphone connector
(for HM-126*)
☞ Continued on the next page.
