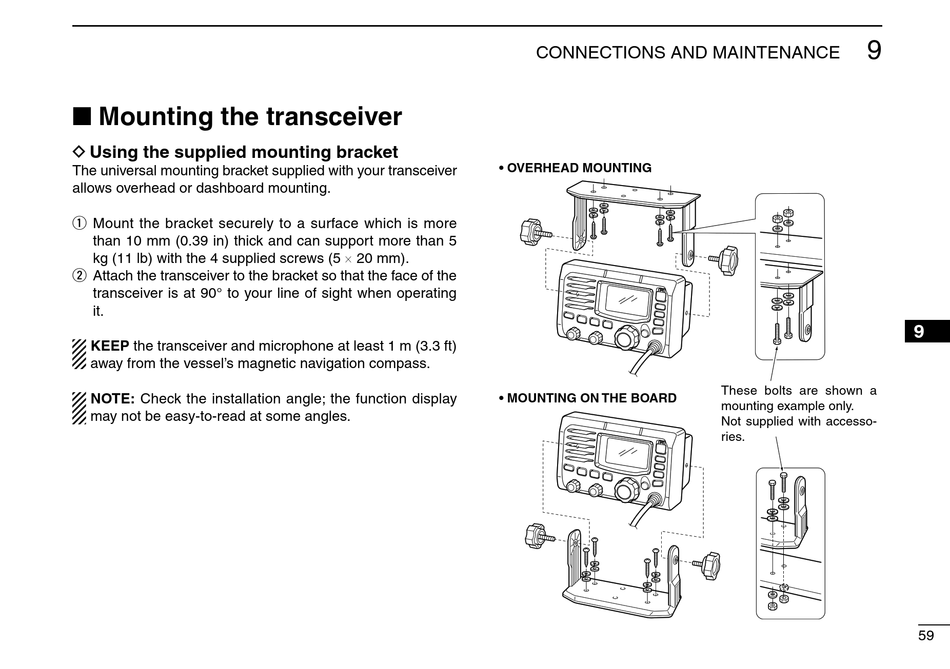

■ Mounting the transceiver
D Using the supplied mounting bracket
The universal mounting bracket supplied with your transceiver
allows overhead or dashboard mounting.
q Mount the bracket securely to a surface which is more
than 10 mm (0.39 in) thick and can support more than 5
kg (11 lb) with the 4 supplied screws (5 × 20 mm).
w Attach the transceiver to the bracket so that the face of the
transceiver is at 90° to your line of sight when operating
it.
KEEP the transceiver and microphone at least 1 m (3.3 ft)
away from the vessel's magnetic navigation compass.
NOTE: Check the installation angle; the function display
may not be easy-to-read at some angles.
CONNECTIONS AND MAINTENANCE
• OVERHEAD MOUNTING
• MOUNTING ON THE BOARD
9
These bolts are shown a
mounting example only.
Not supplied with accesso-
ries.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
59
