4

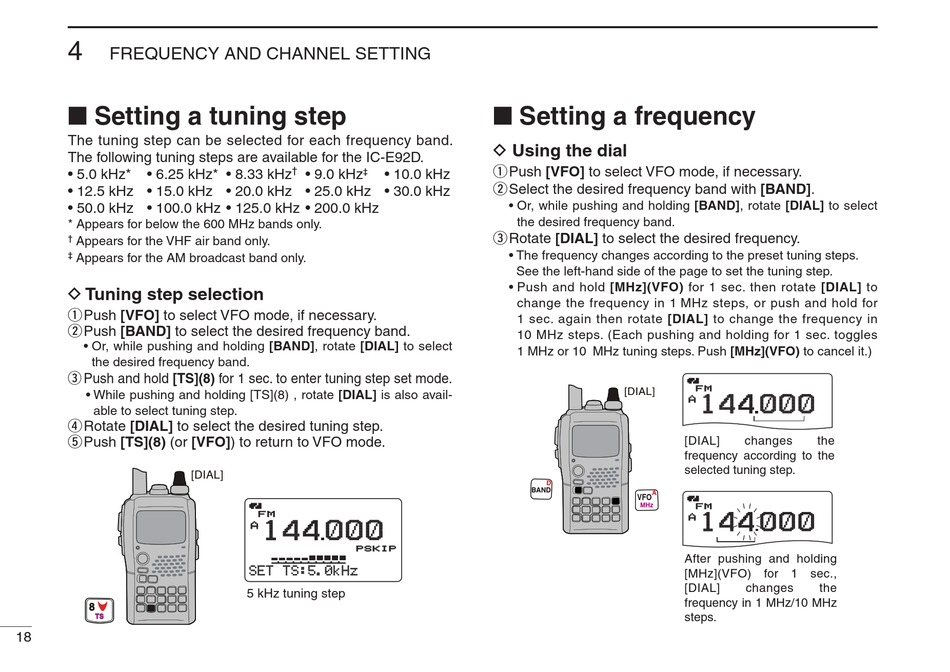

FREQUENCY AND CHANNEL SETTING

■ Setting a tuning step

The tuning step can be selected for each frequency band.
The following tuning steps are available for the IC-E92D.
• 5.0 kHz* • 6.25 kHz* • 8.33 kHz
• 12.5 kHz • 15.0 kHz • 20.0 kHz • 25.0 kHz • 30.0 kHz
• 50.0 kHz • 100.0 kHz • 125.0 kHz • 200.0 kHz
* Appears for below the 600 MHz bands only.
†
Appears for the VHF air band only.
‡
Appears for the AM broadcast band only.
D Tuning step selection
q Push [VFO] to select VFO mode, if necessary.
w Push [BAND] to select the desired frequency band.
• Or, while pushing and holding [BAND], rotate [DIAL] to select
the desired frequency band.
e Push and hold [TS](8) for 1 sec. to enter tuning step set mode.
• While pushing and holding [TS](8) , rotate [DIAL] is also avail-
able to select tuning step.
r Rotate [DIAL] to select the desired tuning step.
t Push [TS](8) (or [VFO]) to return to VFO mode.
[DIAL]
8
TS
18
†
• 9.0 kHz ‡ • 10.0 kHz
+DUP +DUP DTCS DTCS
FM FM PRIO WX PRIO WX EMR EMR
14 144 000 000
25 25
A A
PSKIP PSKIP
µ 000 000
SET SET-TS:5.0kHz TS:5.0kHz
5 kHz tuning step

■ Setting a frequency

D Using the dial
q Push [VFO] to select VFO mode, if necessary.
w Select the desired frequency band with [BAND].
• Or, while pushing and holding [BAND], rotate [DIAL] to select
the desired frequency band.
e Rotate [DIAL] to select the desired frequency.
• The frequency changes according to the preset tuning steps.
See the left-hand side of the page to set the tuning step.
• Push and hold [MHz](VFO) for 1 sec. then rotate [DIAL] to
change the frequency in 1 MHz steps, or push and hold for
1 sec. again then rotate [DIAL] to change the frequency in
10 MHz steps. (Each pushing and holding for 1 sec. toggles
1 MHz or 10 MHz tuning steps. Push [MHz](VFO) to cancel it.)
[DIAL]
D
BAND
A
VFO
MHz
+DUP +DUP DTCS DTCS
FM FM PRIO PRIO WX WX EMR EMR
14 144 000 000
25 25
A A
[DIAL] changes the
frequency according to the
selected tuning step.
+DUP +DUP DTCS DTCS
FM FM PRIO PRIO WX WX EMR EMR
144 000 14 000
25 25
A
After pushing and holding
[MHz](VFO) for 1 sec.,
[DIAL] changes the
frequency in 1 MHz/10 MHz
steps.
