Setting The Tuning Step; Setting The Frequency; Tuning Step Selection - Icom IC-T70A Instruction Manual

4
BASIC OPERATION

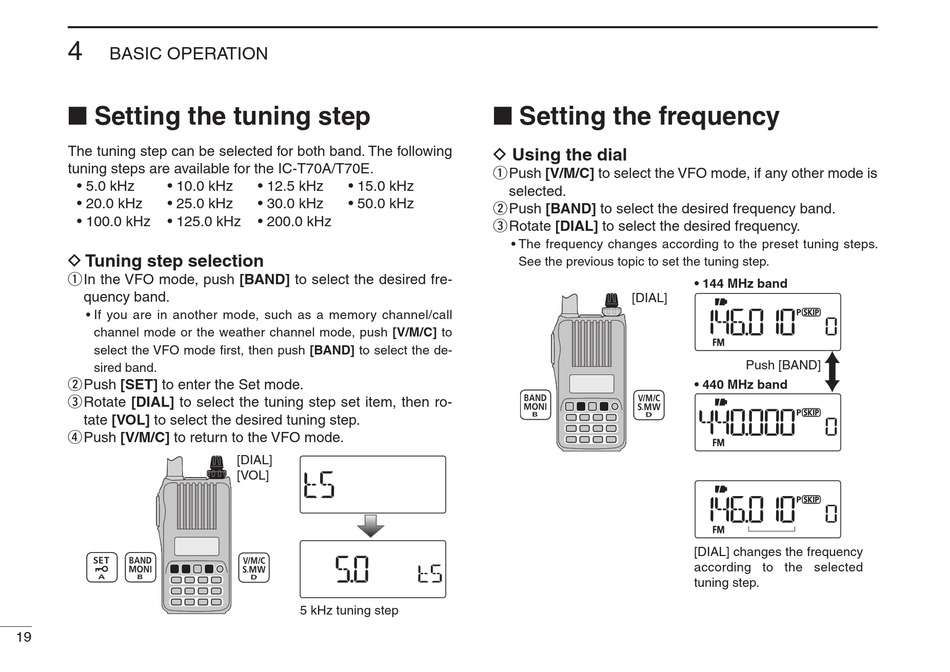

■ Setting the tuning step

The tuning step can be selected for both band. The following
tuning steps are available for the IC-T70A/T70E.
• 5.0 kHz • 10.0 kHz
• 20.0 kHz • 25.0 kHz
• 100.0 kHz • 125.0 kHz
D Tuning step selection
q In the VFO mode, push [BAND] to select the desired fre-
quency band.
• If you are in another mode, such as a memory channel/call
channel mode or the weather channel mode, push [V/M/C] to
select the VFO mode first, then push [BAND] to select the de-
sired band.
w Push [SET] to enter the Set mode.
e Rotate [DIAL] to select the tuning step set item, then ro-
tate [VOL] to select the desired tuning step.
r Push [V/M/C] to return to the VFO mode.
19
• 12.5 kHz • 15.0 kHz
• 30.0 kHz • 50.0 kHz
• 200.0 kHz
[DIAL]
[VOL]
5 kHz tuning step

■ Setting the frequency

D Using the dial
q Push [V/M/C] to select the VFO mode, if any other mode is
selected.
w Push [BAND] to select the desired frequency band.
e Rotate [DIAL] to select the desired frequency.
• The frequency changes according to the preset tuning steps.
See the previous topic to set the tuning step.
[DIAL]
• 144 MHz band
Push [BAND]
• 440 MHz band
[DIAL] changes the frequency
according to the selected
tuning step.
