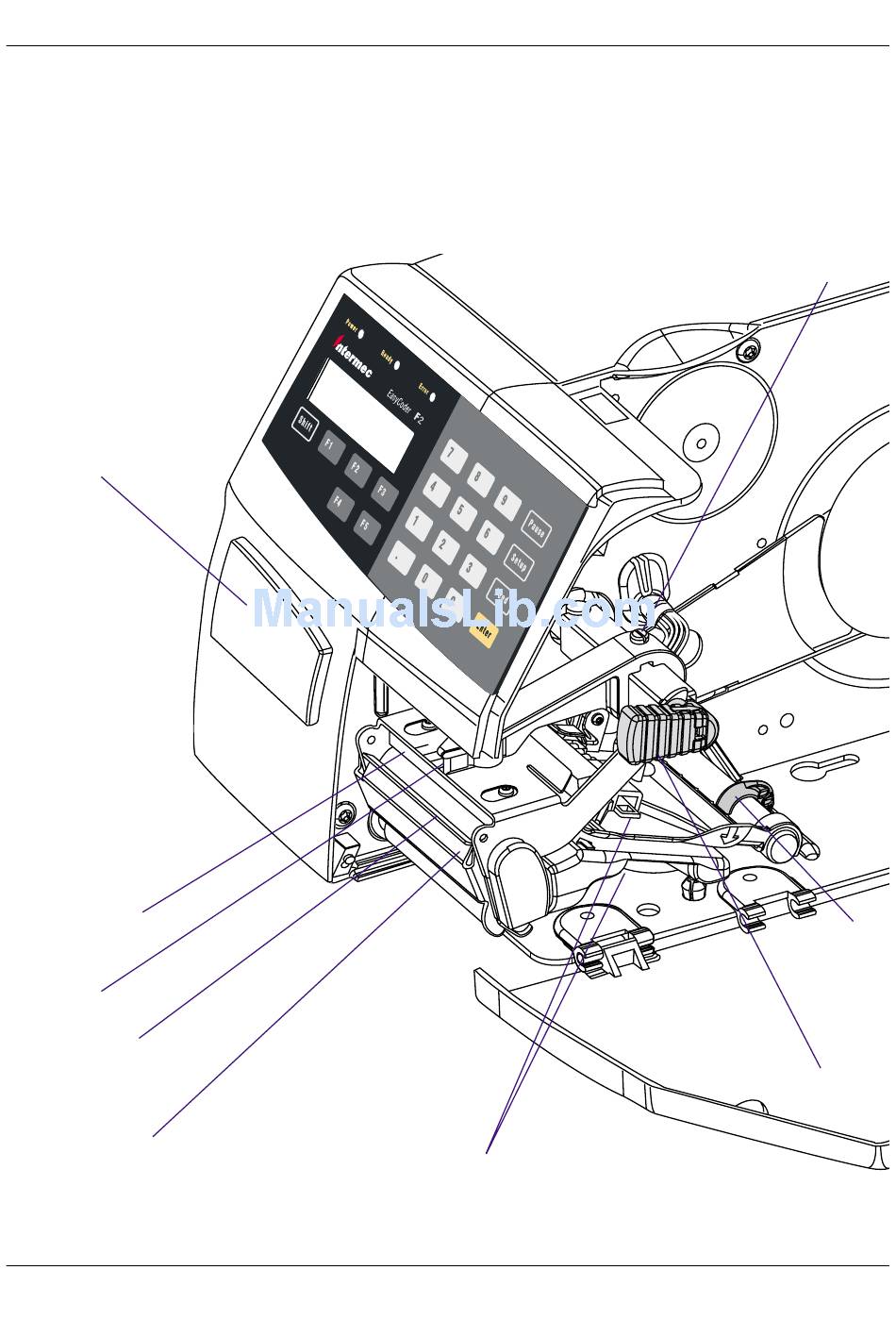

Print Mechanism

Feed button
Thermal Printhead
Pressure Arm
Tear Bar
Platen Roller
14
The print mechanism features a high-performance 8 dot/mm
(203.2 dots/inch) thermal printhead with quick-mount fi ttings
to facilitate replacement. Refer to Chapter 5 "Thermal Transfer
Printing" and Chapter 8 "Options" for illustrations of the ther-
mal transfer mechanism, which is partly integrated with the print
mechanism.
Label Stop Sensor
Position Adjustment
(hidden)
Intermec EasyCoder F2 – User's Guide
Locking Screw
Edge Guide
Printhead Lift Lever
