External Supply (Fan-fold)
1

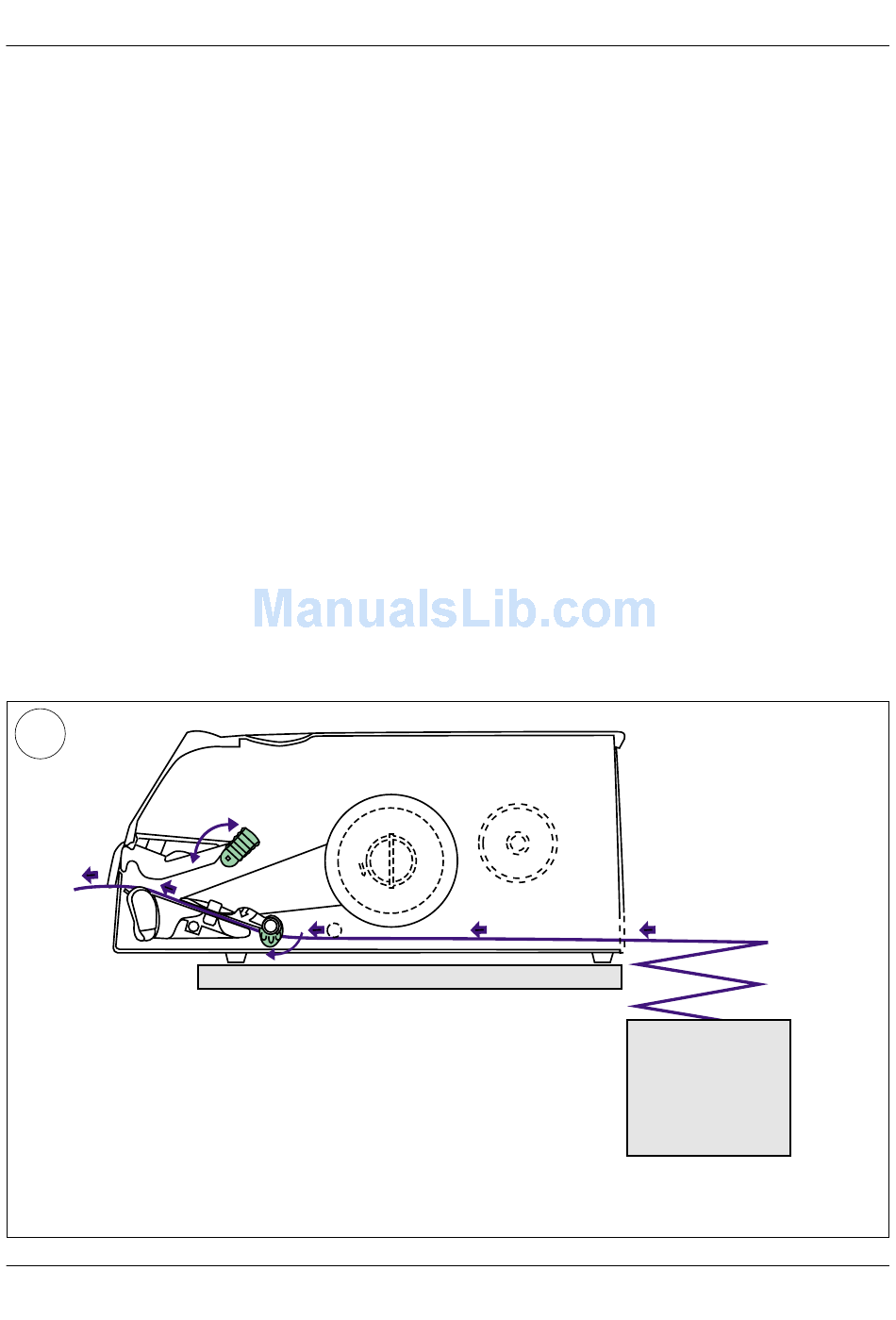

This diagram shows the media path from an external supply. In case of the standard edge guide (as opposed
Intermec EasyCoder F2 – User's Guide
The EasyCoder F2 can print on labels, tickets, tags, and con-
tinuous stock in various forms. This section describes the case
the media supply is placed behind the printer, usually in the
form of fanfolded tickets or tags. External supply can be used
with tear-off (straight-through) printing–preferably with Quick-
Load.
External supply can be used with both short and long side doors
and there is no need to remove the media supply roll post.
When using an external media supply, take care to protect the
media from dust, dirt or other foreign particles, that can impair
the printout quality or cause unnecessary wear to the printhead.
Depending on brand and quality, all direct thermal media are
more or less sensitive to heat, direct sunlight, moisture, oil,
plasticizers, fat, and other substances. You should protect them
accordingly.
to Quick-Load guides), turn it to vertical position.
Chapter 4
Media Load
29
