Control Tab

Use the
and the Global Presets page (click the

Set and View Ties Page

On the Set and View Ties page, you can create and undo ties, mute and unmute outputs,
and assign EDID values to inputs (see figure 115). To access the Set and View Ties page,
select the

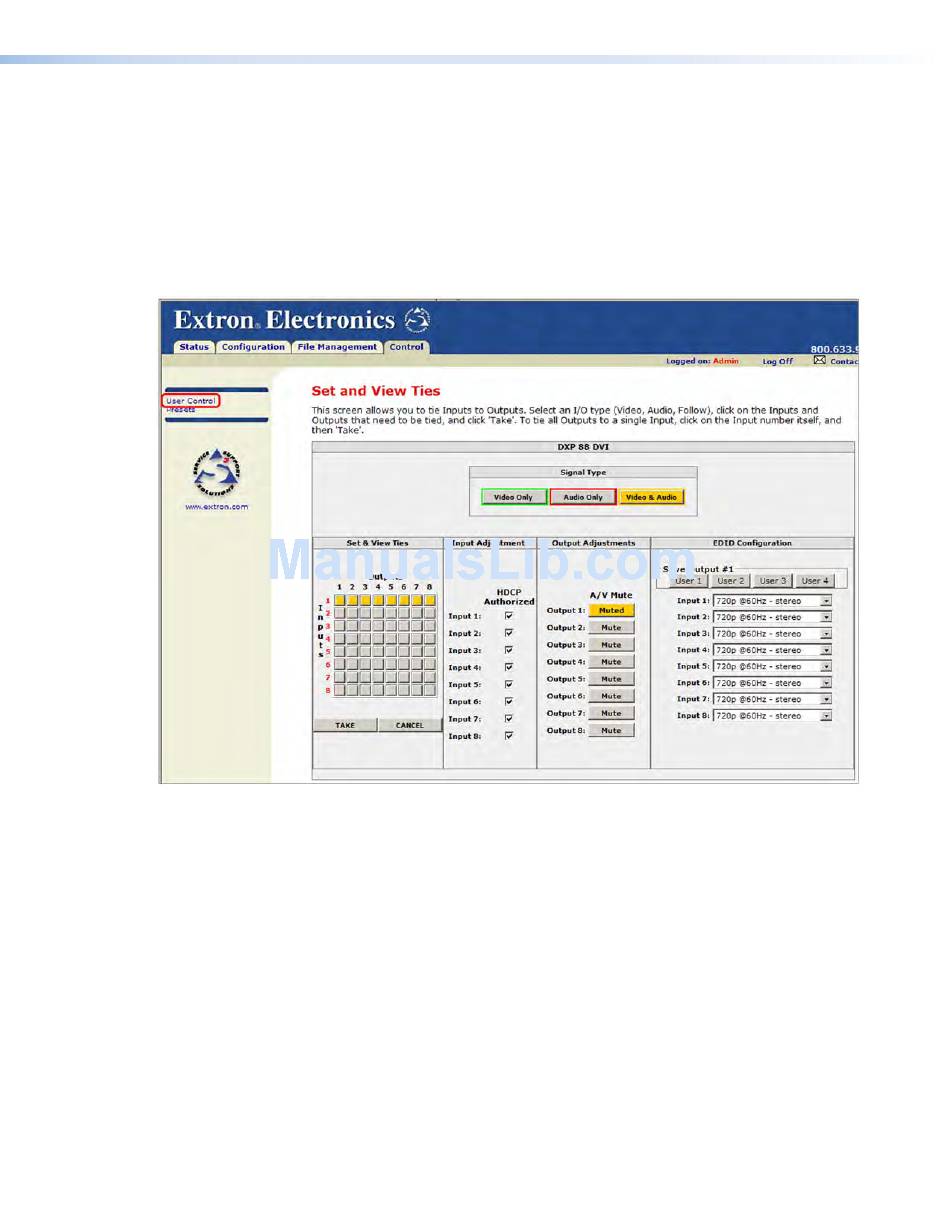

Figure 115.
The Set and View Ties screen consists of the following major sections:
•
tab to access the Set and View Ties page (click the
Control
tab, then click
Control
Set and View Ties Page
Set & View Ties — Consists of a matrix of input (rows) and output (columns)
selection buttons.
To create a tie using this screen:
1.
Move the mouse over the matrix of input and output selection buttons. Click on
a square to create a preliminary tie of the input and output associated with that
button (if they are not already tied) or a preliminary untie (if the input and output
are tied). A " " (for preliminary) appears on the button.
P
If you lose track of the input and output associated with a specific button, let
•
the mouse rest over one of the tie buttons for a moment. A field pops up (as
shown in figure 116
that button.
DXP DVI, DXP DVI Pro, and DXP HDMI Series • HTML Operation
link).
Presets
in the left sidebar menu.
User Control
on the next page) that identifies the input and output for
User Control link)
119
