Windows® Control Software • Chapter 4

Loading Projector Drivers

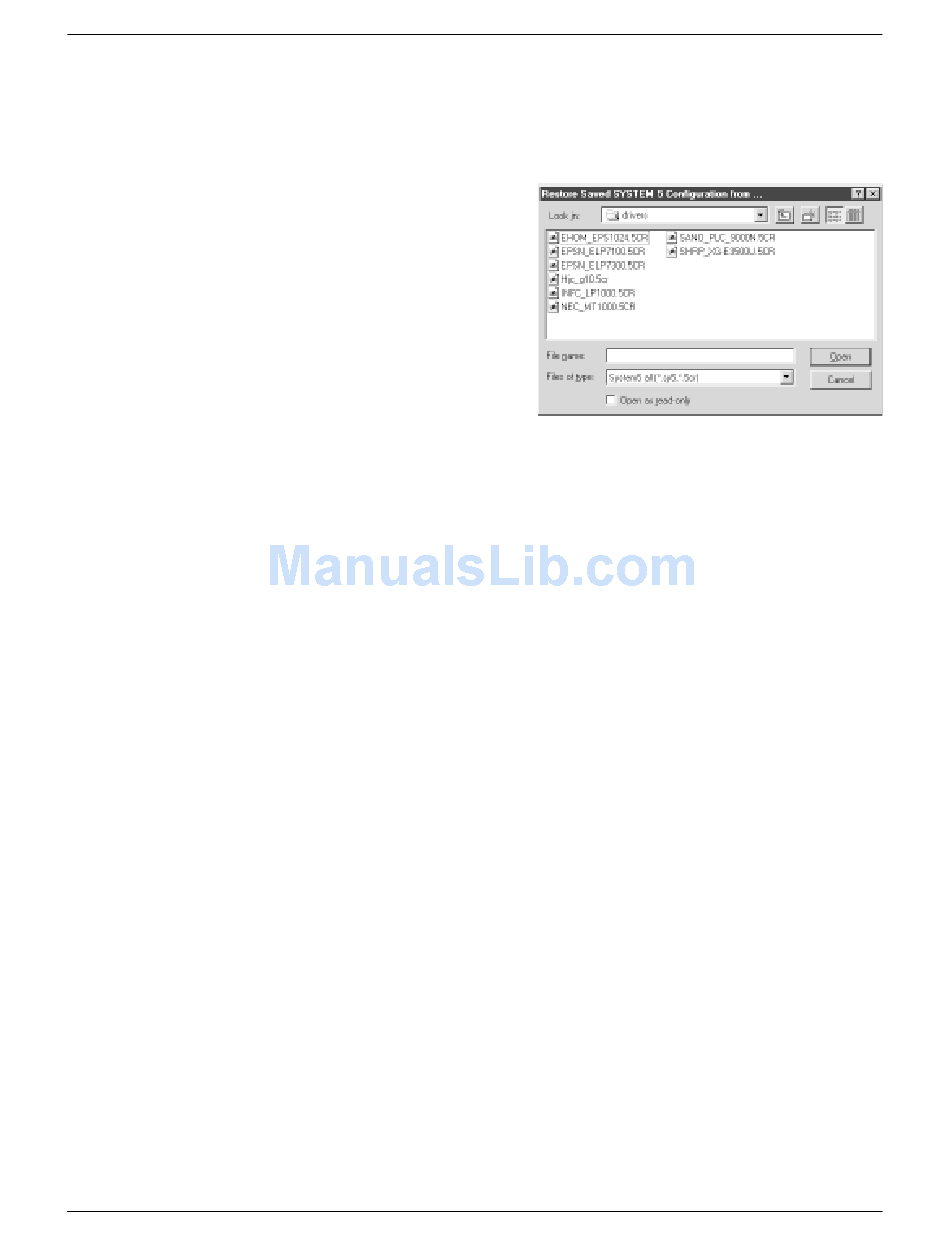

Figure 4-8. Example of the Drivers Folder containing Projector drivers, with IR codes.
4-5
A sub-folder under the System 5 folder is used to store the user's library
of projector drivers.
To view which commands are in a particular driver, without loading it,
launch the System 5 control software in Emulation Mode (instead of
selecting a Comm port). You
will be asked to select from a
list of drivers. Double-click
the Drivers folder to open it
and select a projector. Each
driver (.5cr) loads the IR
commands for that projector
into the System 5 memory.
During normal operation,
certain System 5 functions
will send out associated IR
signals to the projector.
Another example for using this folder would be to load the driver for a
different projector. This could be the user's own driver library.
Downloading from Extron's web library is explained on page 4-4.
Extron • System 5 cr Switcher • User's Manual
